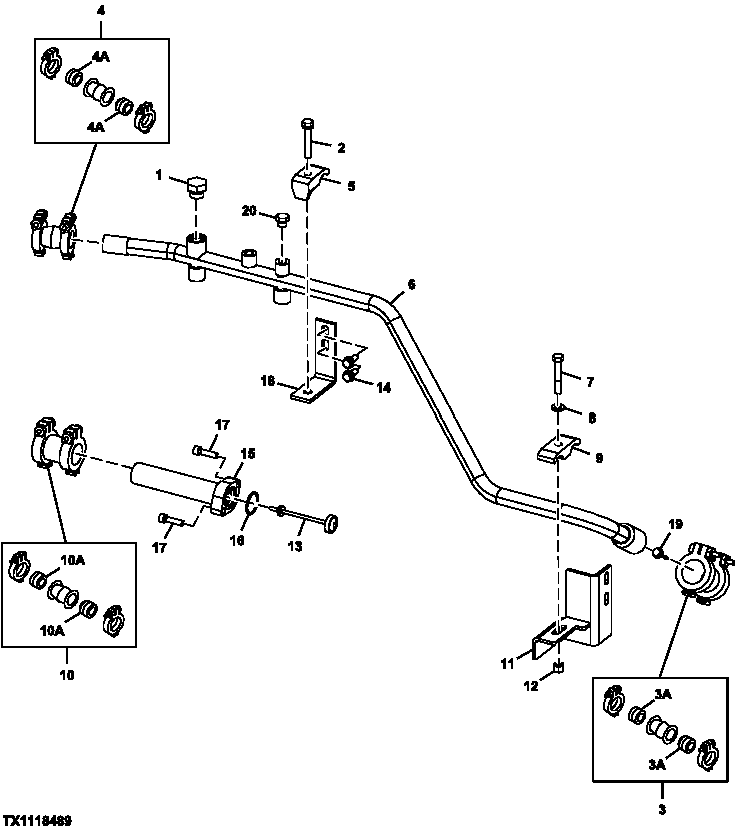

Запчасти John Deere 20C 226 - RETURN LINES (CONTROL VALVE AND OIL COOLER TO OIL TANK) 3363 LINES, HOSES & FITTINGS

1

A885006

Plug

1шт.

2

19M7753

Cap Screw

M12 X 70

1шт.

3

4067834

Coupling

1шт.

3A

4196260

Seal

NLA, ORDER 4067834

2шт.

4

4071213

Coupling

SUB FOR FXV00000005

1шт.

4A

Coupling

4196258 NLA

2шт.

5

4190127

Clamp

1шт.

6

AP37555

Line

Oil Tank To Oil Cooler

1шт.

7

19M8088

Cap Screw

M12 X 75

1шт.

8

24M7240

Washer

13 X 25 X 3 mm

1шт.

9

4189860

Clamp

1шт.

10

4069801

Coupling

SUB FOR 4712341, AND 4196259

1шт.

10A

4196259

Seal

NLA, ORDER 4069801

2шт.

11

DH400683

Bracket

1шт.

12

14M7168

Lock Nut

M12

1шт.

13

4266481

Flow Control Hyd. Valve

1шт.

14

19M7550

Cap Screw

M10 X 35

2шт.

15

8064356

Line

Oil Tank To Control Valve SUB FOR AP33538

1шт.

16

A811040

O-Ring

1шт.

17

L159272

Screw

SUB FOR J781040

2шт.

18

DH800115

Bracket

1шт.

19

4276584

Flow Control Hyd. Valve

1шт.

20

A885003

Pipe Plug

1шт.

4297380

O-Ring

SUB FOR 4622346

1шт.
