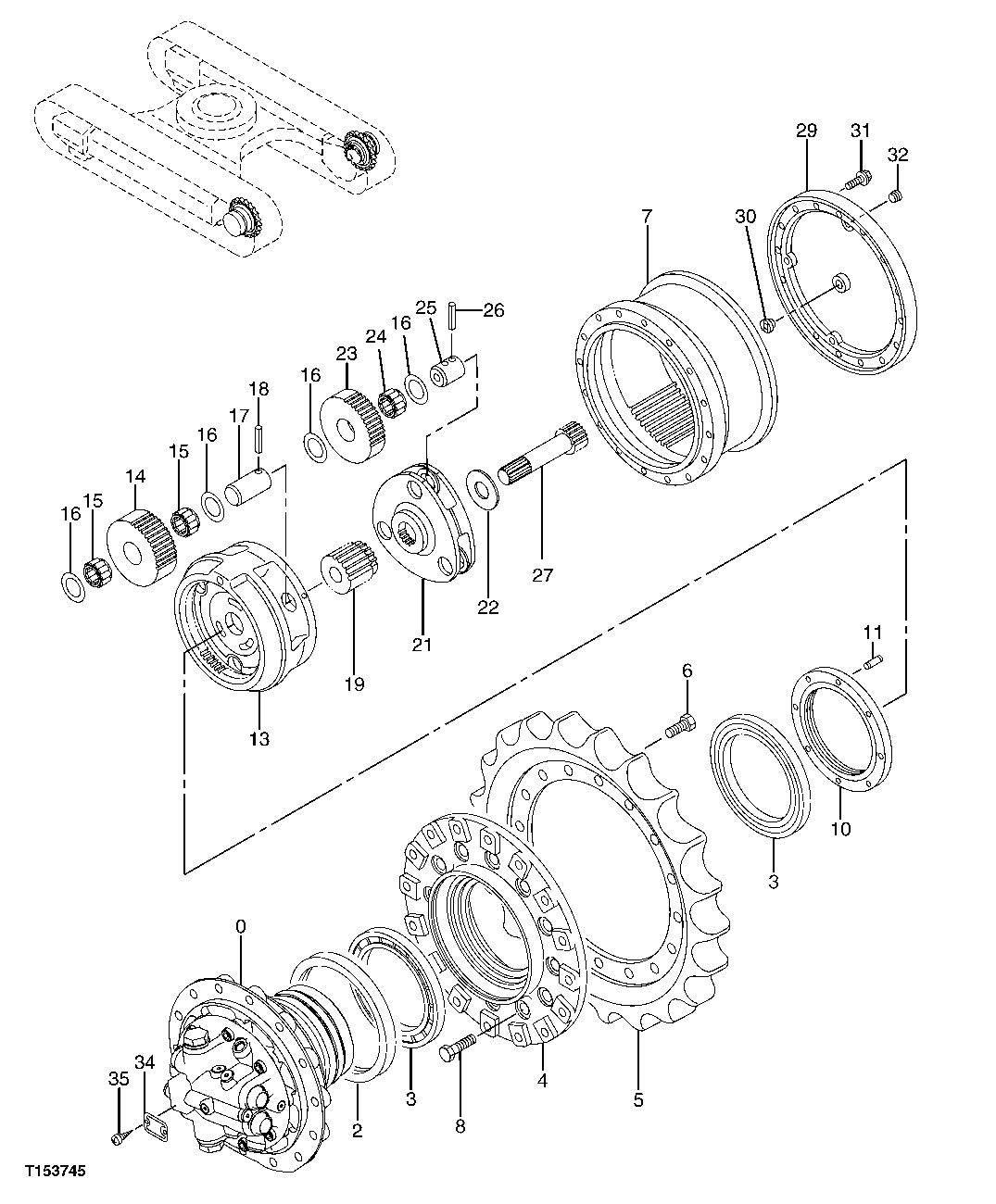

Запчасти John Deere 20C 11 - PROPEL GEARBOX COMPONENTS 0260 AXLES, DIFFERENTIAL & SUSPENSION SYSTEM HYDRAULICS (INCLUDING FWD)

0

9196238

Hydraulic Motor

NLA, (ORDER 9196238EX)

1шт.

9196238EX

Hydraulic Motor Reman

(REMAN FOR 9196238)

1шт.

2

AT154151

Seal

(SUB FOR 4110369)

1шт.

3

4321887

Tapered Roller Bearing

2шт.

4

1016125

Drum

1шт.

5

Chain Sprocket

(ORDER AT316098 DURA-TRAX™ DIRECT) (WH OLEGOODS) (SUB FOR TH108826 OR 1010325)

1шт.

6

J931640

Cap Screw

16шт.

7

1027082

Gear

1шт.

8

J931660

Cap Screw

16шт.

10

3085728

Nut

1шт.

11

4436242

Pin Fastener

1шт.

13

1027076

Planet Pinion Carrier

1шт.

14

3085566

Gear

3шт.

15

4354289

Needle Bearing

(SUB FOR 4442789)

6шт.

16

4192982

Plate

12шт.

17

4245966

Pin

3шт.

18

4144020

Spring Pin

3шт.

19

3085569

Gear

1шт.

21

2043774

Planet Pinion Carrier

1шт.

22

4418771

Spacer

1шт.

23

3085568

Gear

3шт.

24

4354278

Needle Bearing

(SUB FOR 4442788)

3шт.

25

4178203

Bushing

3шт.

26

4192020

Spring Pin

3шт.

27

2043769

Shaft

1шт.

29

2028800

Cover

1шт.

30

4631350

Pin

(SUB FOR 4258916)

1шт.

31

19M8011

Cap Screw

M12 X 30 (SUB FOR J011230)

12шт.

32

94-2013

Fitting Plug

(SUB FOR 4245797)

3шт.

34

3053559

Label

1шт.

35

37H99

Screw

0.100" X 1/4"

2шт.

42

AT154148

Hub

2шт.
