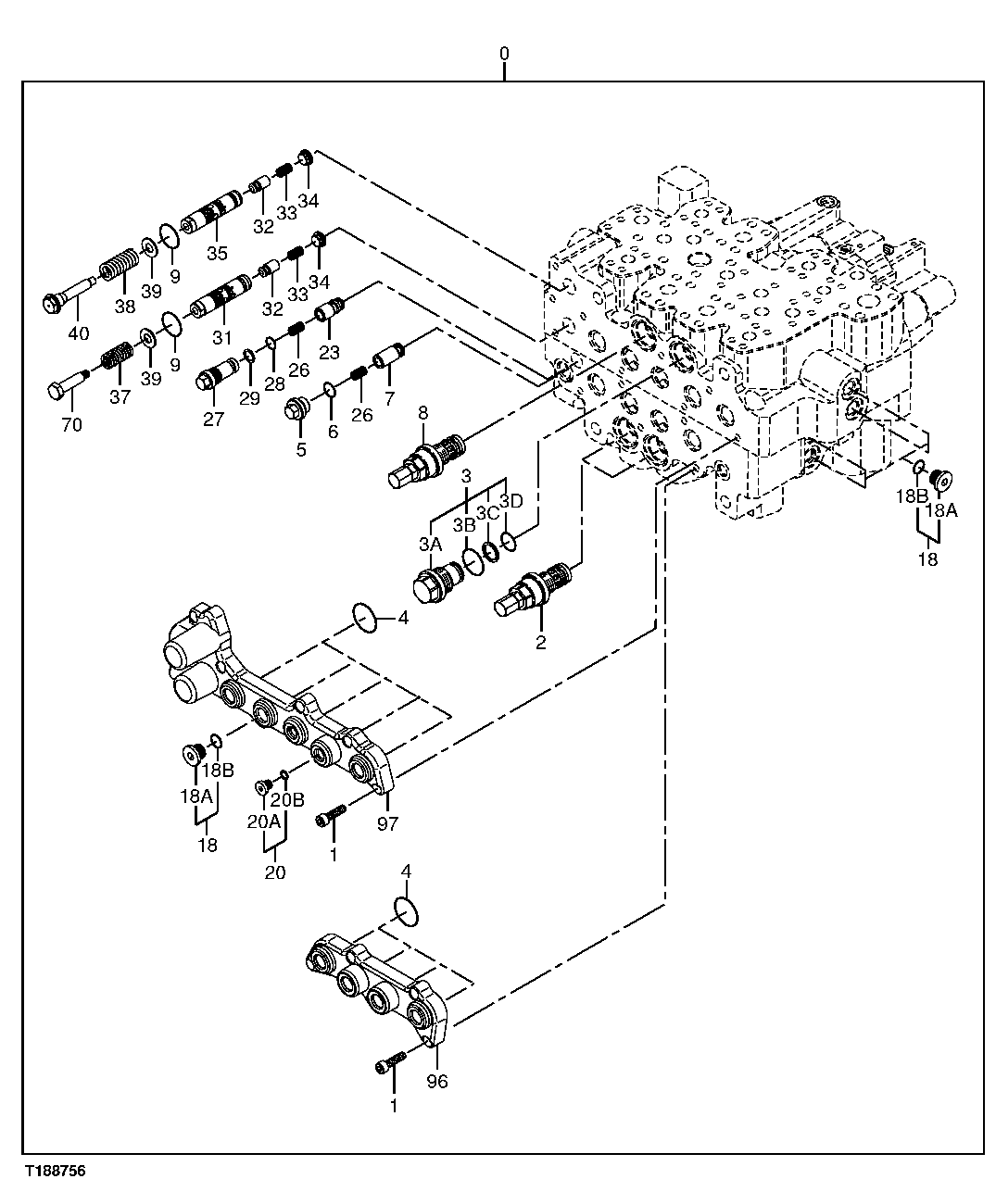

Запчасти John Deere 20C 211 - CONTROL VALVE COMPONENTS (BOTTOM) 3362 CONTROL & LOAD HOLDING VALVES

0

9201715

Hyd Actuated Control Valve

(SUB FOR 9207699EX)(CONTAINS ALL PARTS ON THIS PAGE) (ADDITIONAL COMPONENTS LIS TED ON ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

0411804

Screw

14шт.

2

9200495

Flow Control Hyd. Valve

(SUB FOR 0761702)(BOOM DOWN) (BUCKET CURL)

2шт.

3

0309461

Plug

1шт.

3A

0412209

Pipe Plug

1шт.

3B

AT264347

O-Ring

SUB FOR 4506428

1шт.

3C

0412003

Back-Up Ring

1шт.

3D

4506420

O-Ring

1шт.

4

2046491

O-Ring

SUB FOR 0669906

9шт.

5

0793414

Pipe Plug

1шт.

6

4506416

O-Ring

SUB FOR 0669501

1шт.

7

0793413

Check Valve

1шт.

8

4372683

Pressure Relief Valve

Arm Out

1шт.

9

0393902

O-Ring

2шт.

18

0664404

Fitting Plug

5шт.

18A

0669504

Fitting Plug

1шт.

18B

CH11570

O-Ring

SUB FOR 4509180

1шт.

20

Pipe Plug

( 0669614 NLA) (SUB COMPONENTS)

1шт.

20A

4336166

Pipe Plug

SUB FOR 0669615

1шт.

20B

M800650

Packing

SUB FOR 957366

1шт.

23

0793401

Valve

1шт.

26

0309413

Spring

2шт.

27

0669902

Fitting Plug

1шт.

28

4506412

Packing

1шт.

29

2046494

Back-Up Ring

SUB FOR 0309416

1шт.

31

0793402

Spool Valve

1шт.

32

0793403

Check Valve

2шт.

33

0793404

Spring

2шт.

34

0793405

Pipe Plug

2шт.

35

0793406

Spool Valve

1шт.

37

0793407

Spring

1шт.

38

0793408

Spring

1шт.

39

0793409

Washer

2шт.

40

0793410

Bolt

1шт.

70

0670305

Screw

1шт.

96

0793411

Housing

1шт.

97

0793412

Housing

1шт.
