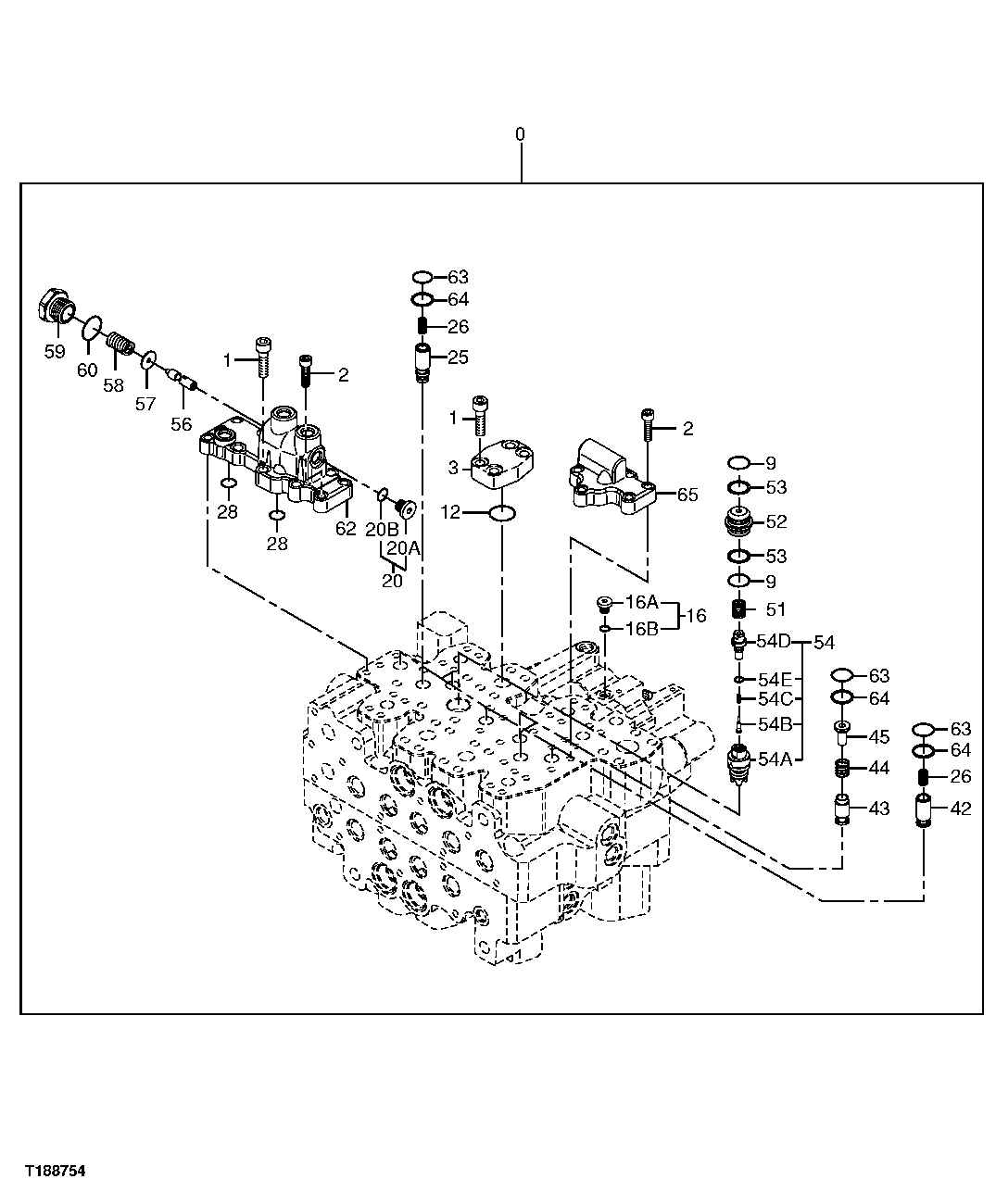

Запчасти John Deere 20C 210 - CONTROL VALVE COMPONENTS (5-SPOOL SIDE) 3362 CONTROL & LOAD HOLDING VALVES

0

9201715

Hyd Actuated Control Valve

(SUB FOR 4410248)(CONTAINS ALL PARTS O N THIS PAGE) (ADDITIONAL COMPONENTS LIS TED ON ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

0411912

Bolt

10шт.

2

0411804

Screw

11шт.

3

0669701

Cover

1шт.

9

985099

O-Ring

2шт.

12

0411901

O-Ring

1шт.

16

0669502

Pipe Plug

1шт.

16A

9134109

Drain Plug

(SUB FOR 0669503)

1шт.

16B

4506408

O-Ring

1шт.

20

Pipe Plug

( 0669614 NLA) (SUB COMPONENTS)

1шт.

20A

4336166

Pipe Plug

(SUB FOR 0669615)

1шт.

20B

M800650

Packing

(SUB FOR 957366)

1шт.

25

0793301

Valve

1шт.

26

0309413

Spring

5шт.

28

4506412

Packing

2шт.

42

0669801

Check Valve

4шт.

43

0669610

Check Valve

2шт.

44

0669609

Spring

2шт.

45

0669611

Valve Seat

2шт.

51

0669606

Spring

1шт.

52

0669607

Bushing

1шт.

53

0669608

Back-Up Ring

2шт.

54

0669802

Valve

1шт.

54A

0669803

Valve Seat

1шт.

54B

0669603

Check Valve

1шт.

54C

0669604

Spring

1шт.

54D

0669605

Fitting Plug

1шт.

54E

4506408

O-Ring

1шт.

56

0669613

Spool Valve

1шт.

57

0669616

Washer

1шт.

58

0669617

Spring

1шт.

59

0669618

Fitting Plug

1шт.

60

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

62

0793302

Manifold

1шт.

63

0669624

O-Ring

7шт.

64

0669625

Back-Up Ring

7шт.

65

0793303

Plate

1шт.
