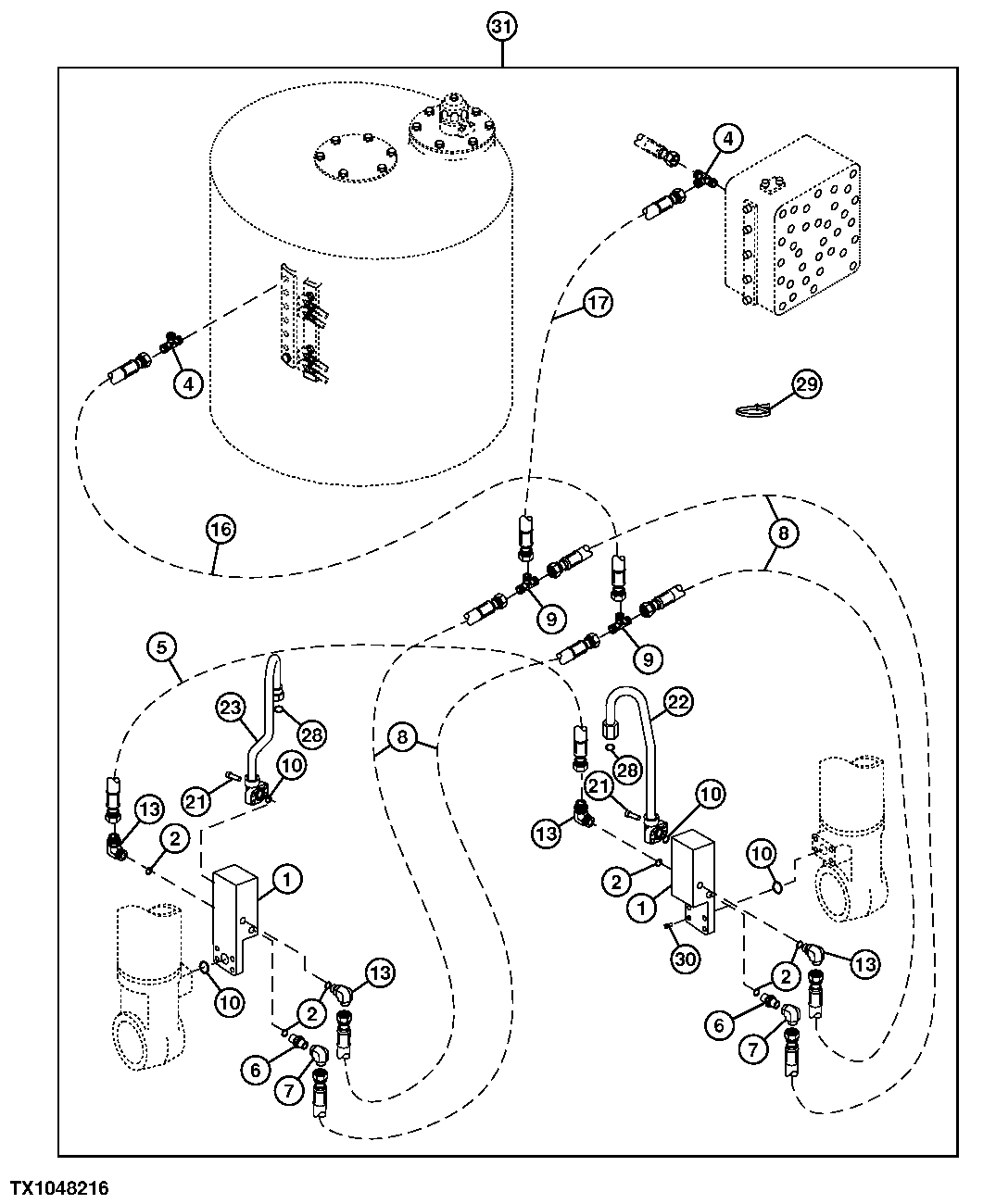

Запчасти John Deere 20C 201 - BOOM ANTI-DRIFT KIT 3360 HYDRAULIC SYSTEM

1

AT303955

Check Valve

2шт.

2

AT300313

Sealing Ring

6шт.

4

AT36921

Tee Fitting

2шт.

5

AT300337

Hydraulic Hose

1шт.

6

X6F4OMXS

Adapter Fitting

2шт.

7

AE24616

Elbow Fitting

2шт.

8

AT300338

Hydraulic Hose

(SUB FOR AT303956, THIS APPLICATION)

4шт.

9

Adapter Fitting

( X6JTX-S NLA)

2шт.

10

T72888

O-Ring

4шт.

13

X6C4OMXS

Elbow Fitting

4шт.

16

AT300465

Hydraulic Hose

1шт.

17

AT300466

Hydraulic Hose

1шт.

21

19M8211

Screw

M10 X 45

4шт.

22

AT303468

Oil Line

1шт.

23

AT302830

Oil Line

1шт.

28

T77857

O-Ring

2шт.

29

H77698

Tie Band

20шт.

30

19M8412

Screw

M10 X 55

8шт.

31

AT303957

Field Installation Kit

(WHOLE GOODS)

1шт.
