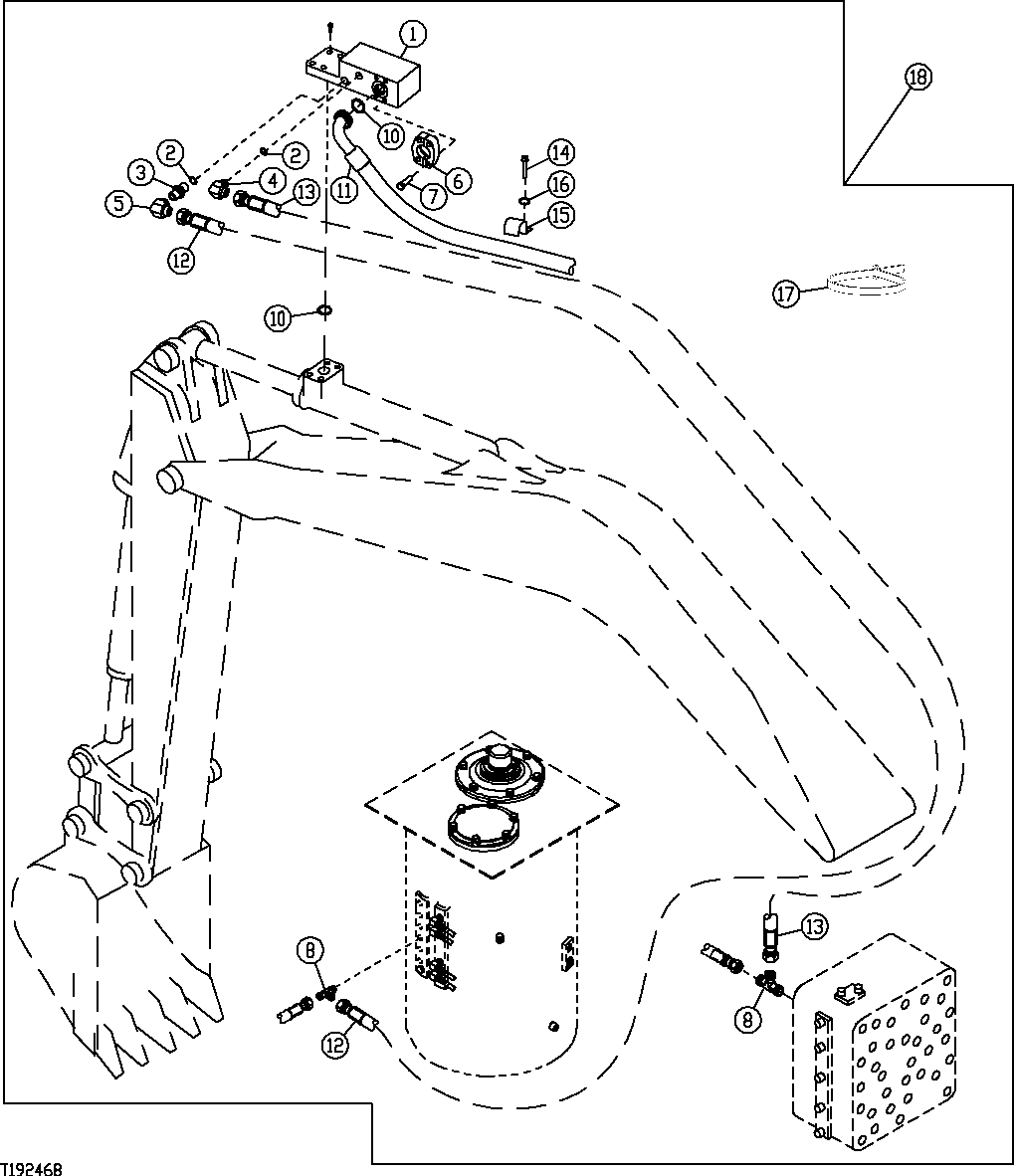

Запчасти John Deere 20C 200 - ARM ANTI-DRIFT KIT 3360 HYDRAULIC SYSTEM

1

AT303703

Check Valve

1шт.

2

AT300313

Sealing Ring

2шт.

3

X6F4OMXS

Adapter Fitting

1шт.

4

X6C4OMXS

Elbow Fitting

1шт.

5

AE24616

Elbow Fitting

1шт.

6

T107446

Flange Fitting

2шт.

7

19M8963

Screw

M10 X 35

4шт.

8

AT36921

Tee Fitting

2шт.

10

T72888

O-Ring

2шт.

11

AT303666

Hydraulic Hose

Fabricate

1шт.

12

AT303668

Hydraulic Hose

Fabricate

1шт.

13

AT303667

Hydraulic Hose

Fabricate

1шт.

14

19M7402

Cap Screw

M10 X 25

1шт.

15

T126057

Clamp

1шт.

16

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

17

H77698

Tie Band

20шт.

18

AT303665

Kit

(ALSO ORDER AT303666)(NOT INCLUDED IN KIT)

1шт.
