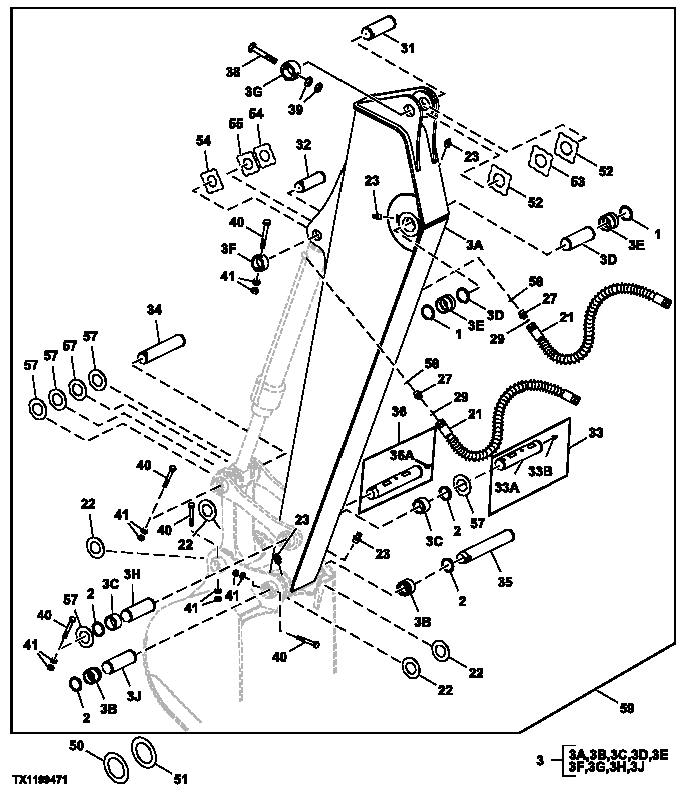

Запчасти John Deere 20C 188 - ARM, PINS, AND BUCKET CYLINDER HOSES (LONG ARM, 3.01M) 3340 EXCAVATOR FRAMES

1

TH104472

Seal

SUB FOR 4084578

2шт.

2

4065687

Seal

4шт.

3A

Arm

1шт.

3B

4424953

Bushing

2шт.

3C

4344898

Bushing

2шт.

3D

TH104472

Seal

SUB FOR 4084578

2шт.

3E

4443878

Bushing

2шт.

3F

4434951

Stop

1шт.

3G

4434952

Stop

1шт.

3H

4374948

Pipe

SUB FOR P68261

1шт.

3J

4448671

Pipe

SUB FOR P68263

1шт.

3K

8077281

Boss

Replacement Arm End Parts Not Illustrated

1шт.

3

FYA40005788

Arm

SUB FOR AP37224 AND 7037678

1шт.

21

4359576

Hydraulic Hose

2шт.

22

4276696

O-Ring

Standard O-Ring

4шт.

AT349465

Seal

Split O-Ring

4шт.

23

TH100074

Lubrication Fitting

4шт.

27

A853144

Adapter Fitting

2шт.

29

T77857

O-Ring

2шт.

31

3091546

Pin Fastener

1шт.

TH100074

Lubrication Fitting

1шт.

32

TH108939

Pin

1шт.

33

AP33639

Pin

1шт.

33A

Pin

3089106 NLA

1шт.

33B

TH100074

Lubrication Fitting

1шт.

34

P66990

Shear Pin

1шт.

35

3089243

Pin Fastener

1шт.

36

Pin

P68886 NLA; SUB 3089242

1шт.

36A

TH100074

Lubrication Fitting

USE WITH P68886

1шт.

36B

3089242

Pin

Not Illustrated Connects Bucket to Bu cket Drive Links Pin Not Drilled For G rease Fitting See DTAC Solution 90615

1шт.

38

19M7907

Screw

M20 X 140

1шт.

39

14M7277

Nut

M20 SUB FOR J950020

2шт.

40

19M8043

Cap Screw

M16 X 140

5шт.

41

14M7276

Nut

M16

10шт.

50

T241931

Washer

1.0 mm, Bucket to Arm

ARшт.

51

T241938

Shim

0.5 mm, Bucket to Arm

ARшт.

52

TH108045

Washer

2шт.

53

AT154378

Washer

1шт.

54

AT214040

Thrust Washer

SUB FOR TH105592

2шт.

55

4366692R

Thrust Washer

SUB FOR TH105593, AT214030, 4366692

1шт.

57

TH108944

Washer

6шт.

59

AP35347

Kit

WHOLE GOODS Includes Arm, Buck et Cylinder, Hoses, and Linkage

1шт.
