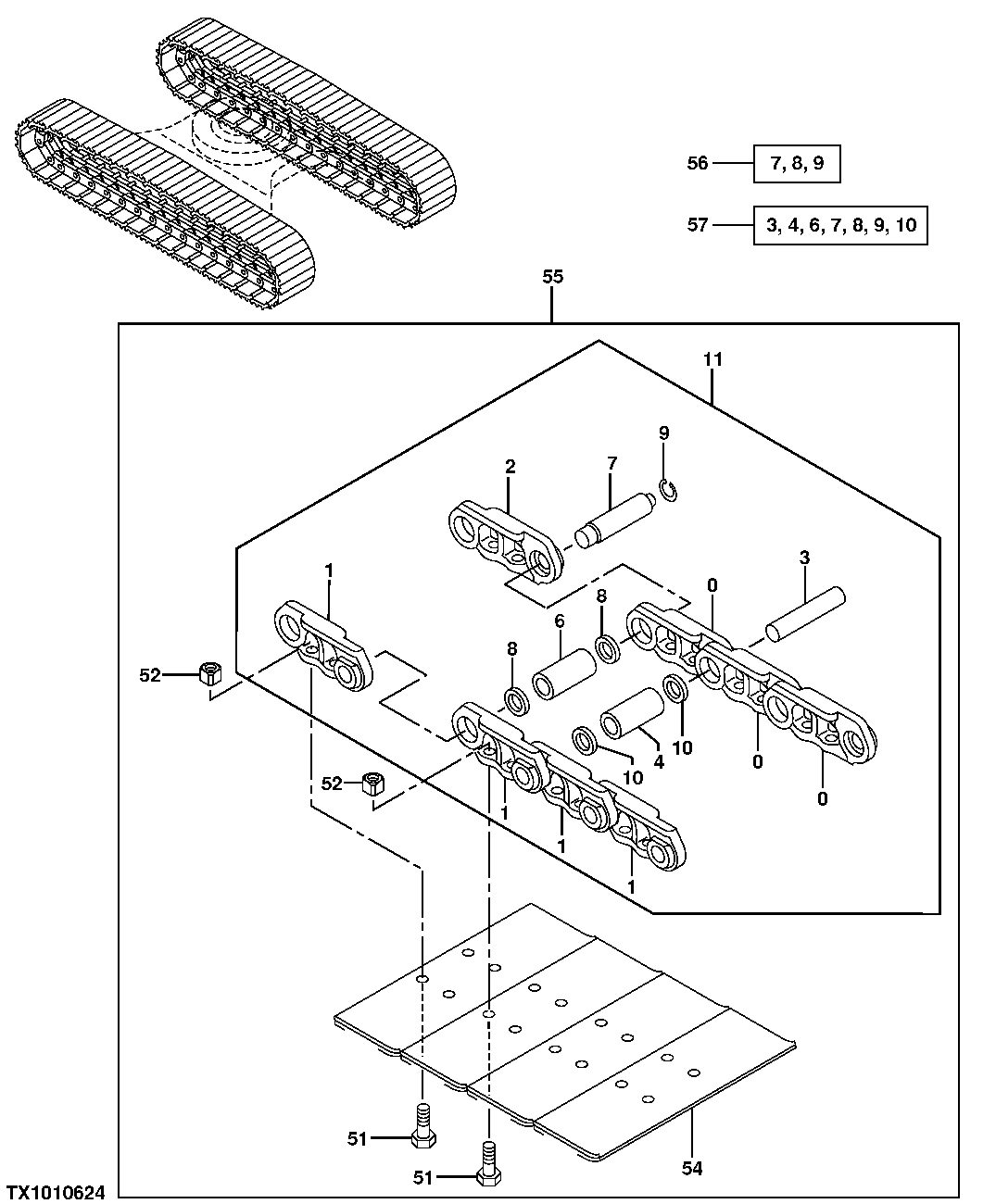

Запчасти John Deere 20C 7 - TRACK CHAIN ASSEMBLY AND SHOES 0130 TRACK SYSTEMS

0

T212009

Strutted LINK-RH

SUB FOR AT185783

43шт.

1

T212015

Track Link

SUB FOR AT185784

44шт.

2

T212029

Master Track LINK-RH

SUB FOR AT185785

1шт.

3

T212040

Track Pin

SUB FOR AT185786

43шт.

4

T212042

Track Bushing

SUB FOR 4344785 OR AT180441

43шт.

6

T212043

Master Track Bushing

SUB FOR 4345599, T191230 OR AT180442

1шт.

7

T212044

Master Track Pin

SUB FOR AT185788

1шт.

8

T212045

Spacer

SUB FOR AT185789

2шт.

9

T212046

Snap Ring

SUB FOR AT180439 OR TH108899

1шт.

10

T212048

Seal

SUB FOR AT185787

86шт.

11

AT316036

Track Chain W/O Shoes

Complete SUB FOR AT185781

1шт.

51

T212050

Track Bolt

SUB FOR AT180444

176шт.

52

T212051

Nut

SUB FOR AT180443

176шт.

54

T212011

Open Center 3 Bar Shoe

600 MM SUB FOR TH111657

44шт.

2024425

Open Center 3 Bar Shoe

700 MM

44шт.

AT306787

Shoe

600 MM RUBBER PADS

44шт.

55

Track Assembly With Shoes

600 MM WHOLEGOODS AT316037 NLA

1шт.

56

Kit

AT185795 NLA

1шт.

57

AT324665

Pin & Bushing Kit

Pin Kit For 41 Link Chain ALSO ORDER ( 3) T212040, (3) T212042 AND (6) T212048

1шт.
