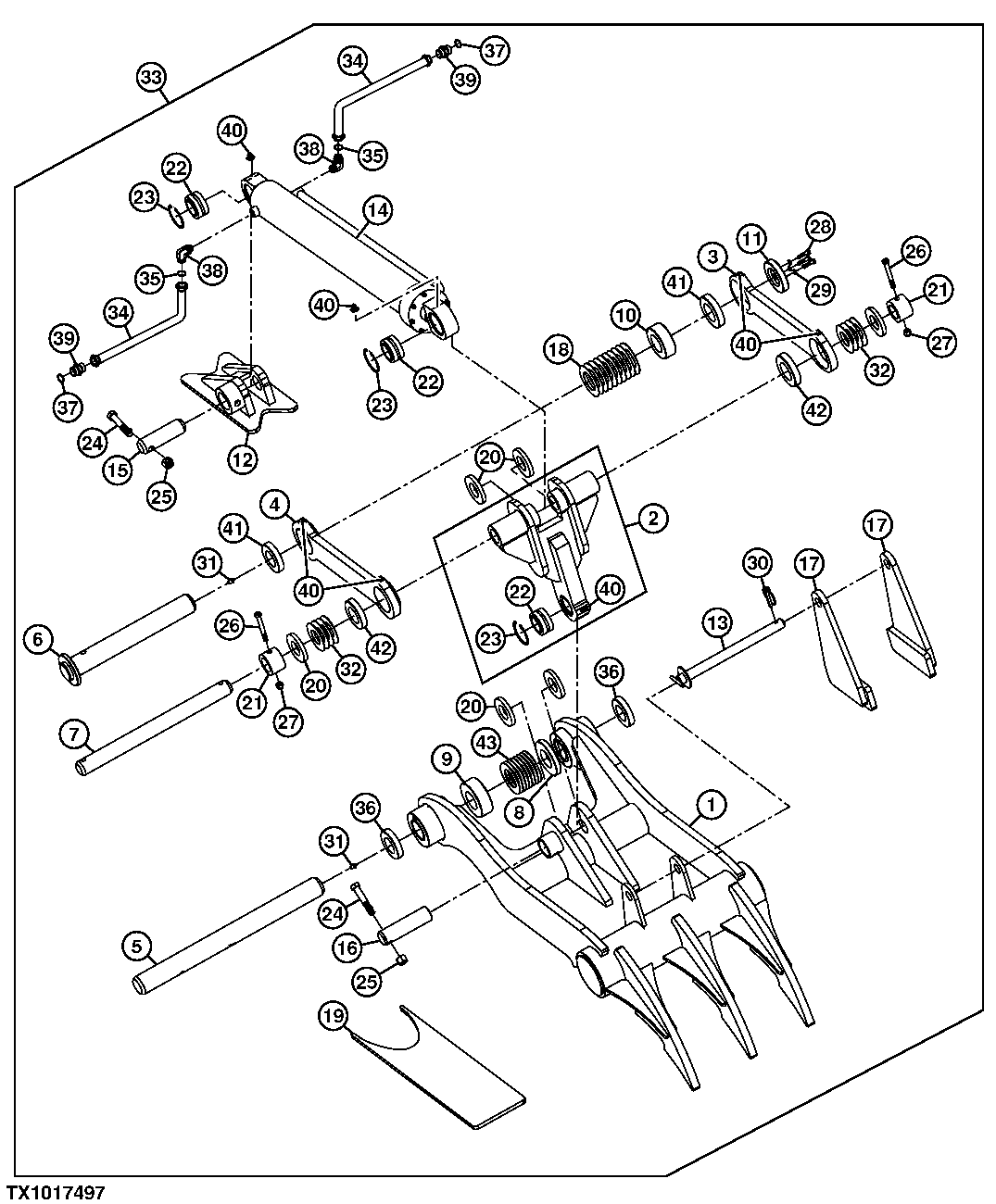

Запчасти John Deere 20C 172 - PROGRESSIVE HYDRAULIC THUMB KIT 3302 BUCKETS WITH TEETH

1

Clamp

1шт.

2

Linkage

1шт.

3

AT339882

Link

1шт.

4

AT339881

Link

1шт.

5

AT339875

Pin

1шт.

6

AT339884

Pin

1шт.

7

AT339885

Pin

1шт.

8

Spacer

1шт.

9

Spacer

1шт.

10

Spacer

1шт.

11

T229420

Cap

1шт.

12

Bracket

1шт.

13

T229332

Pin

1шт.

14

AT339877

Hydraulic Cylinder

1шт.

AT339879

Seal Kit

NOT ILLUSTRATED

1шт.

15

T229331

Pin

1шт.

16

AT339876

Pin

1шт.

17

Bracket

LOCK BACK

2шт.

18

T229515

Shim

(SUB FOR T229429)

10шт.

19

Reinforcement

1шт.

20

T229423

Thrust Washer

6шт.

21

T229431

Locking Collar

2шт.

22

AT339878

Bushing

3шт.

23

T229413

Snap Ring

3шт.

24

19H3196

Cap Screw

3/4" X 4"

2шт.

25

T25879

Nut

2шт.

26

19H3550

Cap Screw

1/2" X 4"

2шт.

27

U16721

Lock Nut

2шт.

28

19H2633

Cap Screw

3/8" X 1-1/2"

3шт.

29

12H304

Lock Washer

3/8"

3шт.

30

T115753

Pin Fastener

1шт.

31

JD7769

Lubrication Fitting

1шт.

32

T229428

Shim

8шт.

33

AT339839

Clamp Kit

30.IN BUCKET NOT FOR USE W ITH THE 8FT 3IN.(2.52M)ARM

1шт.

AT341008

Clamp Kit

36. IN. BUCKET NOT FOR USE WITH THE 8FT. 3IN.(2.52M)ARM

1шт.

34

AT342741

Hydraulic Hose

2шт.

35

R26375

O-Ring

2шт.

36

T229333

Bushing

2шт.

37

U12547

O-Ring

2шт.

38

X128C5OXS

Fitting

2шт.

39

X1216F4OMXS

Adapter Fitting

2шт.

40

JD5815

Lubrication Fitting

7шт.

41

T229424

Bushing

2шт.

42

T229426

Bushing

2шт.

43

T229515

Shim

(SUB FOR T229429)

8шт.
