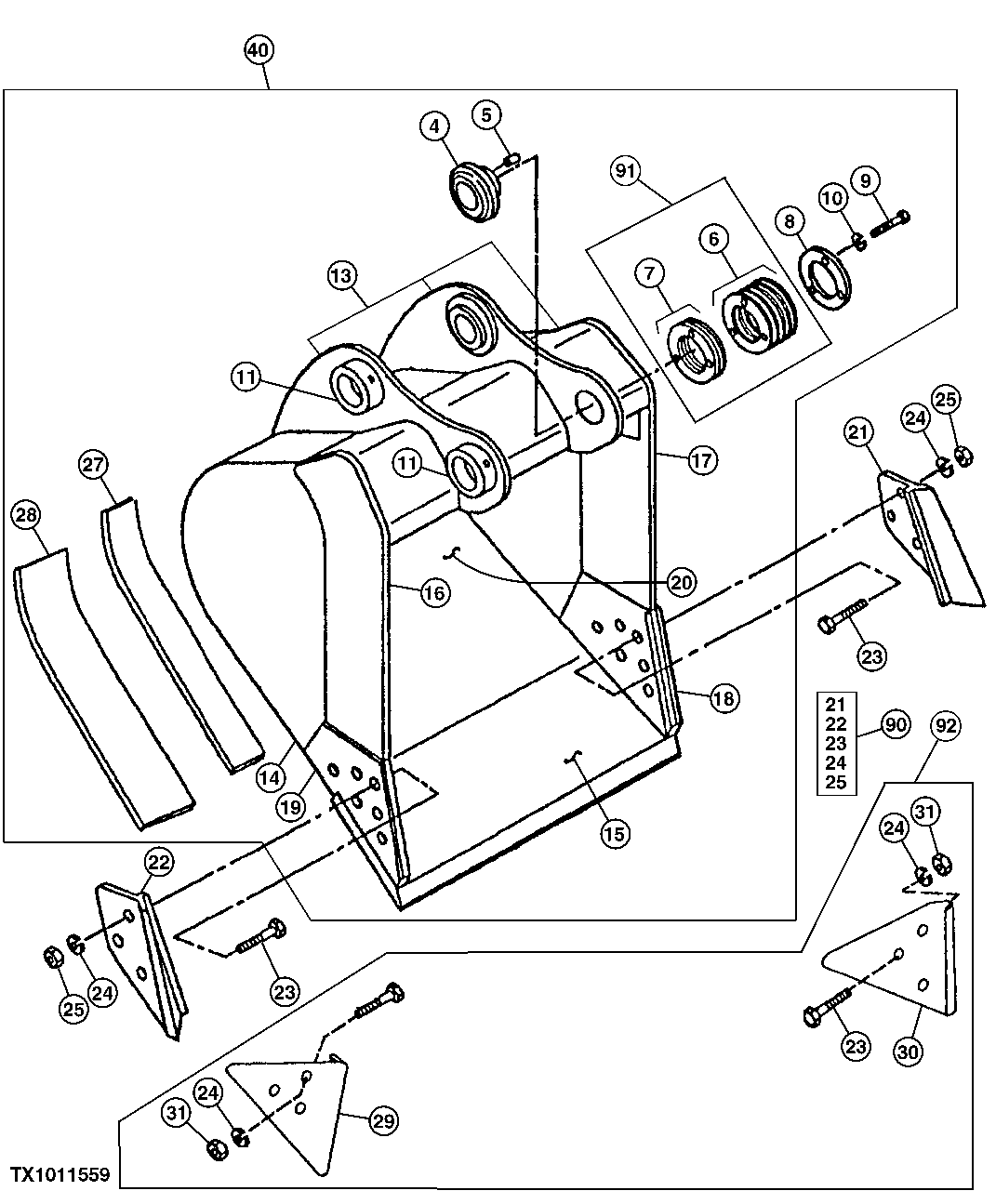

Запчасти John Deere 20C 161 - HEAVY DUTY BUCKET ASSEMBLY (ORDER TEETH SEPARATELY) 3302 BUCKETS WITH TEETH

4

TH100346

Bushing

1шт.

5

TH103619

Pin

1шт.

6

4143635

Washer

(SUB AT146242)( TH100348 NLA)

7шт.

7

4143636

Shim

(SUB AT146242)( TH100349 NLA)

3шт.

8

Spacer

( TH100347 NLA)

1шт.

9

19M7404

Cap Screw

M14 X 40

3шт.

10

12H317

Lock Washer

9/16"

3шт.

11

TH108649

Bushing

2шт.

13

C610778

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

607048

Plate

(F) (RH / LH)

2шт.

15

AT131081

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304960

Vertical Cutter

(F) (UPPER) (RH)

1шт.

17

304961

Vertical Cutter

(F) (UPPER) (LH)

1шт.

18

304968

Vertical Cutter

(F) (LH) (INSERT)

1шт.

19

304967

Vertical Cutter

(F) (RH) (INSERT)

1шт.

20

604647

Moldboard

(F) (18 INCH BUCKET)

1шт.

604650

Moldboard

(F) (24 INCH BUCKET)

1шт.

604652

Moldboard

(F) (30 INCH BUCKET)

1шт.

604653

Moldboard

(F) (36 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

304966

Bar

(F) (INNER WEAR)

1шт.

28

306618

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(SUB AT167874)(WEAR)

1шт.

30

Shroud

(SUB AT167874)(WEAR)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

( AT163576 NLA) (18 INCH - .34 CUBIC YARD) (4 TEETH)

1шт.

Excavator Bucket

(SUB AT332661)( AT163577 NLA) (24 INCH - .50 CUBIC YARD) (4 TEETH)

1шт.

Excavator Bucket

(SUB AT332662)( AT163578 NLA) (30 INCH - .64 CUBIC YARD) (5 TEETH)

1шт.

Excavator Bucket

(SUB AT332663)( AT163579 NLA) (36 INCH - .78 CUBIC YARD) (5 TEETH)

1шт.

Excavator Bucket

(SUB AT332664)( AT198293 NLA) WHOL EGOODS (42 INCH - 0.92 CUBIC YARD)

1шт.

90

End Bit

( AT131080 NLA)

1шт.

91

AT146242

Shim Kit

1шт.

92

Kit

( AT167874 NLA)

1шт.
