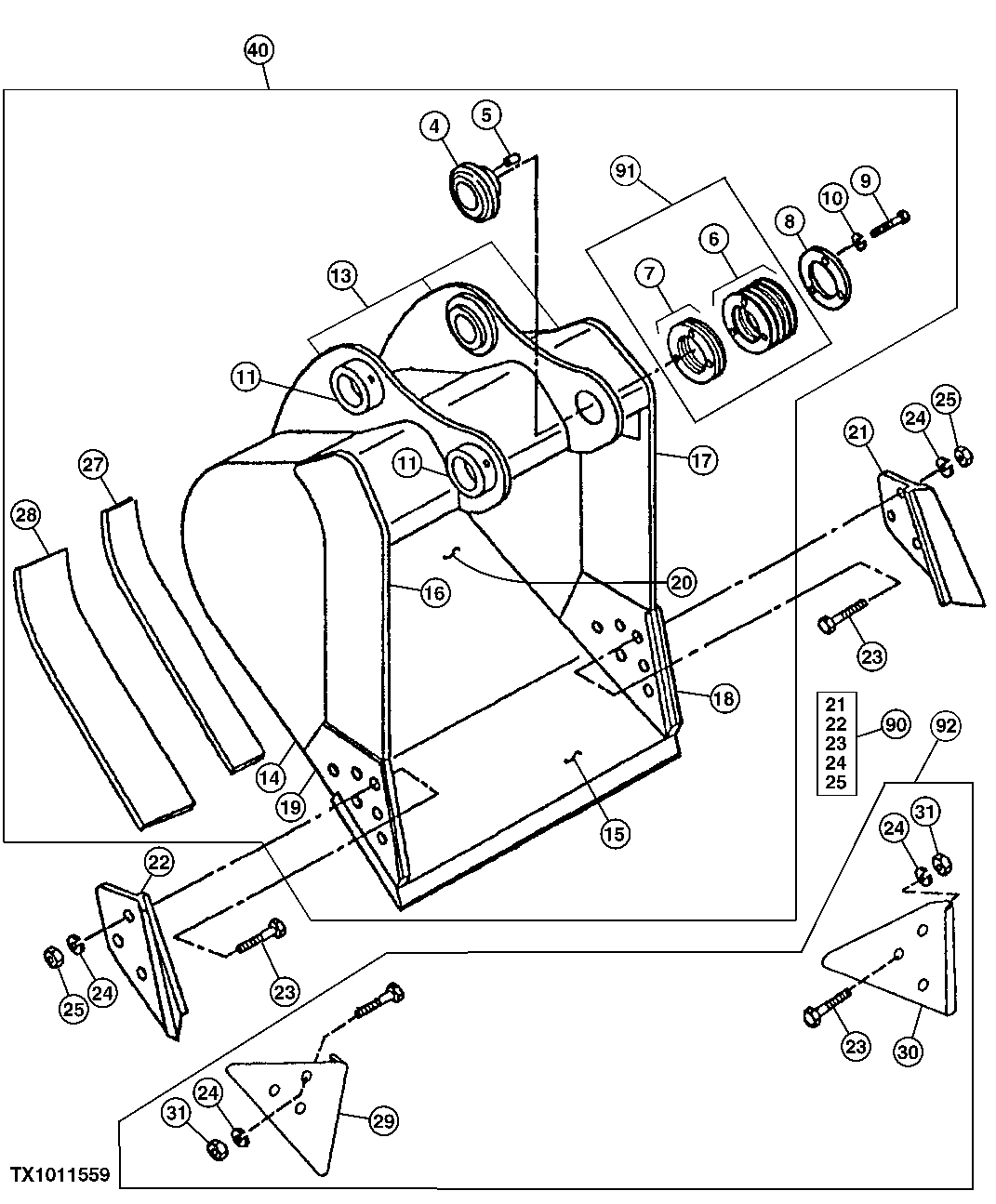

Запчасти John Deere 20C 158 - GENERAL PURPOSE BUCKET ASSEMBLY (ALSO ORDER TEETH) (CONTINUED) 3302 BUCKETS WITH TEETH

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

304966

Bar

(F) (INNER WEAR)

1шт.

28

306618

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(SUB AT167874)(WEAR)

1шт.

30

Shroud

(SUB AT167874)(WEAR)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

( AT163568 NLA) (18 INCH - .34 CUBIC YARD)

1шт.

Excavator Bucket

(SUB AT332657)( AT163569 NLA) (24 INCH - .50 CUBIC YARD) (4 TEETH)

1шт.

Excavator Bucket

(SUB AT332658)( AT163570 NLA) (30 INCH - .64 CUBIC YARD) (4 TEETH)

1шт.

Excavator Bucket

(SUB AT332659)( AT163571 NLA) (36 INCH - .78 CUBIC YARD) (5 TEETH)

1шт.

Excavator Bucket

(SUB AT332660)( AT163574 NLA) (42 INCH - .92 CUBIC YARD) (5 TEETH)

1шт.

Excavator Bucket

( AT163575 NLA) (48 INCH - 1.06 CUBIC YARD)

1шт.

90

End Bit

( AT131080 NLA)

1шт.

91

AT146242

Shim Kit

1шт.

92

Kit

Edge Protector Kit ( AT167874 NLA)

1шт.
