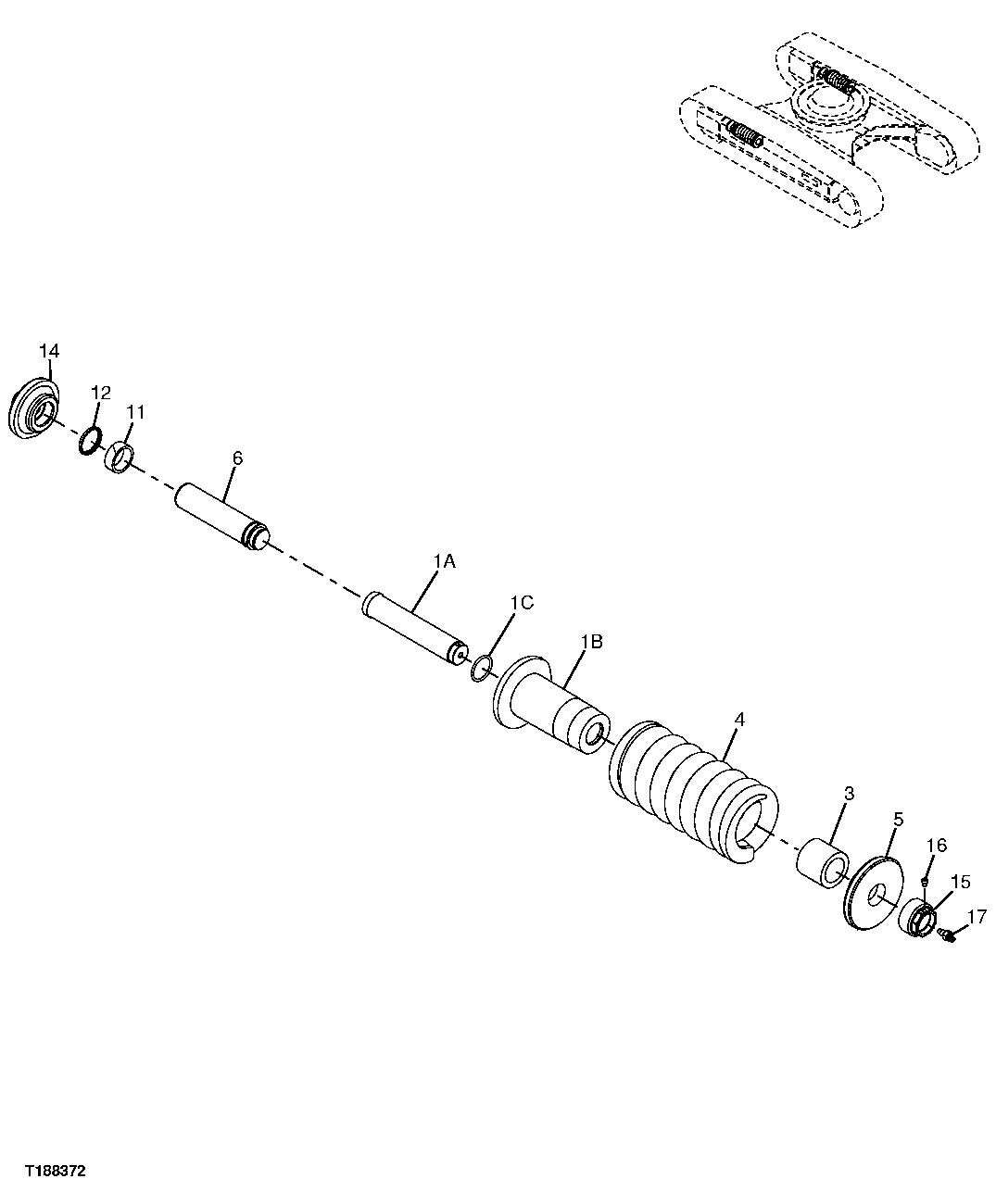

Запчасти John Deere 20C 4 - TRACK CHAIN TENSION ADJUSTER (SEE ADJUSTER PAGE FOR EXCEPTIONS) 0130 TRACK SYSTEMS

1A

T202388

Rod

NLA, FURNISH 9273271R ALONG WITH AT180454

1шт.

1B

T202384

Cylinder

NLA, FURNISH 9273271R ALONG WITH AT180454

1шт.

9273271R

Cylinder

ALSO ORDER 4665328R AND 4665330R

1шт.

4665328R

Seal

USE WITH 9273271R Not Illustrated

1шт.

4665330R

Seal

USE WITH 9273271R Not Illustrated

1шт.

1C

AT180387

O-Ring

1шт.

3

T202387

Spacer

1шт.

4

T202386

Spring

USE WITH T202388 AND T202384

1шт.

AT180454

Spring

USE WITH 9273271R

1шт.

5

AT180389

Bushing

1шт.

6

T202383

Pin

1шт.

11

AT186636

Packing

1шт.

12

AT180397

Packing

1шт.

14

T202382

Holder

1шт.

15

AT180392

Nut

1шт.

16

AT180393

Fitting Plug

1шт.

17

4255055

Valve

1шт.
