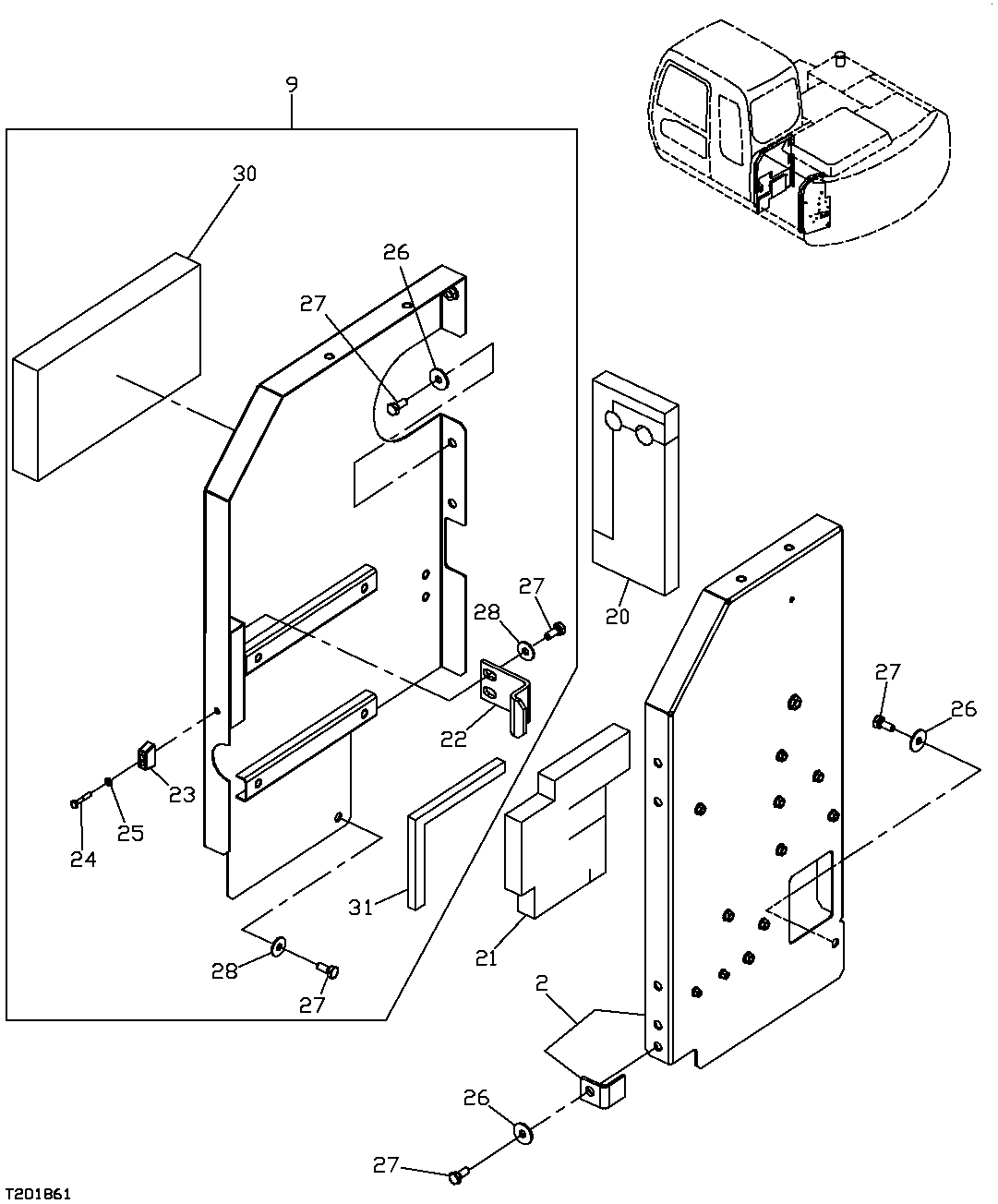

Запчасти John Deere 20C 142 - RADIATOR COMPARTMENT FRONT AND REAR PANELS 1910 HOOD OR ENGINE ENCLOSURE

2

AP37259

Cover

1шт.

9

AP37341

Cover

1шт.

20

DH400607

Isolator

1шт.

21

P67786

Isolator

1шт.

22

4431357

Stop

1шт.

23

4609950

Stop

(SUB FOR TH4424157, 4424157)

1шт.

24

19M7177

Cap Screw

M6 X 35

1шт.

25

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

26

24M7101

Washer

11 X 34 X 3 mm

5шт.

27

19M7402

Cap Screw

M10 X 25

8шт.

28

24M7296

Washer

10.500 X 30 X 2.500 mm

3шт.

30

DH400607

Isolator

1шт.

31

DH400622

Sealing Trim

1шт.
