Запчасти John Deere 20C 141 - HEATER UNIT AIR DUCTS AND HOSES (HEAT ONLY) 1830 HEATING AND AIR CONDITIONING

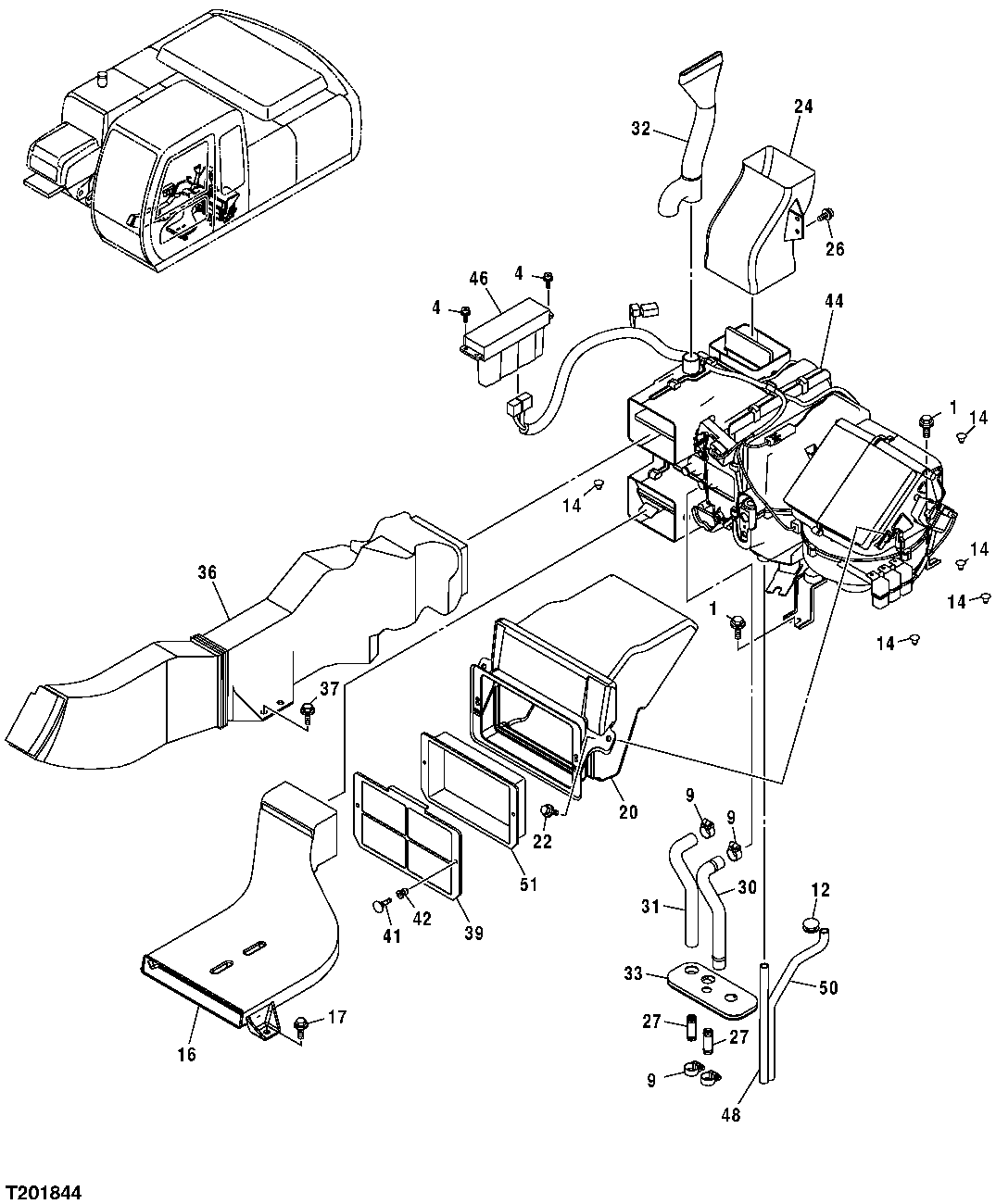

Схема запчастей John Deere 20C - 141 - HEATER UNIT AIR DUCTS AND HOSES (HEAT ONLY) 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

1

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

4

21M7265

Screw

M5 X 12

4шт.

9

WZ2141223

Hose Clamp

SUB FOR AA34965

4шт.

12

4205084

Grommet

SUB FOR TH108616

2шт.

14

4280359

Plug

SUB FOR AT154351

6шт.

16

4426155

Air Duct

SUB FOR TH4426155

1шт.

17

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

4426162

Air Duct

SUB FOR TH4426162

1шт.

22

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

24

4426157

Air Duct

SUB FOR TH4426157

1шт.

26

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

27

4347396

Fitting

SUB FOR TH4347396

2шт.

30

Radiator Hose

4430873 NLA SUB 4430872

1шт.

31

4430872

Hose

1шт.

32

4436441

Air Duct

SUB FOR TH4436441

1шт.

33

2044922

Bushing

SUB FOR TH2044922

1шт.

36

4426158

Air Duct

SUB FOR TH4426158

1шт.

37

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

39

4441139

Grille

SUB FOR TH4441139

1шт.

41

4441059

Clip

SUB FOR TH4441059

2шт.

42

4441061

Clip

SUB FOR TH4441061

2шт.

44

4609676

Heater

SUB FOR TH4450707, 4450 707; ALSO ORDER 4610412

1шт.

45

4610412

Wiring Harness

Not Illustrated

1шт.

46

4713662

Air Heater Controller

SUB FOR 4692239 For Units Equippe d With Heater and Air Conditioner

1шт.

4692240

Air Heater Controller

SUB FOR TH445078 For Units Equipped With Heater Only

1шт.

48

4430870

Hose

Use With Air Conditioner (SUB FOR (1) TH4430870)

1шт.

50

4430871

Hose

Use With Air Conditioner SUB FOR TH4430871

1шт.

51

4S00683R

Filter

Return Air Filter (SUB FO R (1) 4484453 AND 4S00683)

1шт.

Выбрано товаров: 38
