Запчасти John Deere 20C 126 - SEAT HARDWARE SERVICE KIT 1821 SEAT AND SEAT BELT

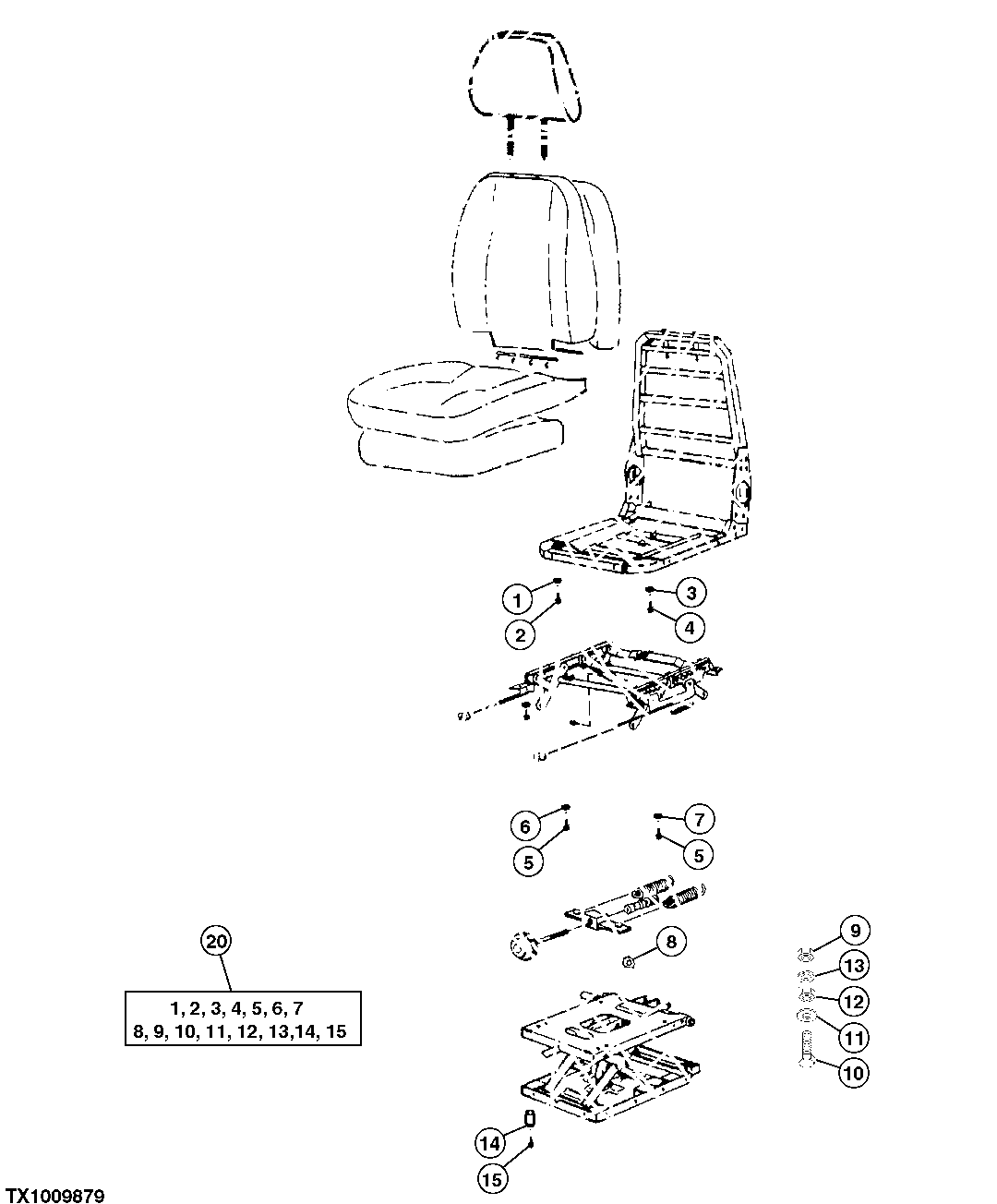

Схема запчастей John Deere 20C - 126 - SEAT HARDWARE SERVICE KIT 1821 SEAT AND SEAT BELT

Артикул

Название

Примечание

Количество

1

Washer

( 157020 NLA) (HEIGHT R ISER TO UPPER HARDWARE)

4шт.

2

Cap Screw

( 157070 NLA) (HEIGHT R ISER TO UPPER HARDWARE)

4шт.

3

Washer

( 2160621013 NLA) (HEIGHT RISER TO UPPER HARDWARE)

4шт.

4

Cap Screw

( 53511340001 NLA) (HOLDS THE HEIGHT RISER TO THE UPPER SEAT)

4шт.

5

Bolt

( 79495 NLA) (HEIGHT RISE R TO SUSPENSION HARDWARE)

4шт.

6

Spacer

( 151141 NLA) (HEIGHT RIS ER TO SUSPENSION HARDWARE)

2шт.

7

Washer

( 151207 NLA) (HEIGHT RIS ER TO SUSPENSION HARDWARE)

2шт.

8

Washer

( 53530010007 NLA) (HEIGHT R ISER TO SUSPENSION HARDWARE)

4шт.

9

Nut

( 53500250005 NLA) (SLI DE RAILS TO SUSPENSION)

6шт.

10

Screw

( 53490210001 NLA) (SLI DE RAILS TO SUSPENSION)

6шт.

11

Washer

( 53530020006 NLA) (SLI DE RAILS TO SUSPENSION)

6шт.

12

Spacer

( 166579 NLA) (SLIDE RAILS TO SUSPENSION)

6шт.

13

Washer

( 2160821019 NLA) (BELOW THE N UT ON SLIDE RAIL TO SUSPENSION)

6шт.

14

Spacer

( 150584 NLA) (BETWEEN SLIDE RAIL AND SUSPENSION BRACKETS)

4шт.

15

Screw

( 2050616016 NLA) (FRONT SLID E RAIL BRACKETS TO SUSPENSION)

4шт.

20

AT335573

Hardware Kit

1шт.

Выбрано товаров: 16
