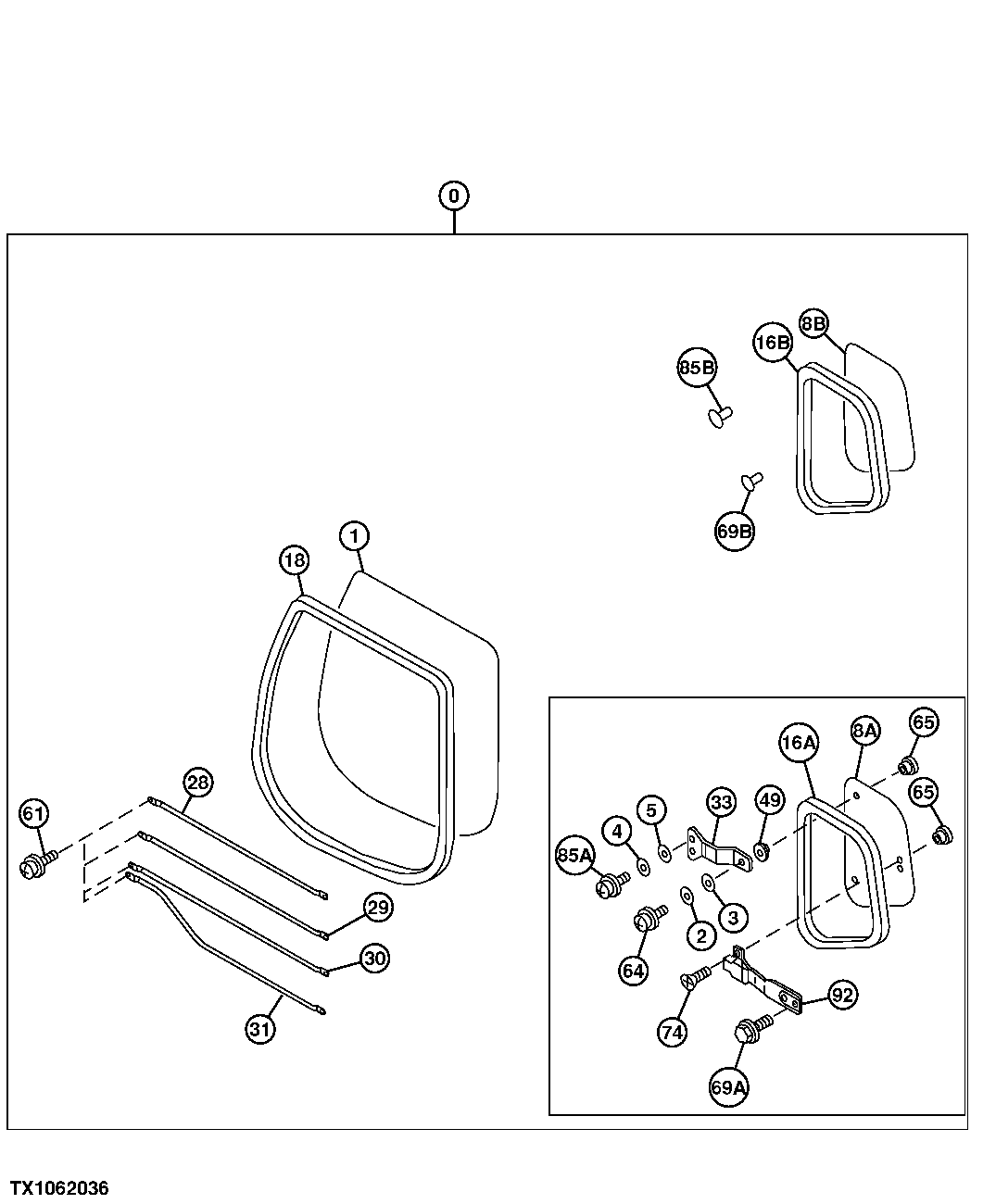

Запчасти John Deere 20C 116 - CAB RIGHT WINDOWS AND GUARDS 1810 OPERATOR ENCLOSURE

0

9202944

Cab

SUB FOR 4474296 OR 4602549, INCL UDES ALL COMPONENTS ON THIS PAGE AND PREVIOUS AND FOLLOWING PAGES

1шт.

1

Windowpane

Bronze Tint SUB 4602568R, 4448312 NLA

1шт.

4602568R

Windowpane

Green Tint SUB FOR 4602568R

1шт.

2

12M7064

Lock Washer

5 mm

2шт.

3

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

4

12M7006

Lock Washer

6 mm

4шт.

5

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

8A

4602570

Windowpane

SUB FOR 4448313 Bronze Tint Hinge

1шт.

8B

4602570

Windowpane

Green Tint Fixed

1шт.

16A

4463390

Isolator

SUB FOR 4453680

1шт.

16B

4602576

Isolator

1шт.

18

TH4448318

Isolator

1шт.

28

TH4453681

Guard

1шт.

29

4463392

Guard

SUB FOR 4453682 AND TH4453682

1шт.

30

4463393

Guard

SUB FOR TH4453683 AND 4453683

1шт.

31

4463394

Guard

SUB FOR TH4453683 AND 4453684

1шт.

33

AT214169

Spring

2шт.

49

AT214170

Bushing

2шт.

61

AT214299

Screw With Washer

8шт.

64

21M6070

Screw

M5 X 16

2шт.

65

AT214172

Bushing

4шт.

69A

AT214309

Screw With Washer

2шт.

69B

4377817

Clip

2шт.

74

AT214300

Screw

2шт.

85A

21M7246

Screw

M6 X 16

4шт.

85B

4372088

Clip

4шт.

92

AT214171

Lock

1шт.
