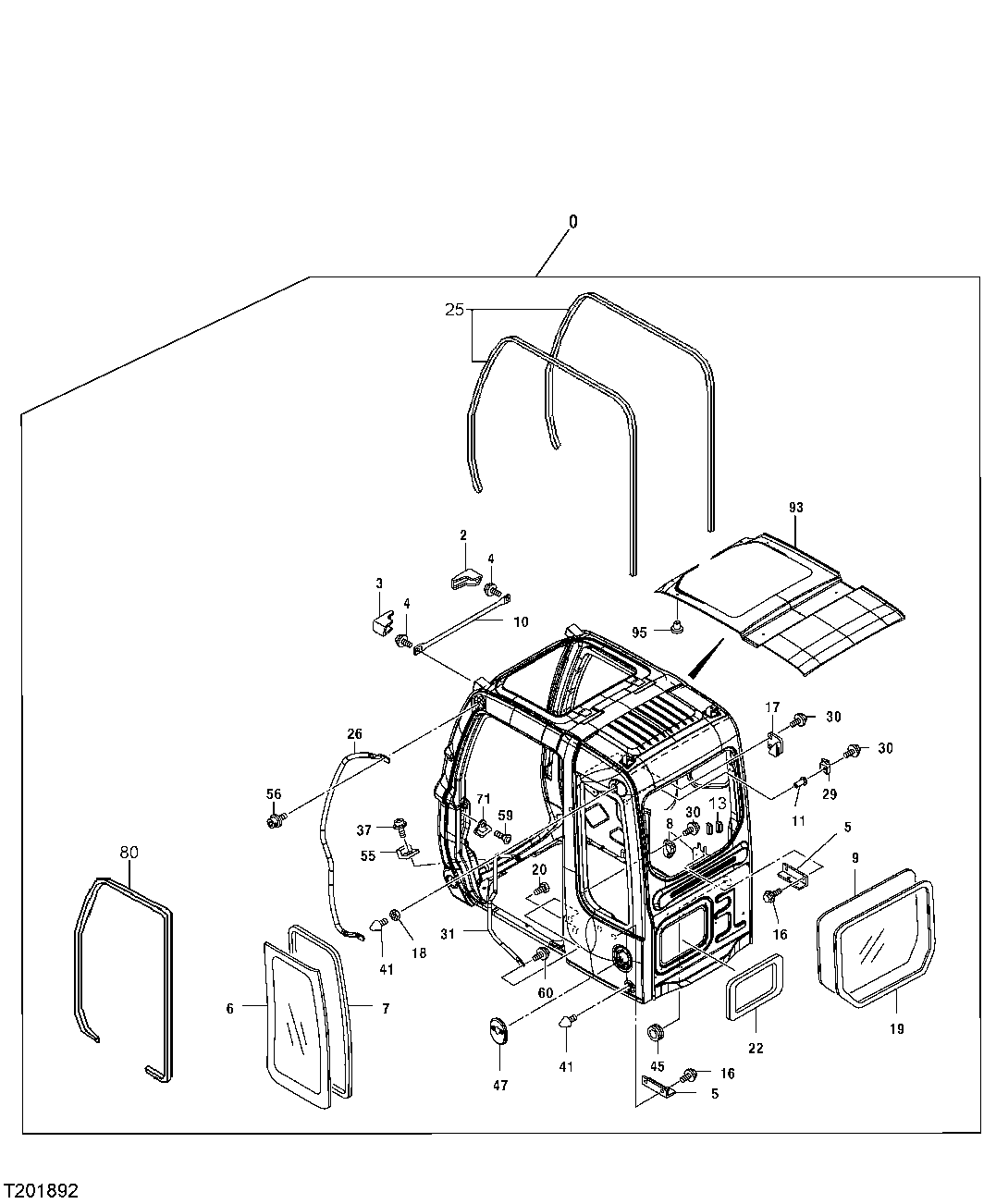

Запчасти John Deere 20C 113 - CAB LEFT AND REAR WINDOWS, ROOF, AND HANDRAIL 1810 OPERATOR ENCLOSURE

0

9202944

Cab

(SUB FOR 4474296 OR 4602549)(INC LUDES ALL COMPONENTS ON THIS PAGE AND PREVIOUS AND FOLLOWIG PAGES)

1шт.

2

TH4456177

Cover

1шт.

3

TH4456178

Cover

1шт.

4

TH4456179

Bolt

2шт.

5

TH4456181

Bracket

2шт.

6

Windowpane

Bronze (SUB FOR 4468944 OR 44483 11 ) (SUB 4602567 ( 4602580 NLA))

1шт.

4602567

Windowpane

Green

1шт.

7

AT218190

Seal

1шт.

8

TH4456183

Isolator

1шт.

9

Windowpane

Bronze (SUB 4602569R ( 4448314 NLA))

1шт.

4602569R

Windowpane

Green (SUB FOR 4602569)

1шт.

10

4474300

Pipe

1шт.

11

TH4456185

Nut

1шт.

13

4603008

Isolator

2шт.

16

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

17

TH4456182

Isolator

1шт.

18

4414857

Nut

(SUB FOR AT157068)

1шт.

19

Windowpane

(SUB 4602569R)( 4448314 NLA)

1шт.

4602569R

Windowpane

(SUB FOR 4602569)(GREEN)

1шт.

4602577

Isolator

(USE WITH 4602569)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

12M7006

Lock Washer

6 mm

1шт.

22

TH4453667

Isolator

1шт.

25

4456175

Isolator

2шт.

26

4474298J

Handrail

(SUB FOR 4474298)

1шт.

29

TH4456184

Isolator

1шт.

30

AT214310

Screw With Washer

5шт.

31

TH4453663

Handrail

1шт.

37

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

41

4304827

Bumper

(SUB FOR AT156970)

2шт.

45

AT214078

Grommet

1шт.

47

4474299

Cover

1шт.

55

AT214173

Isolator

2шт.

56

19M7550

Cap Screw

M10 X 35

2шт.

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12M7066

Lock Washer

10 mm

2шт.

59

4320163

Screw

(SUB FOR AT200584)

2шт.

60

Screw With Washer

( AT214305 OR 4372219 NLA)

2шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

2шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)

2шт.

71

AT214129

Striker

1шт.

80

4453672

Isolator

1шт.

93

TH4453665

Sheet

1шт.

95

TH4453666

Clip

14шт.
