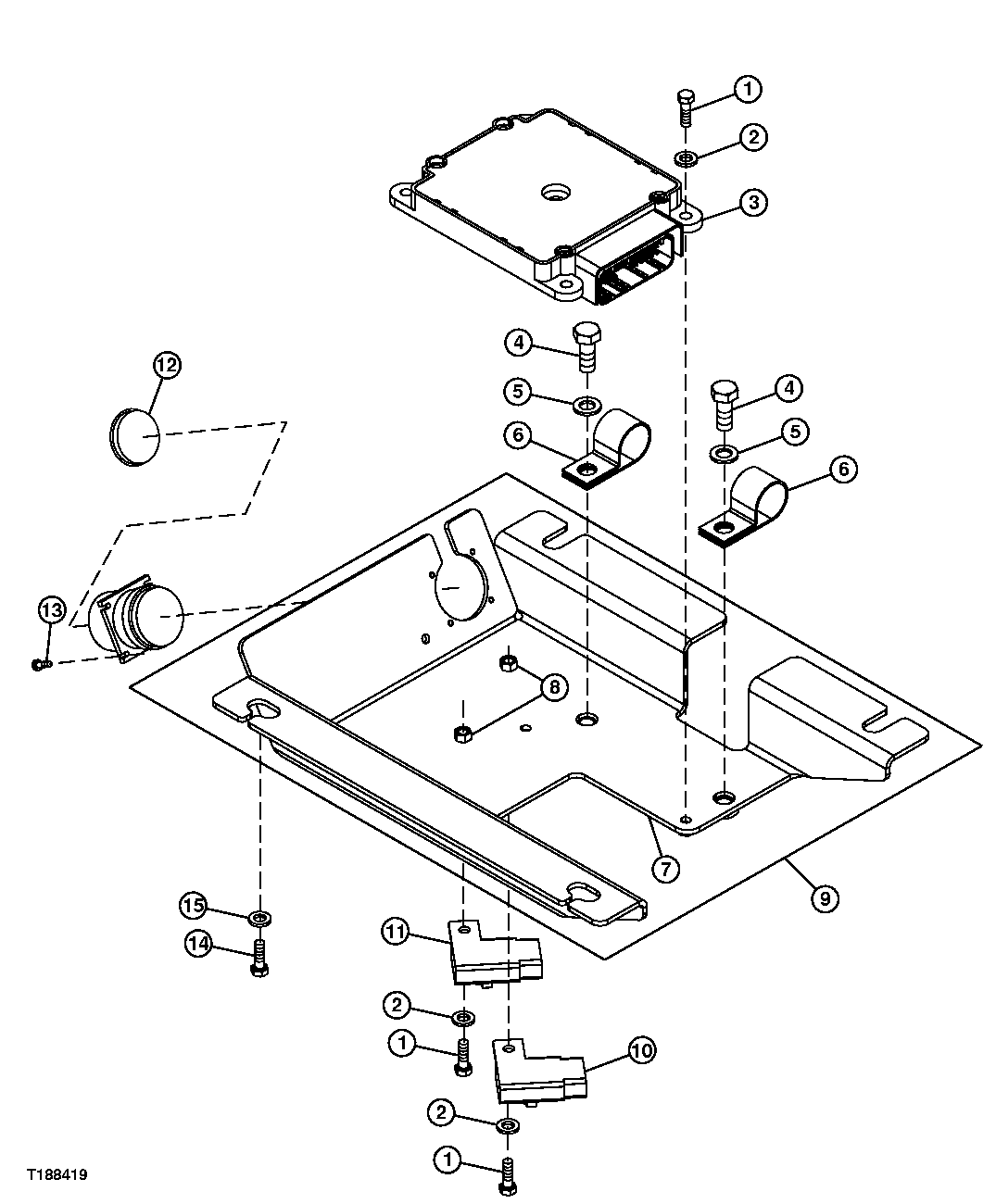

Запчасти John Deere 20C 99 - ENGINE CONTROL UNIT ASSEMBLY 1674 WIRING HARNESS & SWITCHES

1

19M7372

Cap Screw

M5 X 16

6шт.

2

24M7088

Washer

6.600 X 12 X 1.600 mm

6шт.

3

RE532629

Engine Controller

(SUB FOR RE518177, THIS APPLICA AND RE5225 29TION, RE519775)(BLANK ECU) (MUST DOWNLOAD SOFTWARE ACCORDING TO ENGINE SERIAL NUMBER )

1шт.

4

19M7881

Screw

M8 X 20

2шт.

5

24M7095

Washer

8.400 X 15 X 1.600 mm

2шт.

6

T78787

Clamp

2шт.

7

Channel

(SUB AT196349)( T188696 NLA)

1шт.

8

14M7297

Nut

M5

6шт.

9

AT196349

Support

1шт.

10

57M7121

Fuse

ECU, 10 AMP

1шт.

11

57M7125

Fuse

SERVICE EXPERT, 5 AMP

1шт.

12

57M7477

Electrical Connector Cap

1шт.

13

21M7394

Screw

M3 X 10

4шт.

14

19M8533

Screw

M10 X 25

4шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
