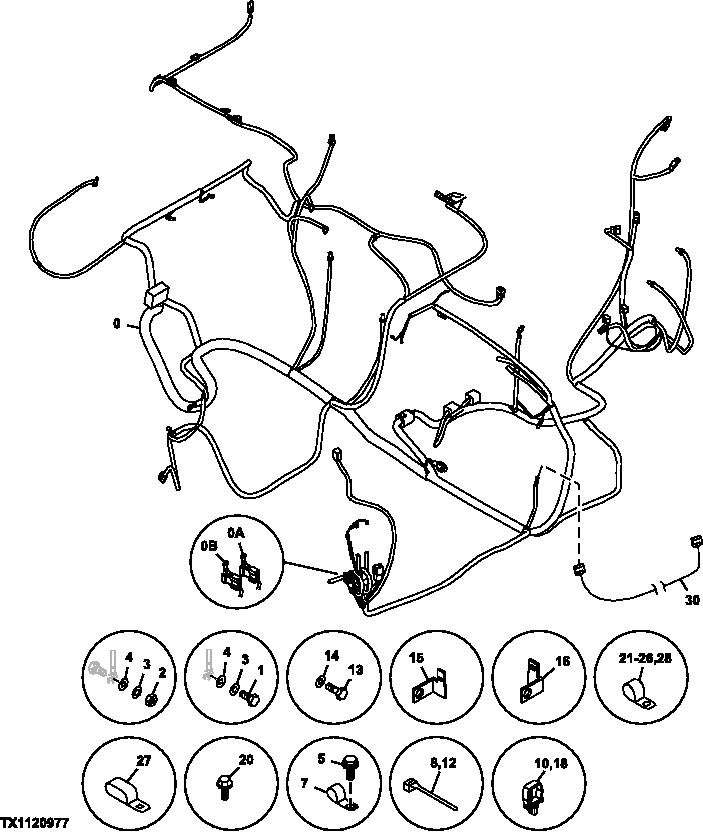

Запчасти John Deere 20C 94 - VEHICLE MAIN WIRING HARNESS AND MOUNTING 1674 WIRING HARNESS & SWITCHES

0

0004909

Wiring Harness

INCLUDES 4270554 AND 4287670, SUB FOR (1) 0004099 See DTAC Solution 6 2929 For Repair Kit and Connectors

1шт.

0A

4270554

Fuse

40 A, Fusible Link Green Not Illustrated

2шт.

0B

4287670

Fuse

60 A, Fusible Link Yellow Not Illustrated

1шт.

1

J901025

Bolt

2шт.

2

14M7274

Nut

M10 (SUB FOR J950010)

3шт.

3

A590910

Washer

5шт.

4

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

5шт.

5

19M7560

Cap Screw

M6 X 16 SUB FOR J010616

1шт.

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR A590110

1шт.

7

T78787

Clamp

(SUB FOR 4450494)

1шт.

8

H77698

Tie Band

7шт.

10

4449250

Clip

2шт.

12

H77698

Tie Band

1шт.

13

19M7938

Cap Screw

M10 X 20 (SUB FOR J901020)

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

1шт.

15

4257159

Bracket

1шт.

16

4418301

Bracket

1шт.

18

4449250

Clip

4шт.

20

J011020

Cap Screw

23шт.

21

XCL-29

Hose Clamp

(SUB FOR 4190264 OR 4193848)

2шт.

22

XCL-19

Hose Clamp

(SUB FOR 4192035)

2шт.

23

T28949

Clamp

(SUB FOR 4190274)

4шт.

24

4190275

Clamp

6шт.

25

4190261

Clip

2шт.

26

R72659

Clamp

(SUB FOR 4190263 OR 4235654)

1шт.

27

T32854

Clamp

(SUB FOR 4190282)

3шт.

28

T28949

Clamp

(SUB FOR 4190273)

2шт.

30

AT303736

Wiring Harness

Without Oil Pan Sensor Jumper Ha rness From Main Harness To Frame

1шт.
