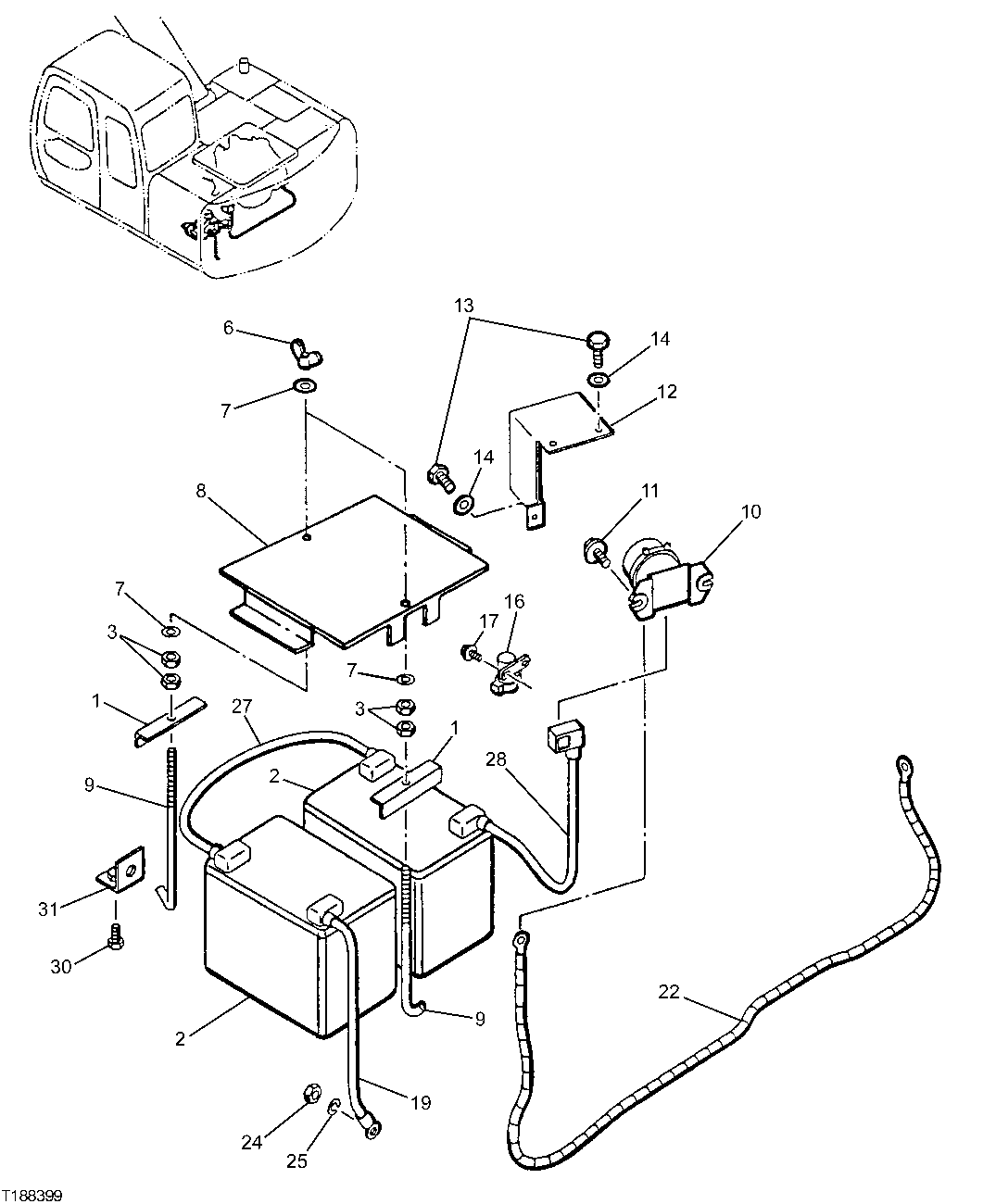

Запчасти John Deere 20C 84 - BATTERY, BATTERY CABLES, RELAY, AND COVER 1671 BATTERIES, SUPPORT & CABLES

1

AT200425

Angle

2шт.

2

TY25803

Dry Charged Battery

SUB FOR TY25803, T174338 NLA

2шт.

3

14M7274

Nut

M10

4шт.

6

14M7025

Wing Nut

M10

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR A590110

4шт.

8

DH800107

Cover

SUB FOR P60923

1шт.

9

4257034

Hook Bolt

2шт.

10

8943795431

Relay

SUB FOR 4255762

1шт.

11

21M7288

Screw

M6 X 10

2шт.

12

3087816

Cover

1шт.

13

19M7162

Cap Screw

M8 X 16

3шт.

14

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

16

AT145341

Relay

1шт.

17

21M7267

Screw

M6 X 20

2шт.

19

AR45925

Battery Cable

1шт.

22

4373214

Wiring Harness

1шт.

27

AP33487

Wiring Harness

1шт.

28

AP33486

Wiring Harness

1шт.

30

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

31

AP33477

Bracket

1шт.
