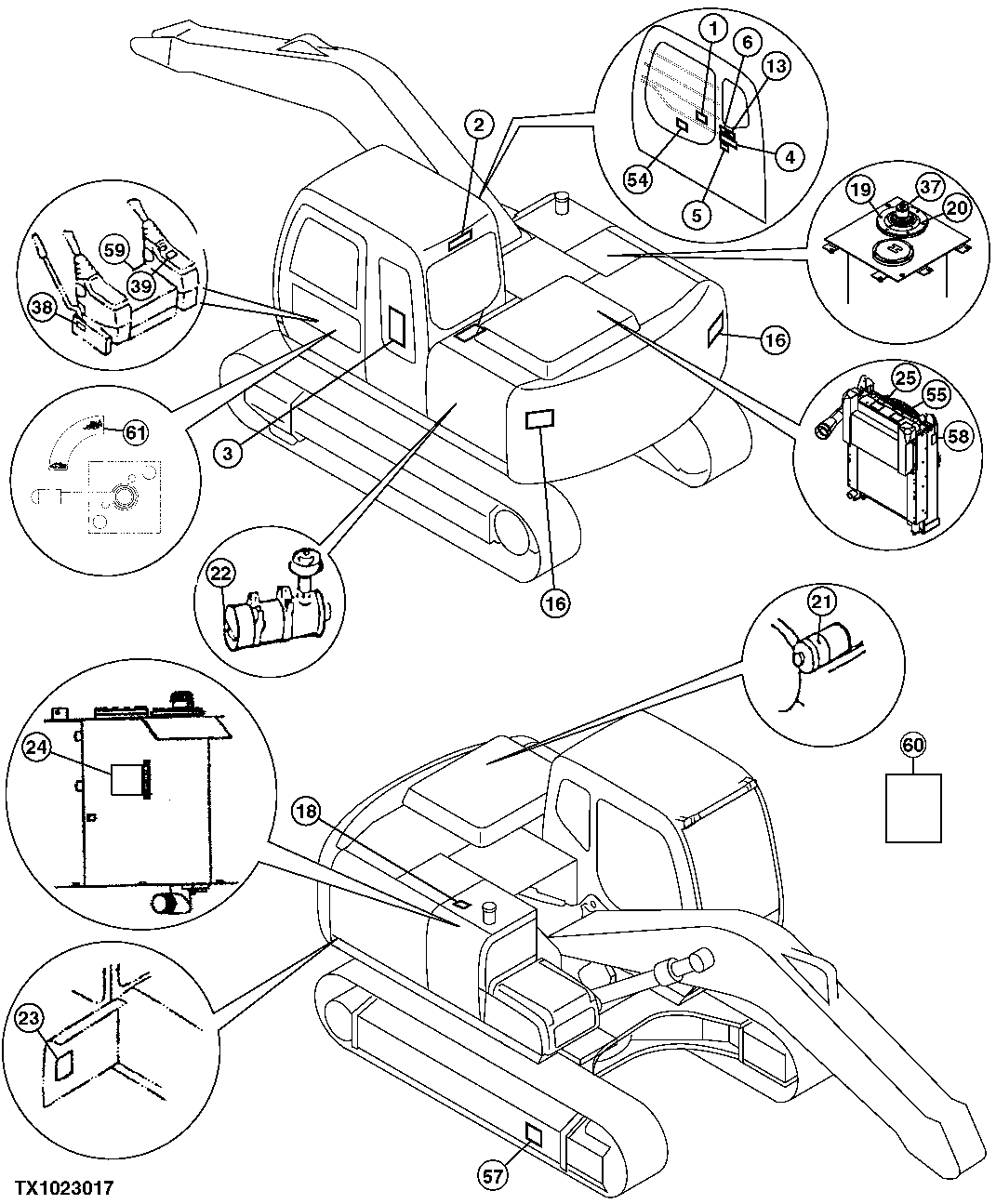

Запчасти John Deere 20C 82 - LABELS AND DECALS (SPANISH) 1322 DECALS AND TRADEMARKS

1

T222939

Label

ENGINE START/STOP

1шт.

2

T190803

Label

CAUTION (WINDOW LOCK) (FRONT)

1шт.

3

T222874

Label

LIFT CAPACITY

1шт.

4

T222823

Label

(SUB FOR T148908, THIS APPLICATIO N)WARNING (CRUSHING ARTICULATION)

1шт.

5

T162754

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

6

T222832

Label

DANGER (ELECTROCUTION)

1шт.

13

T387695X63

Label

IMPORTANT (BREAK WINDOW FOR S ECONDARY EXIT) SUB FOR T222928

1шт.

16

T222787

Label

WARNING (STAY CLEAR)

2шт.

18

T127575

Label

(DIESEL ONLY)

1шт.

19

T102620

Label

HYDRAULIC OIL ONLY

1шт.

20

T222806

Label

PUMP BLEED INFORMATION

1шт.

21

T146106

Safety Sign

DANGER - BYPASS START

1шт.

22

T222758

Label

AIR CLEANER

1шт.

23

T233270

Label

(SUB FOR T190933 OR T222 708)PERIODIC MAINTENANCE

1шт.

24

T222778

Label

IMPORTANT - OIL LEVEL

1шт.

25

T222774

Label

IMPORTANT (RADIATOR)

1шт.

37

T190802

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

38

T222834

Label

HYDRAULIC LOCKOUT

1шт.

39

T222838

Label

(IGNITION KEY SWITCH)

1шт.

41

T222764

Label

VANDAL COVER (NOT ILLUSTRATED)

1шт.

54

T201547

Label

OPERATOR PATTERN

1шт.

55

T181295

Label

CAUTION (PRESSURIZED) (RADIATOR CAP)

1шт.

57

T222756

Label

CHAIN

1шт.

58

T187759

Safety Sign

WARNING, FAN GUARD

1шт.

59

T222955

Label

OPERATION, BLADE

1шт.

60

Tag

ENGINE OIL ( T84051 NLA) ( T84051 NLA)

1шт.

61

T228108

Label

PATTERN CHANGER (PATTERN SELECTOR VALVE)

1шт.
