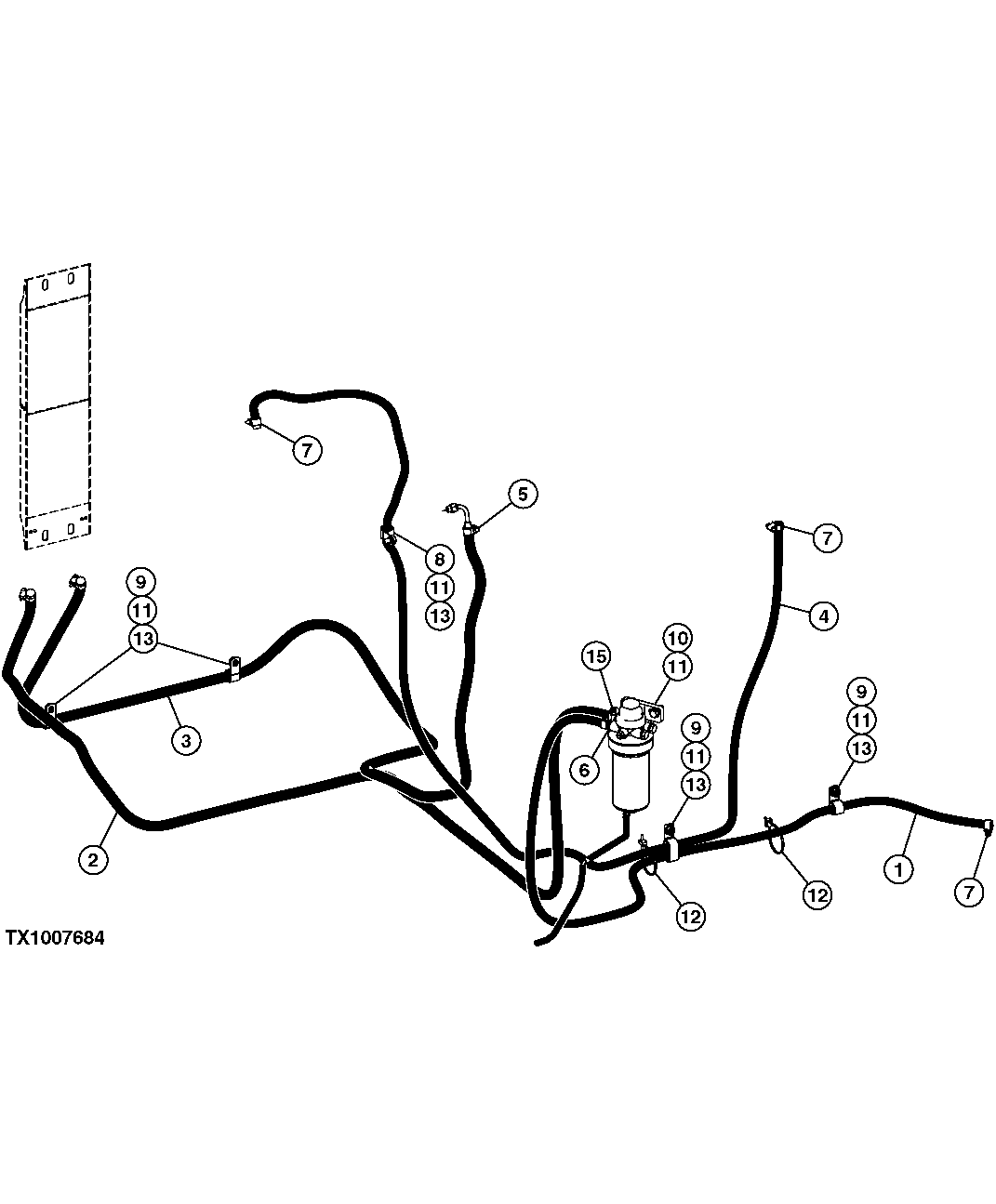

Запчасти John Deere 20C 79 - LOW PRESSURE FUEL HOSES FROM FUEL TANK TO ENGINE 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

Hose

(MAKE FROM TY24398 ) (SUB FOR AP34468)(CUT TO LENGTH 2000MM)

1шт.

2

Hose

(MAKE FROM TY24399 ) (SUB FOR AP39339)(CUT TO LENGTH)

1шт.

3

Hose

(MAKE FROM TY24399 ) (SUB FOR AP39339)(CUT TO LENGTH)

1шт.

4

Hose

(MAKE FROM TY24398 ) (SUB FOR AP34469)(CUT TO LENGTH 3070MM)

1шт.

5

AP35377

Adapter Fitting

1шт.

6

AP35375

Fitting

1шт.

7

AT145649

Clamp

8шт.

8

19M8440

Screw

M10 X 25

2шт.

9

19M7274

Cap Screw

M8 X 70

5шт.

10

19M7576

Screw

M10 X 30

2шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

12

H77698

Tie Band

2шт.

13

4190266

Clip

4шт.

14

T24432

Clamp

(SUB FOR 4190277)

2шт.

15

RE500576

Fitting

1шт.
