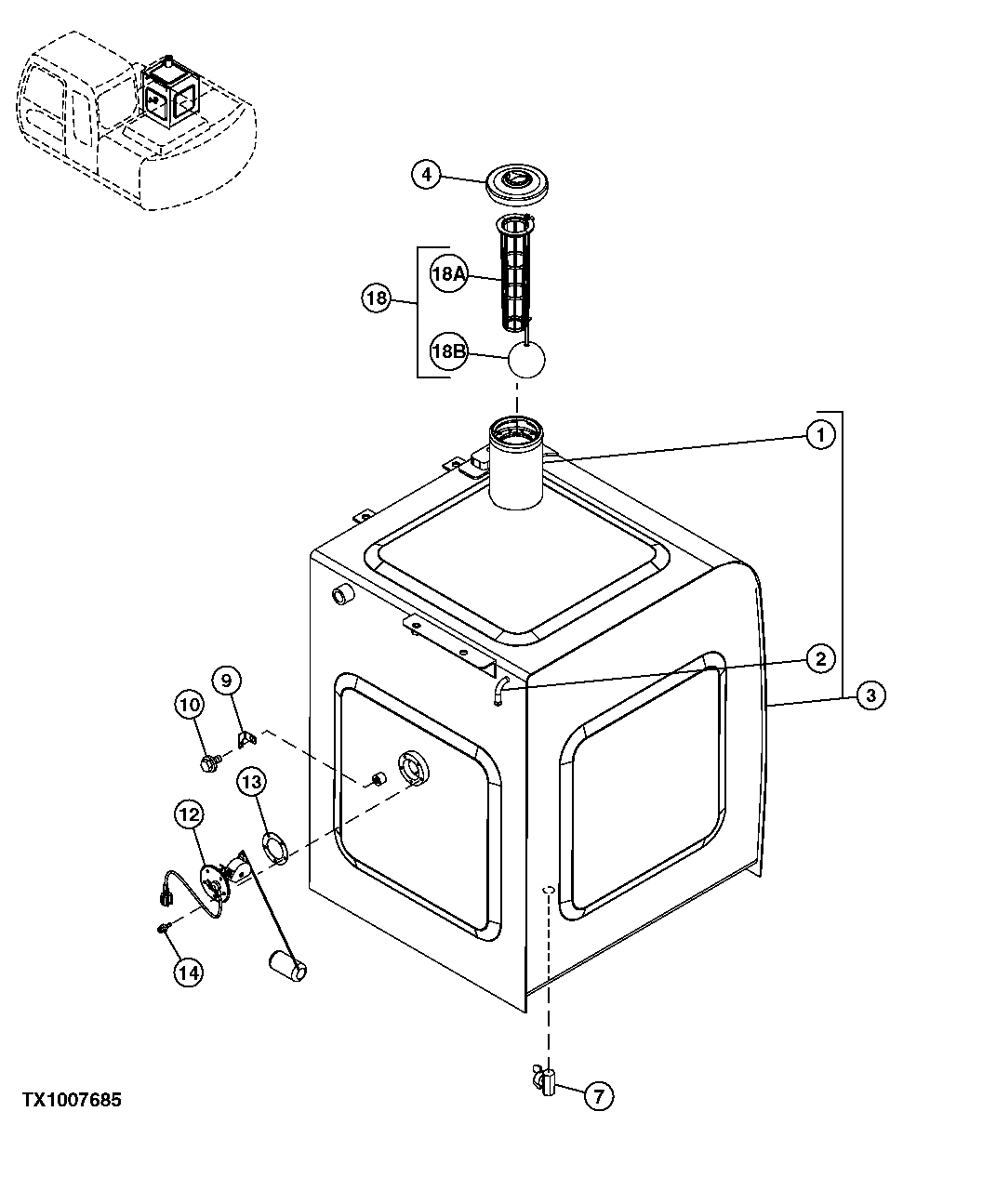

Запчасти John Deere 20C 77 - FUEL TANK, LEVEL FLOAT, AND FILLER CAP 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

AP37217

Fuel Tank

1шт.

2

FYA00027433

Tube

SUB FOR 4121497

1шт.

3

4249777

Line

1шт.

4

4361638

Cap

(SUB FOR 4361638)(KEY LOCKA BLE) (ORDER KEY SEPARATELY)

1шт.

AT323462

Filler Cap

(SUB FOR 4361638)(CAN BE LOCKED WI TH PADLOCK) (PADLOCK NOT INCLUDED)

1шт.

AT194969

Key

1шт.

7

AT13740

Drain Valve

1шт.

9

4257159

Bracket

1шт.

10

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

12

4660782

Float

SUB FOR 4257128

1шт.

13

T211051

Gasket

SUB FOR U42323

1шт.

14

21M7278

Screw

M5 X 10

5шт.

12M7064

Lock Washer

5 mm

5шт.

18

4353560

Strainer

1шт.

18A

4353560

Strainer

SUB FOR 4372619

1шт.

18B

4372620

Float

1шт.
