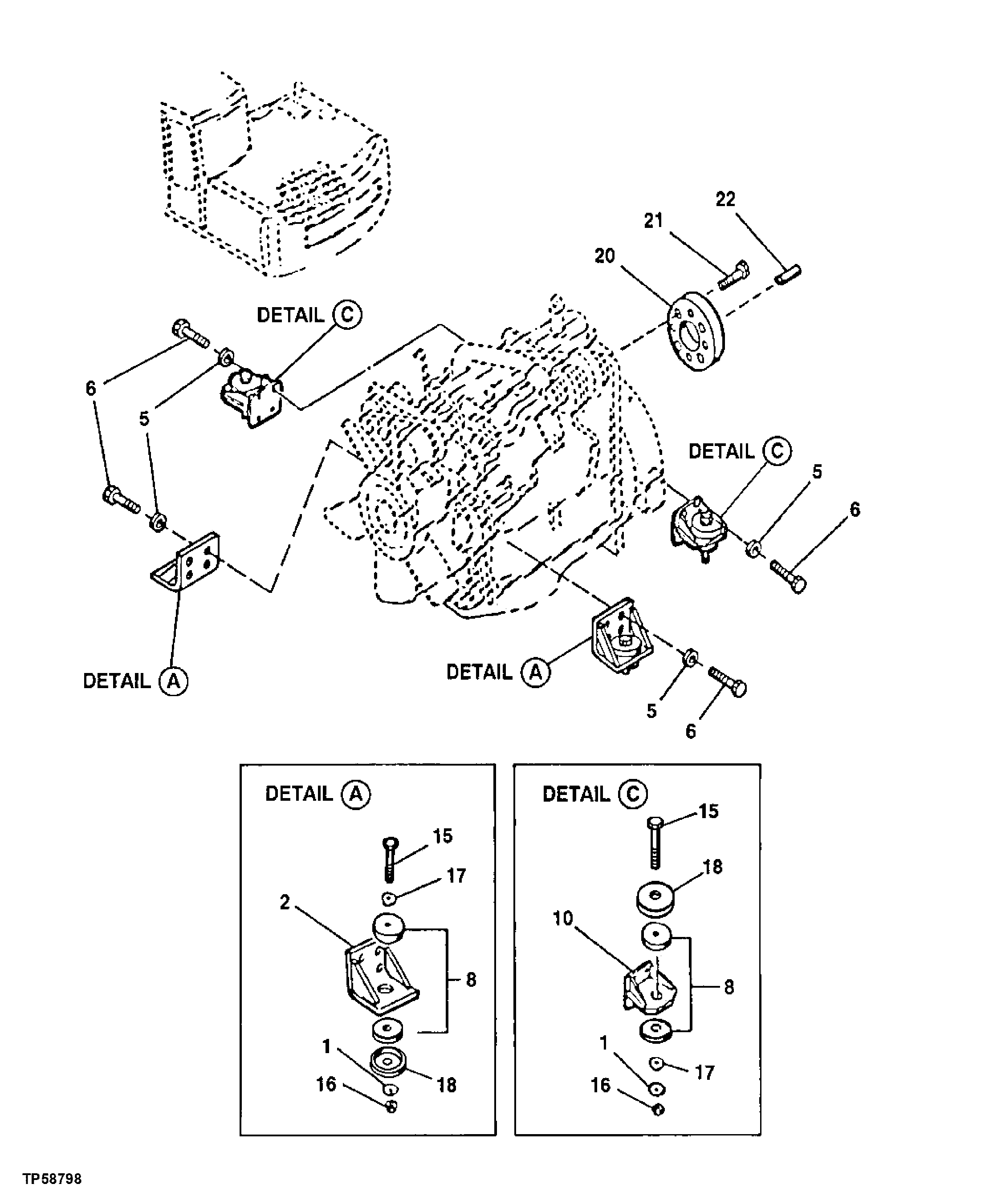

Запчасти John Deere 20 73 - ENGINE MOUNTING (ESN -804732) ( - 804732) 0400B Engine T04045TT052 ( - 804732) T04045TT052

1

24M7241

Washer

17 X 34 X 4 mm

4шт.

2

AP35226

Support

(SUB FOR AP33255)

2шт.

5

T29342

Washer

13.487 X 31.750 X 4.572 mm (17/32" X 1-1/4" X 0.180")

ARшт.

6

19M7790

Screw

M12 X 35

ARшт.

8

AP35246

Isolator

(SUB FOR RE60721 OR AP35225)

4шт.

10

AP35227

Support

(SUB FOR AP33256)

2шт.

15

19M8610

Screw

M16 X 110

4шт.

16

14M7328

Lock Nut

M16

4шт.

17

R111207

Washer

16.700 X 71.500 X 5 mm (0.657" X 2.815" X 0.197") (USE WITH RE60721 ORIGINAL MOUNTS)

4шт.

18

R111207

Washer

16.700 X 71.500 X 5 mm ( 0.657" X 2.815" X 0.197")

4шт.

P61093

Retainer

4шт.

20

P64258

Spacer

1шт.

21

T108085

Cap Screw

4шт.

22

34M7117

Spring Pin

5 X 10 mm

2шт.

23

Temperature Sensor

Not Illustrated

1шт.
