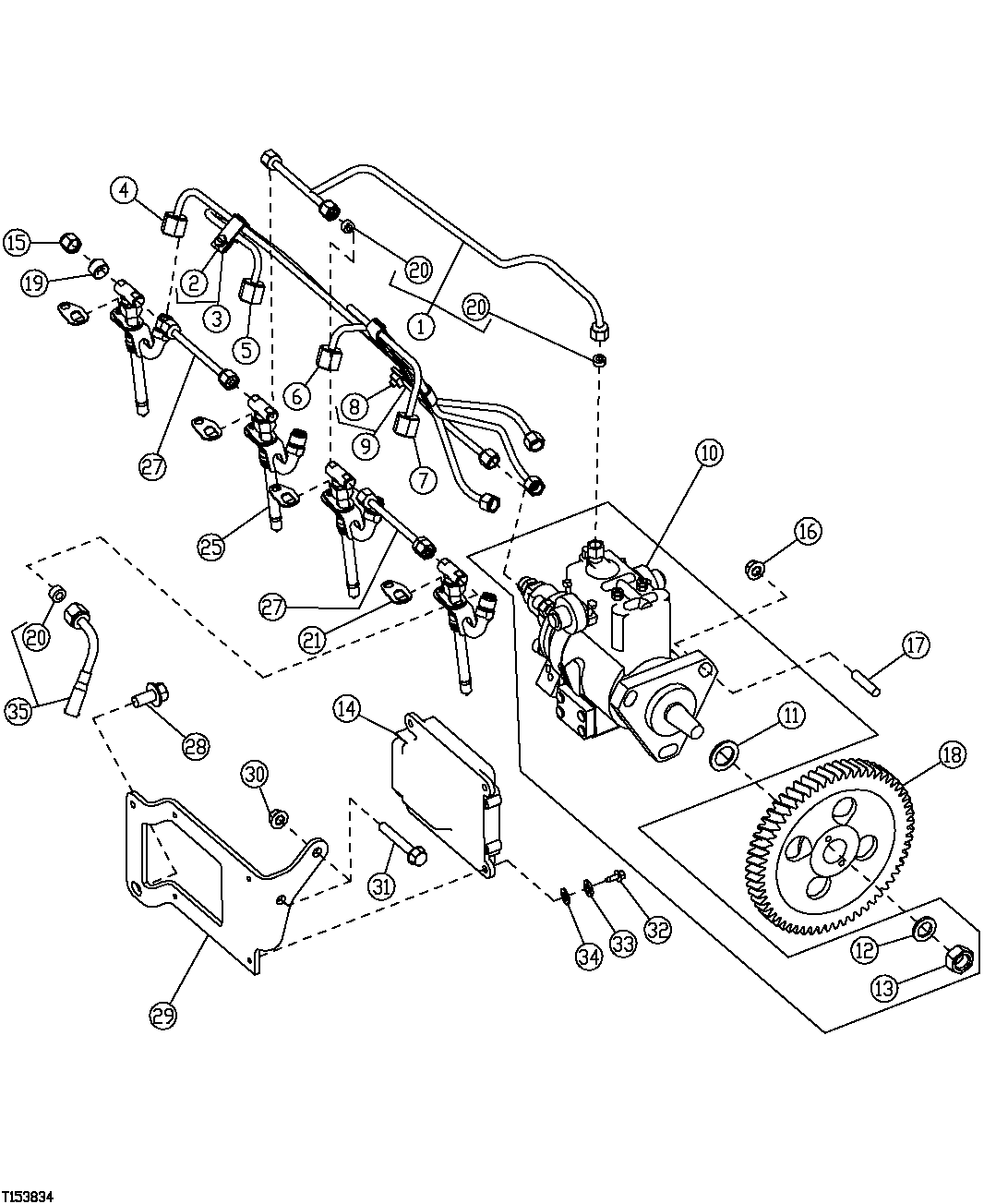

Запчасти John Deere 20 49 - FUEL INJECTION PUMP,FUEL INJECTION LINES AND ENGINE CONTROLLER 0400A Engine 4045HP051-RE508144 4045HP051

1

RE507598

Fuel Line

1шт.

2

19M6614

Cap Screw

M6 X 12

2шт.

3

RE19797

Clamp

2шт.

4

RE507649

Fuel Line

NO.4

1шт.

5

RE507648

Fuel Line

NO.3

1шт.

6

RE507647

Fuel Line

NO.2

1шт.

7

RE507646

Fuel Line

NO.1

1шт.

8

19M6614

Cap Screw

M6 X 12

1шт.

9

RE19799

Clamp

1шт.

10

RE518086

Fuel Injection Pump

NLA; ORDER SE501234; MARKED RE518167; 12V

1шт.

SE501234

Fuel Injection Pump Reman

REMAN FOR RE518086

1шт.

RE521822

Fuel Temperature Sensor

KIT DE10 TEMPURATURE S ENSOR; NOT ILLUSTRATED

1шт.

11

R502076

O-Ring

1шт.

12

R132874

Washer

1шт.

13

R91360

Nut

M14

1шт.

14

RE522529

Engine Controller

SUB FOR RE518177, OR RE519775; APPL

1шт.

15

R123593

Tube Nut

1шт.

16

14M7298

Flange Nut

M8

3шт.

17

R116386

Stud

3шт.

18

R505472

Gear

1шт.

19

AR85519

Plug

1шт.

20

R51936

Sealing Washer

4шт.

21

RE508716

Clamp

4шт.

25

RE531436

Nozzle

INCLUDES T24472, R92352 AN D R500390; SUB FOR RE507766

4шт.

SE500830

Injection Nozzle Reman

PKG OF 4 NLA

1шт.

SE501103

Injection Nozzle Reman

PKG OF 1 REMAN FOR RE531436

4шт.

RE531116

Nozzle Kit

1шт.

27

RE68748

Tube

2шт.

R51936

Sealing Washer

4шт.

R123593

Tube Nut

4шт.

28

19M7784

Screw

M10 X 20

1шт.

29

R503520

Bracket

1шт.

30

14M7298

Flange Nut

M8

2шт.

31

19M7979

Screw

M8 X 55

2шт.

32

19M7640

Cap Screw

M5 X 12

4шт.

33

12H316

Lock Washer

0.216"

4шт.

34

24M7027

Washer

5.300 X 10 X 1 mm

4шт.

35

RE16142

Fuel Line

1шт.
