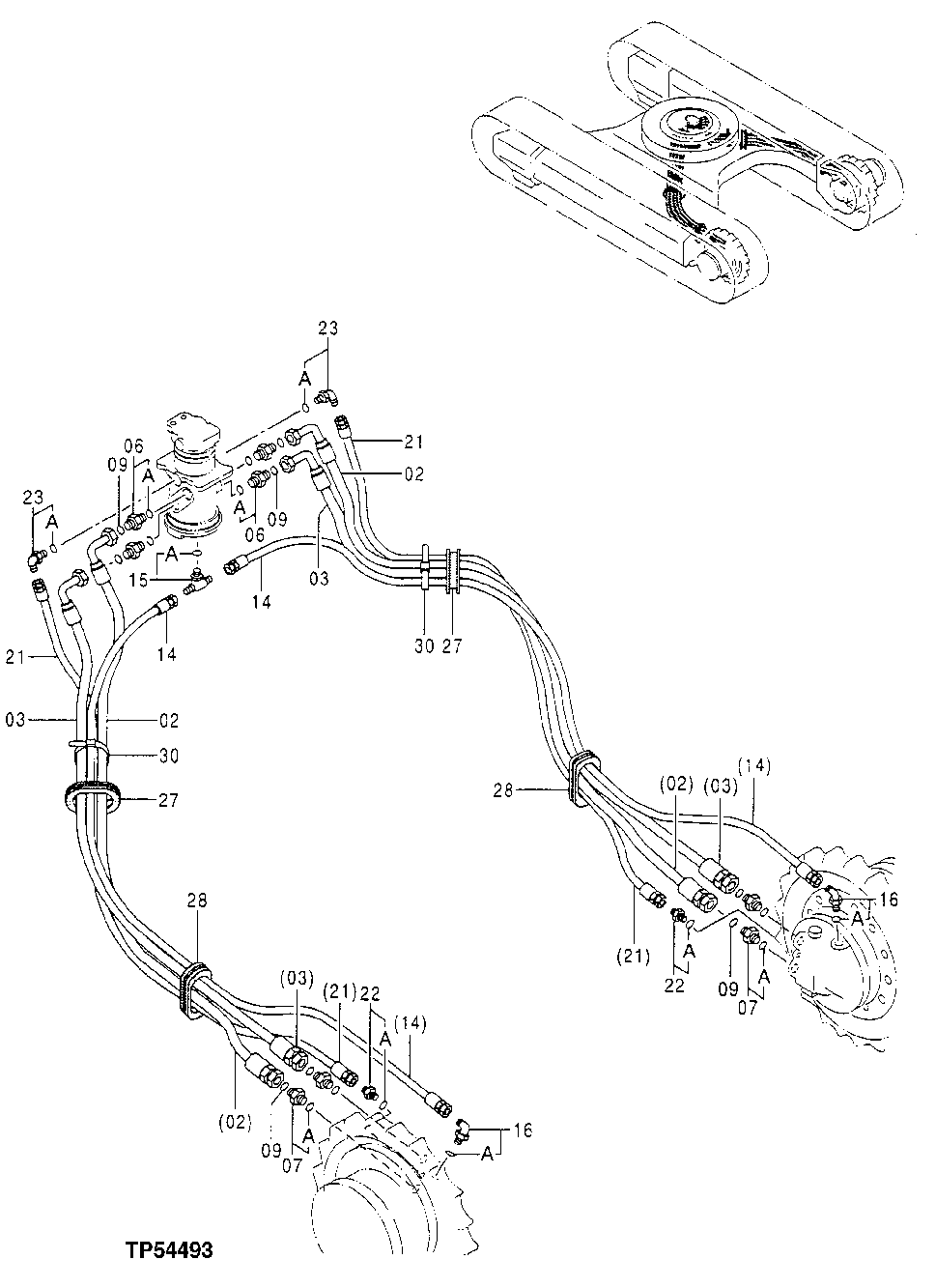

Запчасти John Deere 20 27 - TRAVEL PIPINGS 0260 HYDRAULIC SYSTEM

2

4219356

Hydraulic Hose

(SUB FOR P60456 OR P60471)

2шт.

3

4219356

Hydraulic Hose

(SUB FOR P60471)

2шт.

6

4188623

Fitting

(SUB FOR TH110492)

4шт.

6A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

7

4188623

Fitting

(SUB FOR TH110492)

4шт.

7A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

9

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

8шт.

14

AW22695

Hydraulic Hose

3/4" X 1800 mm (70-3/4") X 3/4"

2шт.

15

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

21

AE42281

Hydraulic Hose

(SUB FOR P63160)

2шт.

22

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

22A

M800650

Packing

1шт.

23

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

23A

M800650

Packing

1шт.

27

4334566

Bushing

(SUB FOR AT176630)

2шт.

28

4259604

Grommet

(SUB FOR AT154268)

2шт.

30

H77698

Tie Band

2шт.
