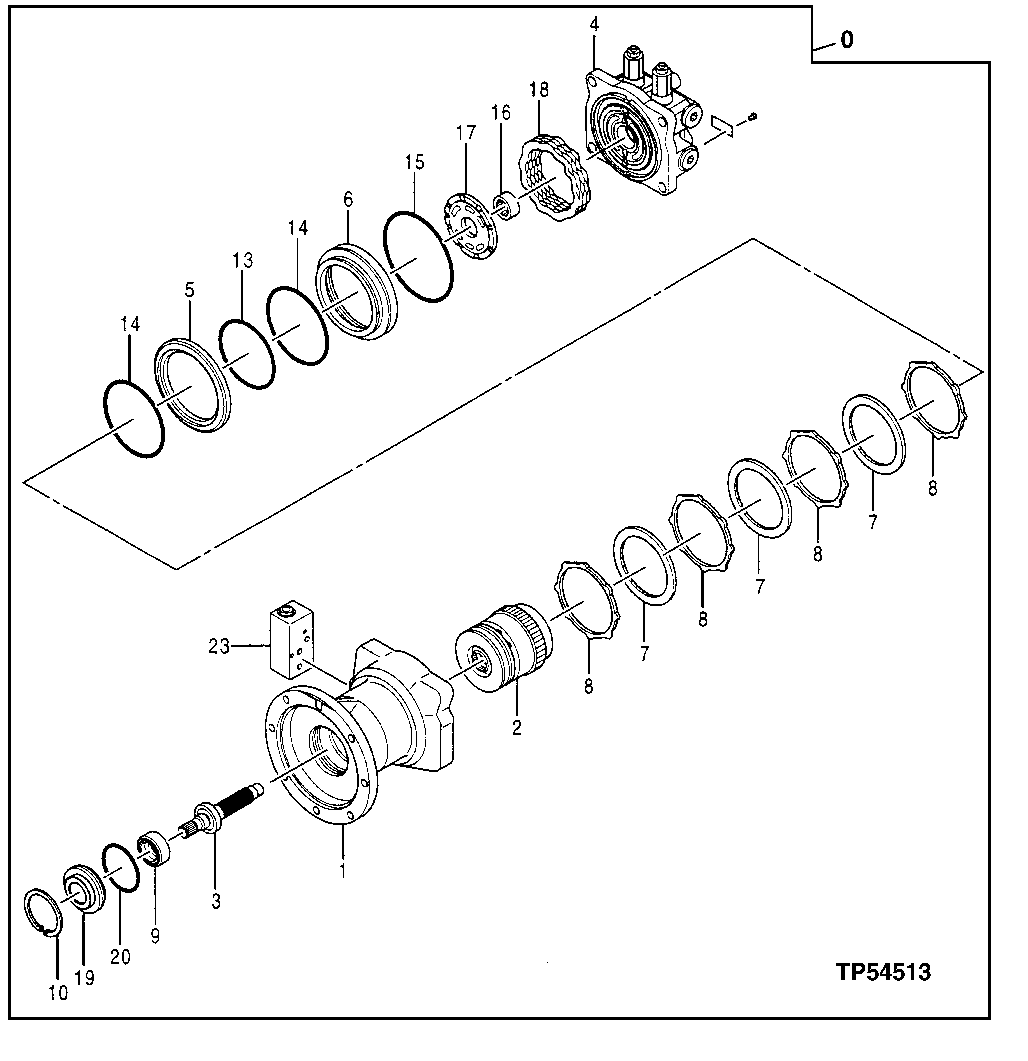

Запчасти John Deere 20 374 - Swing Device Motor 4360 Hydraulics

0

4330219EX

Hydraulic Motor Reman

SUB FOR AT215886 OR AT183681 Remanufactured

1шт.

4330219EX

Hydraulic Motor Reman

SUB FOR AT215886 OR AT183681 Remanufactured

1шт.

1

Housing

1шт.

2

4373197

Rotary Valve Sleeve

SUB FOR AT215979

1шт.

3

4373198

Shaft

SUB FOR AT215980

1шт.

4

4373199

Cover

SUB FOR AT215981

1шт.

5

0407701

Ring

SUB FOR AT153845

1шт.

6

0668602

Piston

SUB FOR AT215704

1шт.

7

0407703

Plate

SUB FOR AT153847

3шт.

8

0407704

Plate

SUB FOR AT153848

4шт.

9

0407705

Seal

SUB FOR AT153849

1шт.

10

40M7115

Snap Ring

SUB FOR AT153850 OR 0407706

1шт.

13

AT264224

O-Ring

SUB FOR TH100029 OR AT122159

1шт.

14

T74693

O-Ring

148.819 X 3.531 mm (5-55/64" X 0.139")

2шт.

15

0407708

O-Ring

SUB FOR AT153852 OR 4S00063

1шт.

16

0668603

Bearing

SUB FOR AT215705

1шт.

17

0668604

Plate

SUB FOR AT215706

1шт.

18

0668605

Disk Spring

SUB FOR AT215707

1шт.

19

0407711

Case

SUB FOR AT153855

1шт.

20

U44496

O-Ring

75.870 X 2.616 mm (2.987" X 0.103")

1шт.

23

4373200

Flow Control Hyd. Valve

SUB FOR AT215982

1шт.
