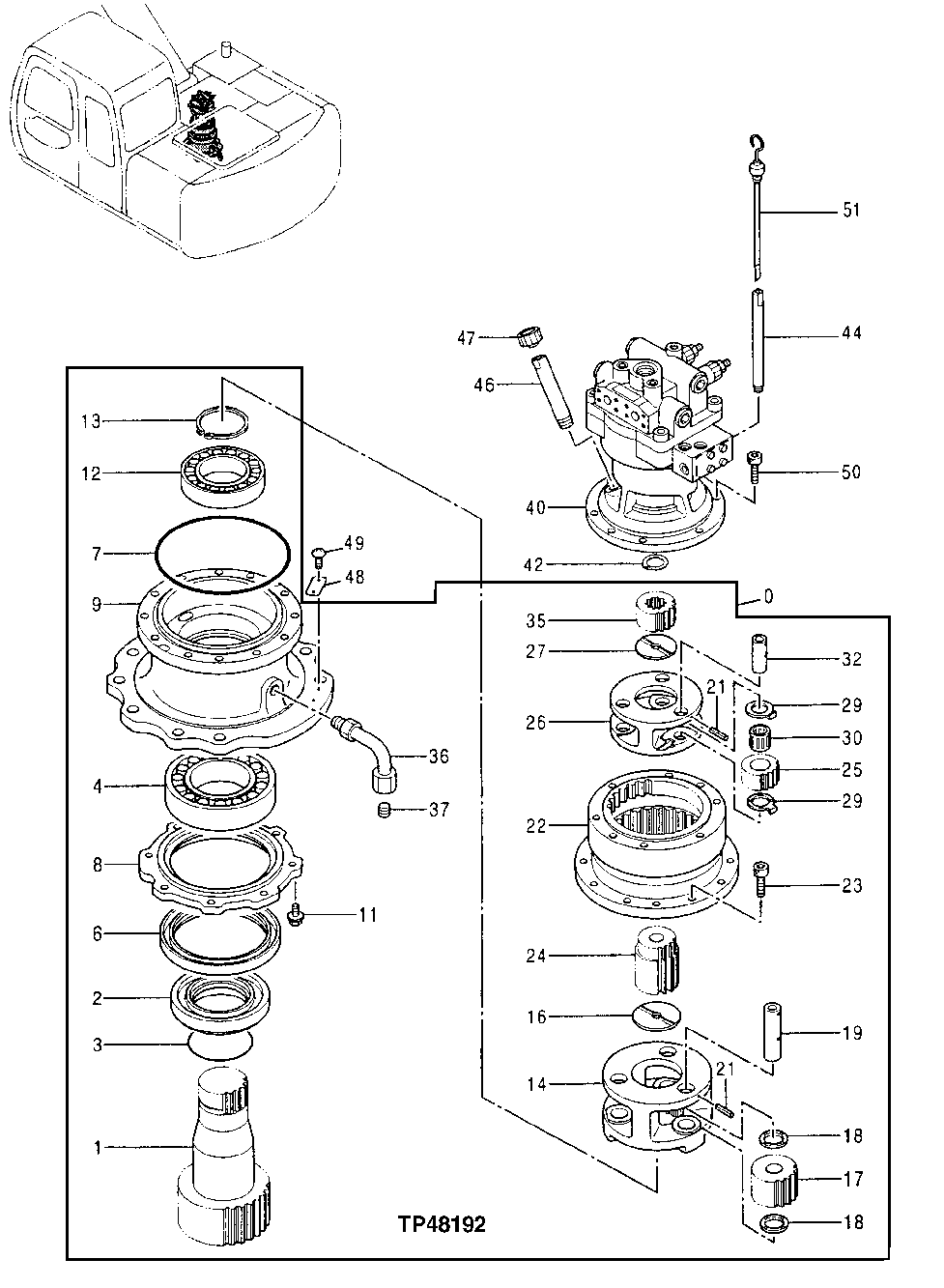

Запчасти John Deere 20 373 - Swing Device 4360 Hydraulics

0

9148921

Device

SUB FOR AT216011, SWING D EVICE WITHOUT SWING MOTOR

1шт.

1

2036830

Shaft

SUB FOR AT215845

1шт.

2

4244693

Sleeve

SUB FOR AT154178

1шт.

3

AT264319

O-Ring

99.400 X 3.100 mm (3.913" X 0.122") SUB FOR T110447

1шт.

4

TH109489

Spherical Roller Bearing

1шт.

6

AT154177

Seal

1шт.

7

AT154182

O-Ring

214.300 X 3.100 mm (8-7/16" X 0.122")

1шт.

8

3058620

Cover

SUB FOR AT158506

1шт.

9

1020380

Housing

SUB FOR AT215834

1шт.

11

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

TH108271

Spherical Roller Bearing

1шт.

13

40M7150

Snap Ring

1шт.

14

2036804

Planet Pinion Carrier

SUB FOR AT215843

1шт.

16

4258089

Plate

SUB FOR AT154249

1шт.

17

9742788

Gear

SUB FOR AT216025

3шт.

18

4266255

Plate

SUB FOR AT154298

6шт.

19

4337638

Bushing

SUB FOR AT215902

3шт.

21

4116308

Spring Pin

SUB FOR AT215878

6шт.

22

2036811

Ring Gear

SUB FOR AT215844

1шт.

23

M341440

Screw

SUB FOR AT201961

12шт.

24

3069697

Sun Gear

SUB FOR AT215858

1шт.

25

3069725

Gear

SUB FOR AT215859

3шт.

26

2036832

Planet Pinion Carrier

SUB FOR AT215846

1шт.

27

4641995

Plate

SUB FOR TH108259 OR 4176070

1шт.

29

4269480

Plate

SUB FOR AT154307

6шт.

30

4330377

Needle Bearing

SUB FOR AT215887

3шт.

32

4337637

Bushing

SUB FOR AT215901

3шт.

35

3069727

Sun Gear

SUB FOR AT215860

1шт.

36

8050210

Line

SUB FOR AT154499

1шт.

37

94-2012

Fitting Plug

SUB FOR TH100653

1шт.

40

Motor

4330219 NLA, SUB FOR AT215886

1шт.

Motor

REMAN AT183681 OR 4330219EX NLA

1шт.

42

40M7084

Snap Ring

1шт.

44

4264452

Tube

SUB FOR AT154293

1шт.

46

4255227

Line

SUB FOR AT154226

1шт.

47

4298608

Cap

SUB FOR AT154225

1шт.

48

Identification Plate

1шт.

49

37H99

Screw

0.100" X 1/4"

2шт.

50

19M8440

Screw

M10 X 25

7шт.

51

3074223

Dipstick

SUB FOR AT213790

1шт.
