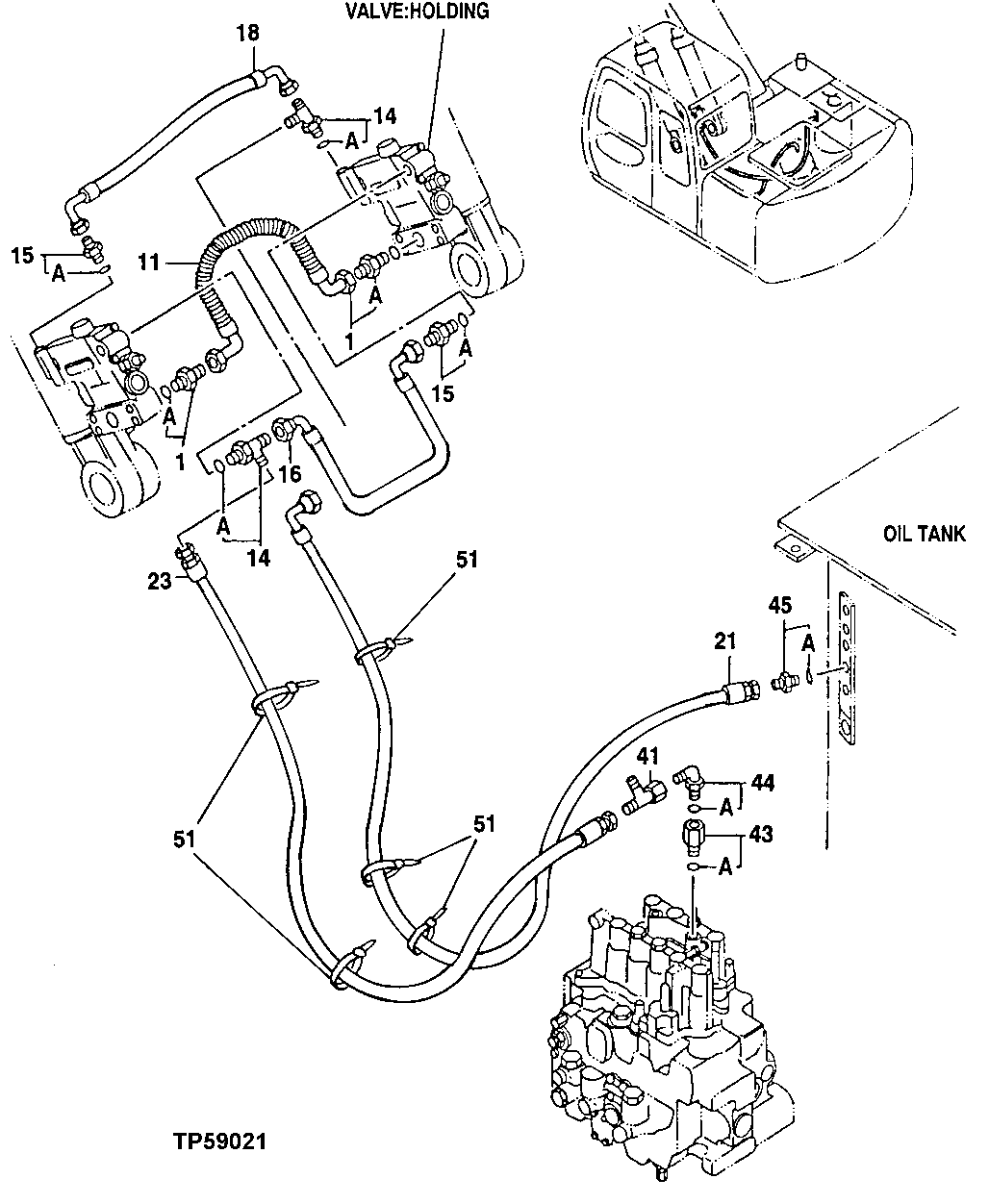

Запчасти John Deere 20 367 - LOAD LOWERING VALVE BOOM PIPINGS 3360 HYDRAULIC SYSTEM

1

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

1A

M800650

Packing

1шт.

11

AT172345

Hydraulic Hose

1шт.

14

4205363

Tee Fitting

(SUB FOR AT126362)

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4200466

Adapter Fitting

(SUB FOR TH108320)

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

AT172346

Hydraulic Hose

1шт.

18

AT172348

Hydraulic Hose

1шт.

21

AT179149

Hydraulic Hose

1шт.

23

AT179150

Hydraulic Hose

1шт.

41

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

43

4202564

Adapter Fitting

(SUB FOR AT215879)

1шт.

43A

M800650

Packing

1шт.

44

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

44A

M800650

Packing

1шт.

45

4261938

Fitting

(SUB FOR AT154285)

1шт.

45A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

51

H77698

Tie Band

5шт.

60

Kit

( AT179147 NO LONGER AVAILABLE) (LOAD L OWERING) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS LISTED ON THIS PAGE - ADDITIONAL CO MPONENTS ON PREVIOUS AND FOLLOWING PAGES)

1шт.
