Запчасти John Deere 20 364 - AUXILIARY HYDRAULIC HOSES AND LINES KIT (BOOM AND ARM)(FIELD) 3360 HYDRAULIC SYSTEM

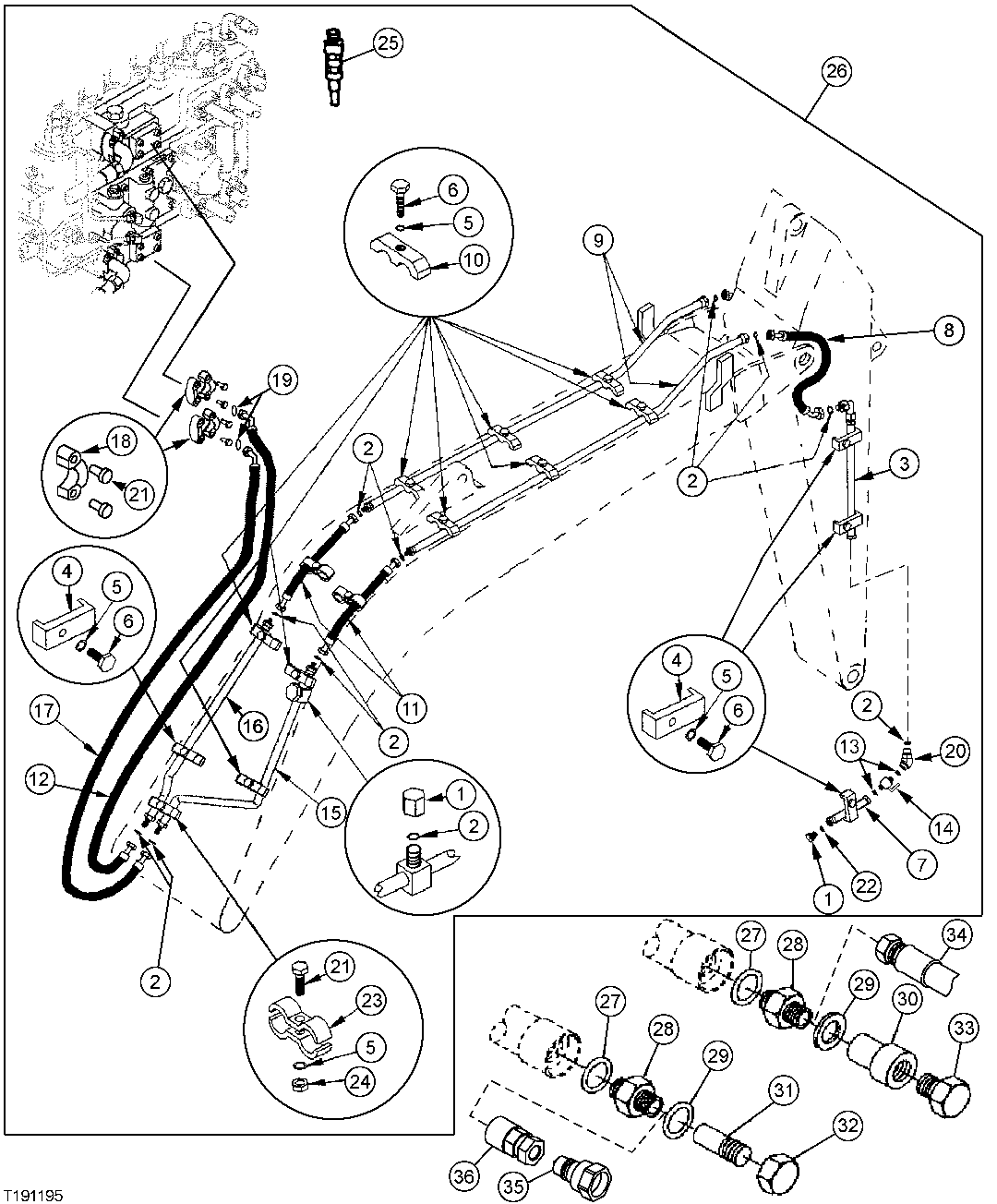

Схема запчастей John Deere 20 - 364 - AUXILIARY HYDRAULIC HOSES AND LINES KIT (BOOM AND ARM)(FIELD) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

38H1418

Fitting

3шт.

2

T77858

O-Ring

13шт.

3

AT160177

Oil Tube

2шт.

4

4190126

Clamp

7шт.

5

12H301

Lock Washer

1/2"

17шт.

6

19M7363

Cap Screw

M12 X 60

16шт.

7

38H1215

Adapter Fitting

2шт.

8

AT160176

Hydraulic Hose

2шт.

9

AT160159

Oil Tube

2шт.

10

4141806

Clamp

9шт.

11

AT160161

Hydraulic Hose

2шт.

12

AP33342

Hose

1шт.

13

U12547

O-Ring

4шт.

14

AT197375

Ball Cock Valve

2шт.

15

AP33323

Pipe

1шт.

16

AP33324

Pipe

1шт.

17

AP33343

Hydraulic Hose

Fabricate

1шт.

18

R29424

Flange Fitting

4шт.

19

T59014

O-Ring

2шт.

20

38H1431

Elbow Fitting

2шт.

21

19M8337

Screw

M10 X 30

8шт.

22

T76938

O-Ring

2шт.

23

4202103

Clamp

2шт.

24

14M7295

Nut

M12

1шт.

25

9200504

Pressure Relief Valve

2шт.

26

Field Installation Kit

(WHOLE GOODS) ( AT197400 NLA)

1шт.

27

U12547

O-Ring

2шт.

28

38H1179

Adapter Fitting

(ALSO ORDER T76938)(1" ORFS)

2шт.

38H1215

Adapter Fitting

(ALSO ORDER T77858)(3/4" ORFS)

2шт.

AT83306

Adapter Fitting

(1" SAE, MALE)

2шт.

R27267

Fitting

(3/4" 37 DEGREE)

2шт.

T34433

Adapter Fitting

(1" 37 DEGREE)

2шт.

29

R29936

O-Ring

2шт.

30

AT186111

Quick Coupler

(1" FEMALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NO LONGER AVAILABLE)

1шт.

31

AT186112

Quick Coupler

(1" MALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189409 NO LONGER AVAILABLE)

1шт.

32

AT186113

Cap

1шт.

33

AT186114

Plug

1шт.

34

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

35

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

36

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

Выбрано товаров: 45
