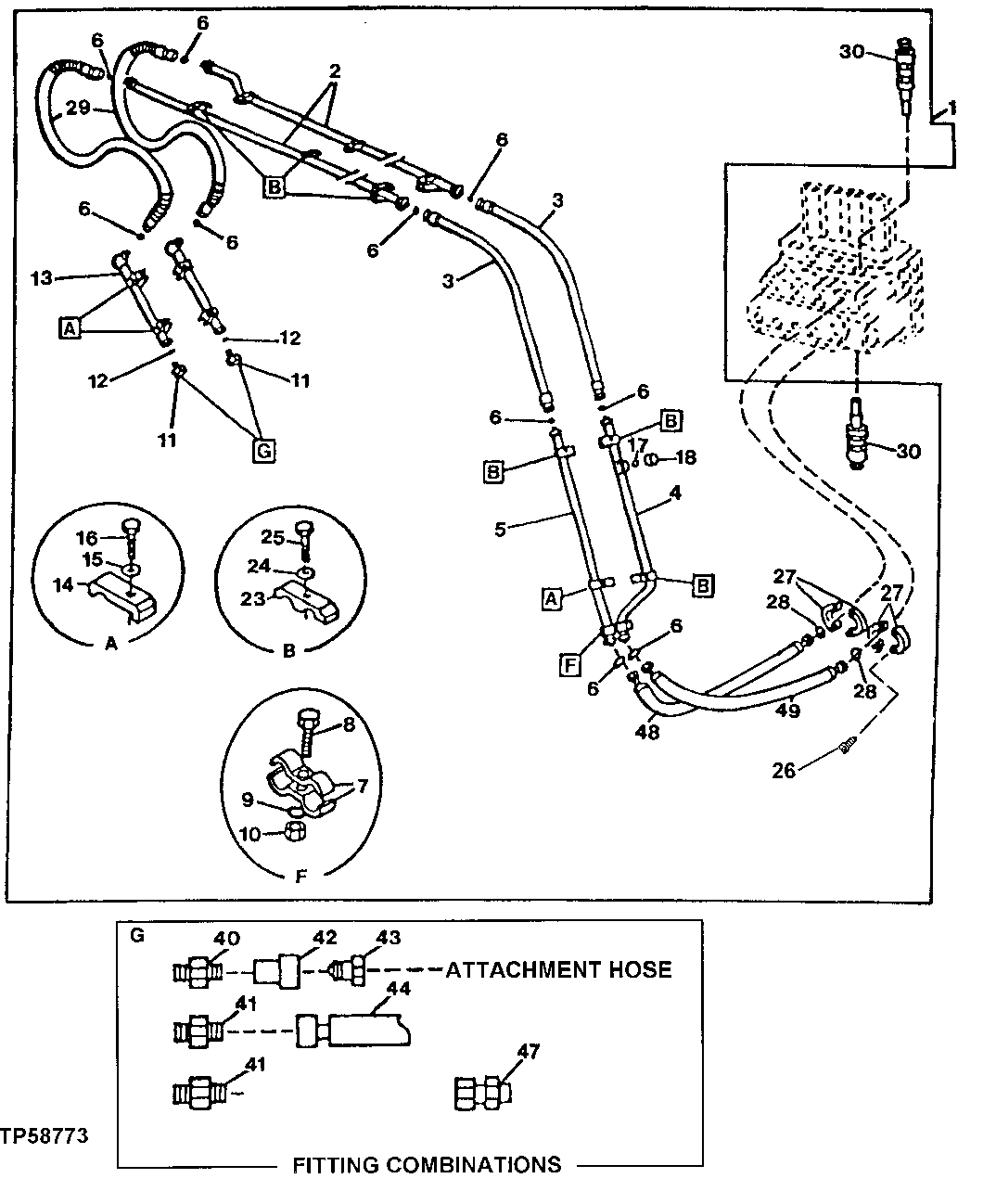

Запчасти John Deere 20 363 - AUXILIARY HYDRAULIC PLUMBING 3360 HYDRAULIC SYSTEM

1

Kit

(AUXILIARY LINES) ( AT181183 NLA)

1шт.

2

AT160159

Oil Tube

2шт.

3

AT160161

Hydraulic Hose

30.1752" X 1295 mm (51") X 30.1752"

2шт.

4

AP33323

Pipe

1шт.

5

AP33324

Pipe

1шт.

6

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

10шт.

7

4202103

Clamp

(SUB FOR TH108302)

2шт.

8

19M7361

Cap Screw

M12 X 50

1шт.

9

12H301

Lock Washer

1/2"

1шт.

10

14M7275

Nut

M12

1шт.

11

38H1150

Fitting Plug

2шт.

12

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

13

AT160177

Oil Tube

2шт.

14

4190126

Clamp

(SUB FOR TH109830)

5шт.

15

12H301

Lock Washer

1/2"

5шт.

16

19M7363

Cap Screw

M12 X 60

5шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

18

38H1418

Fitting

1шт.

23

4141806

Clamp

(SUB FOR TH100968)

9шт.

24

12H301

Lock Washer

1/2"

9шт.

25

19M7363

Cap Screw

M12 X 60

9шт.

26

19M8337

Screw

M10 X 30

8шт.

27

R29424

Flange Fitting

4шт.

28

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

29

AT160176

Hydraulic Hose

30.1752" X 1397 mm (55") X 30.17 52" (USE WITH 2.96M STANDARD ARM)

2шт.

30

9200504

Pressure Relief Valve

(SUB FOR AT155692 OR 4261539)

2шт.

40

38H1179

Adapter Fitting

(-16) 1 IN ORFS X (-12) 3/4 IN SAE O-RING

2шт.

4189601

Adapter Fitting

(SUB FOR AT107394)(-16) 1 IN ORFS X (-12) 3/4 IN BSPP

2шт.

38H1164

Adapter Fitting

(-16) 1 IN ORFS X (-16) 1 IN SAE O-RING

2шт.

4189535

Adapter Fitting

(SUB FOR AT114853)(-16) 1 IN ORFS X (-16) 1 IN BSPP

2шт.

41

38H1281

Union Fitting

(-16) 1 IN ORFS X (-16) 1 IN ORFS

2шт.

38H1495

Adapter Fitting

(-16) 2 INCH ORFS X (-12) 3/4 IN NPT

2шт.

42

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

44

X1JS71-16-12

Hose Fitting

HOSE END - STRAIGHT - 1 IN X 3/4 IN

2шт.

47

38H1483

Reducer

(1 IN ORFS X 3/4 IN ORFS)

2шт.

48

AP33342

Hose

(PRESSURE)

1шт.

49

AP33343

Hydraulic Hose

Fabricate (RETURN)

1шт.
