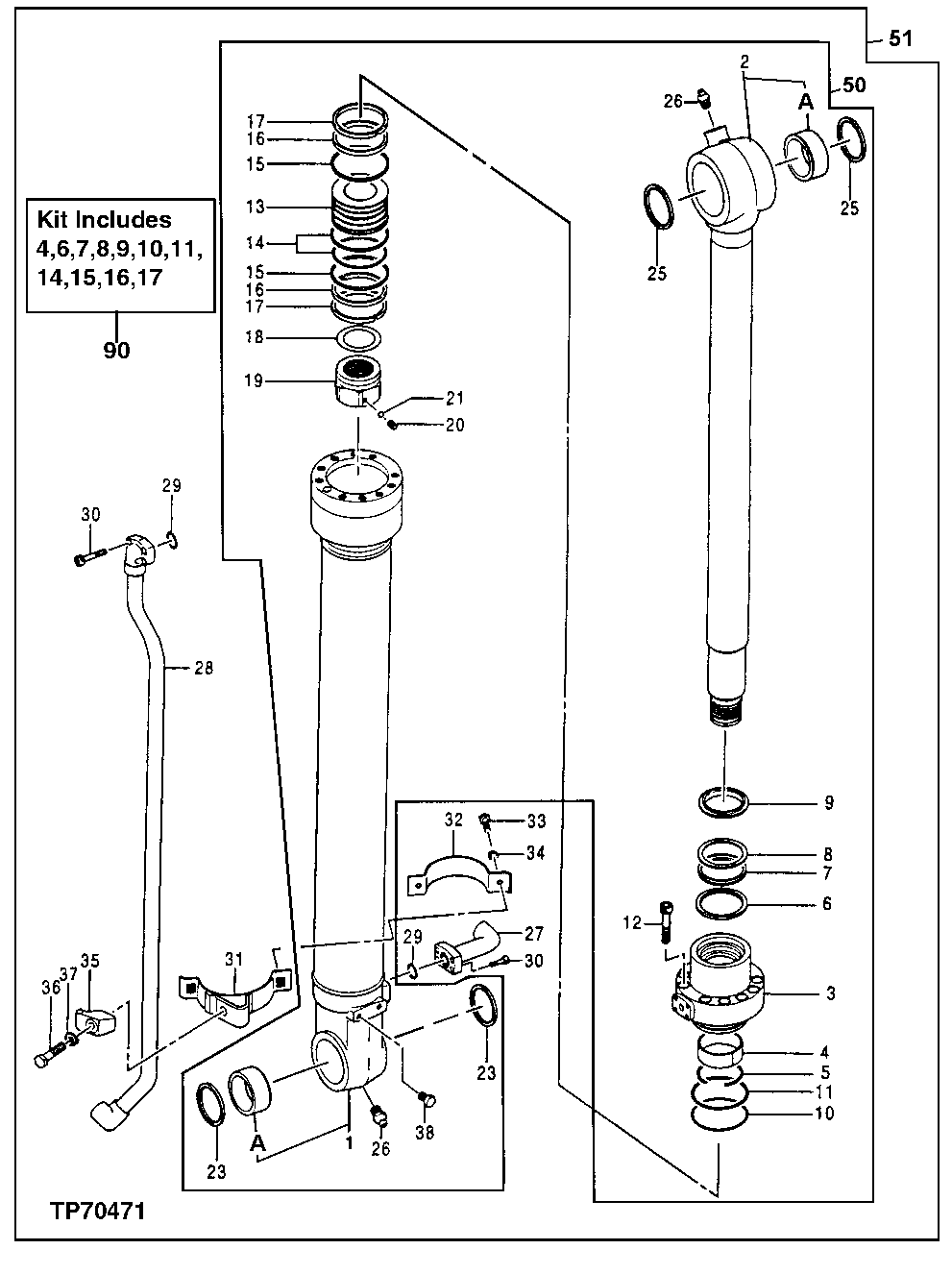

Запчасти John Deere 20 356 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

1

AH150696

Hydraulic Cylinder Barrel

1шт.

1A

H157794

Bushing

1шт.

2

AH234895

Rod

SUB FOR AH150594

1шт.

2A

H157793

Bushing

1шт.

3

H155194

Hydr. Cylinder Rod Guide

1шт.

4

AT264389

Wear Ring

(K) SUB FOR TH109372

1шт.

5

4510494

Snap Ring

SUB FOR TH106169

1шт.

6

AT153949

Ring

(K)

1шт.

7

AT264374

Seal

(K) SUB FOR TH105764

1шт.

8

AT264375

Back-Up Ring

(K) SUB FOR TH105765

1шт.

9

H158164

Scraper Ring

(K)

1шт.

10

CH18696

Packing

(K)

1шт.

11

AT264391

Back-Up Ring

(K) SUB FOR TH109374

1шт.

12

19M8929

Screw

M14 X 55

10шт.

13

H158173

Piston

1шт.

14

AT264392

Ring

(K) SUB FOR TH109376

1шт.

15

AT153951

Back-Up Ring

(K)

2шт.

16

H158170

Scraper Ring

(K)

2шт.

17

AT264394

Ring

(K) SUB FOR TH109378

2шт.

18

TH110253

Shim

SUB FOR 0326007

1шт.

19

H158175

Nut

1шт.

20

22M7139

Set Screw

M10 X 10

1шт.

21

400R

Ball

6.350 mm (1/4")

1шт.

23

TH105979

Seal

2шт.

25

TH100374

Seal

2шт.

26

TH100074

Lubrication Fitting

2шт.

27

8086116

Oil Line

SUB FOR AT153957 OR 0409113

1шт.

28

4S00342

Line

SUB FOR AH149463

1шт.

29

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

2шт.

30

19M8439

Screw

M8 X 25

8шт.

31

AH234868

Clamp

SUB FOR AH150599

1шт.

32

0409116

Band

SUB FOR AT153960

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

34

12M7066

Lock Washer

10 mm

2шт.

35

0310616

Clamp

SUB FOR TH109386

1шт.

36

19M7361

Cap Screw

M12 X 50

2шт.

37

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

38

19M8017

Cap Screw

M12 X 20

2шт.

50

Hydraulic Cylinder

AH153170 NO LONGER AVAILABLE

1шт.

51

9150151JEX

Hydraulic Cylinder Reman

SUB FOR AH148041, SUB FOR AH163275

1шт.

90

AH150595

Hydraulic Cylinder Kit

INCLUDES ALL (K) PARTS, SEAL

1шт.
