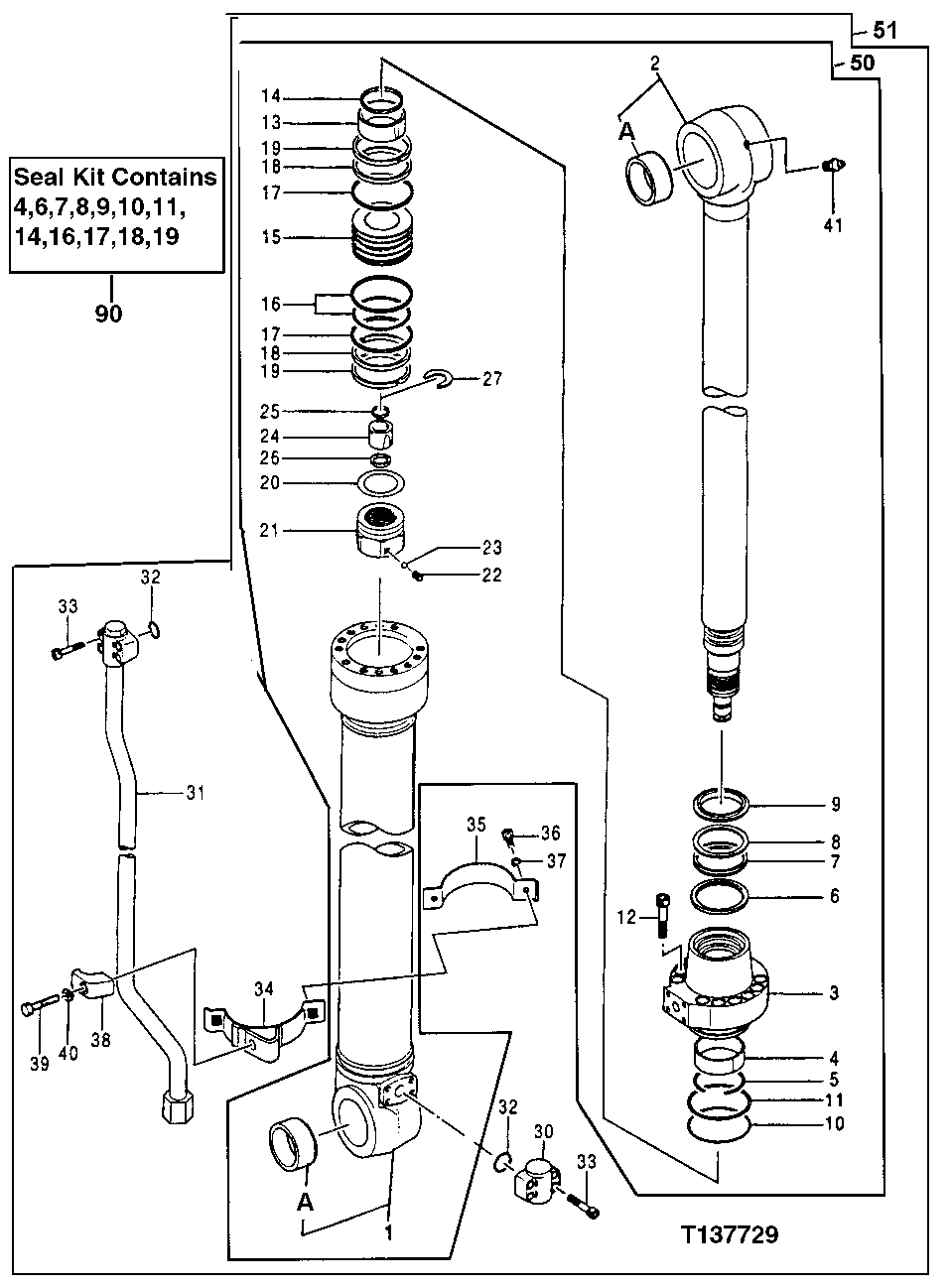

Запчасти John Deere 20 355 - Arm Cylinder 3360 HYDRAULIC SYSTEM

0

TH104472

Seal

Not Illustrated

4шт.

1

Hydraulic Cylinder Barrel

NSEP

1шт.

1A

4352400

Bushing

1шт.

2

AH149795

Hydraulic Cylinder Rod

ALSO ORDER (2) TH104472

1шт.

2A

4352400

Bushing

1шт.

3

H155195

Hydr. Cylinder Rod Guide

1шт.

4

AT264314

Wear Ring

SUB FOR T108041

1шт.

5

AT132690

Snap Ring

SUB FOR 4004663

1шт.

6

AT264261

Ring

SUB FOR 0409004 OR AT153931

1шт.

7

AT264357

Seal

SUB FOR TH104925

1шт.

8

AT264358

Back-Up Ring

SUB FOR TH104926

1шт.

9

H157235

Seal

1шт.

10

AT264223

O-Ring

SUB FOR AT121852 OR A811105

1шт.

11

AT264259

Back-Up Ring

SUB FOR AT153829

1шт.

12

19M8930

Screw

M14 X 65

12шт.

13

0409005

Bearing

SUB FOR AT153932

1шт.

14

H157237

Seal

(K)

1шт.

15

H155876

Piston

1шт.

16

AT264386

Ring

SUB FOR TH106872 OR 0240915

1шт.

17

AT264262

Back-Up Ring

SUB FOR 0409008 OR AT153935

2шт.

18

H155873

Back-Up Ring

2шт.

19

0298907

Ring

SUB FOR 4S00156

2шт.

20

AT153937

Shim

SUB FOR 0409010

1шт.

21

H155879

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

24

AT153939

Bearing

SUB FOR 0409012

1шт.

25

H157238

Seal

1шт.

26

AT153941

Stop

SUB FOR 0409014

2шт.

27

AT153942

Ring

SUB FOR 0409015

1шт.

30

Universal Joint

0409016 NLA SUB FOR AT153943

1шт.

0796601

Universal Joint

ALSO ORDER A853166, 19M7662, AND 12M7066

1шт.

31

AH234897

Oil Line

AH149468 NLA SUB FOR AH218340

1шт.

32

AT264360

O-Ring

SUB FOR TH104930 OR 4506430

2шт.

33

19M7550

Cap Screw

M10 X 35

8шт.

34

AH234865

Clamp

SUB FOR AH148780

1шт.

35

0327410

Band

SUB FOR AT127333

1шт.

36

19M7550

Cap Screw

M10 X 35

2шт.

37

12M7066

Lock Washer

10 mm

2шт.

38

H238070

Clamp

SUB FOR T108036

1шт.

39

19M7362

Cap Screw

M12 X 55

1шт.

40

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

41

TH100074

Lubrication Fitting

1шт.

42

A853166

Adapter Fitting

Not Illustrated

1шт.

43

19M7662

Cap Screw

M10 X 30 Not Illustrated

4шт.

44

12M7066

Lock Washer

10 mm Not Illustrated

4шт.

50

AH149792

Hydraulic Cylinder

USE IF AVAILABLE, IF AH14979 2 NOT AVAILABLE, SUB AH148042

1шт.

51

AH148042

Hydraulic Cylinder

1шт.

90

AH149796

Hydraulic Cylinder Kit

1шт.
