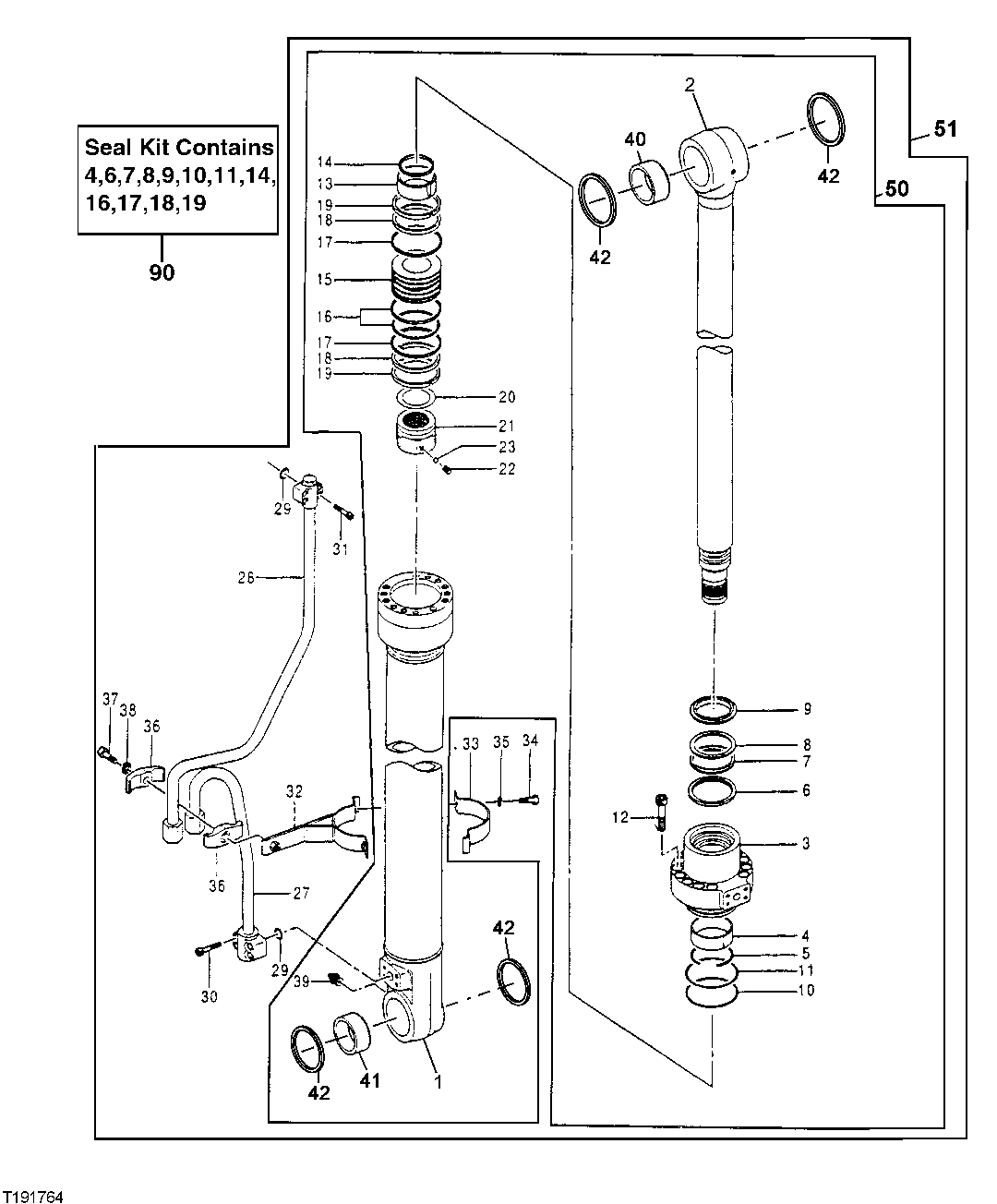

Запчасти John Deere 20 351 - Right Boom Cylinder Components 3360 HYDRAULIC SYSTEM

1

Hydraulic Cylinder Barrel

NSEP

1шт.

2

AH151106

Hydraulic Cylinder Rod

1шт.

3

H155196

Hydr. Cylinder Rod Guide

1шт.

4

AT133645

Bushing

(K)

1шт.

5

0271304

Snap Ring

SUB FOR AT133631

1шт.

6

AT153914

Ring

(K)

1шт.

7

AT264256

Packing

(K) SUB FOR 0271309, AT133633

1шт.

8

AT264257

Back-Up Ring

(K) SUB FOR 0271310, AT133634

1шт.

9

H158453

Scraper Ring

(K)

1шт.

10

AT264319

O-Ring

(K) 99.400 X 3.100 mm (3.91 3" X 0.122") SUB FOR T110447

1шт.

11

TH109318

Back-Up Ring

(K)

1шт.

12

19M8930

Screw

M14 X 65

12шт.

13

0408806

Bearing

SUB FOR AT153916

1шт.

14

H158461

Seal

(K)

1шт.

15

H158463

Piston

1шт.

16

AT264387

Ring

(K) SUB FOR TH109322

1шт.

17

AT153919

Back-Up Ring

(K)

2шт.

18

H158459

Scraper Ring

(K)

2шт.

19

AT264388

Ring

(K) SUB FOR TH109324, 0310510 AND 4S00155

2шт.

20

TH109328

Shim

SUB FOR 0310514

1шт.

21

H158465

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

27

AH234632

Oil Line

SUB FOR AH149467

1шт.

28

AH234629

Oil Line

SUB FOR AH149466

1шт.

29

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

2шт.

30

19M8213

Screw

M10 X 50 SUB FOR 19M8904, THIS APPLICATION

4шт.

31

T116311

Bolt

M8 X 40 SUB FOR 19M8123, THIS APPLICATION

4шт.

32

0408814

Band

SUB FOR AT153923

1шт.

33

0310707

Band

SUB FOR TH109335

1шт.

34

19M7550

Cap Screw

M10 X 35

2шт.

35

12M7066

Lock Washer

10 mm

2шт.

36

TH109337

Clamp

2шт.

37

19M8348

Cap Screw

M12 X 65

1шт.

38

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

39

TH100074

Lubrication Fitting

1шт.

40

0140808

Bushing

SUB FOR TH104905

1шт.

41

H157792

Bushing

1шт.

42

TH104472

Seal

4шт.

50

AH153168

Hydraulic Cylinder

USE IF AVAILABLE; IF AH15316 8 NOT AVAILABLE, SUB AH148039

1шт.

51

AH148039

Hydraulic Cylinder

1шт.

90

AH151107

Hydraulic Cylinder Kit

INCLUDES ALL (K) PARTS, SEAL

1шт.
