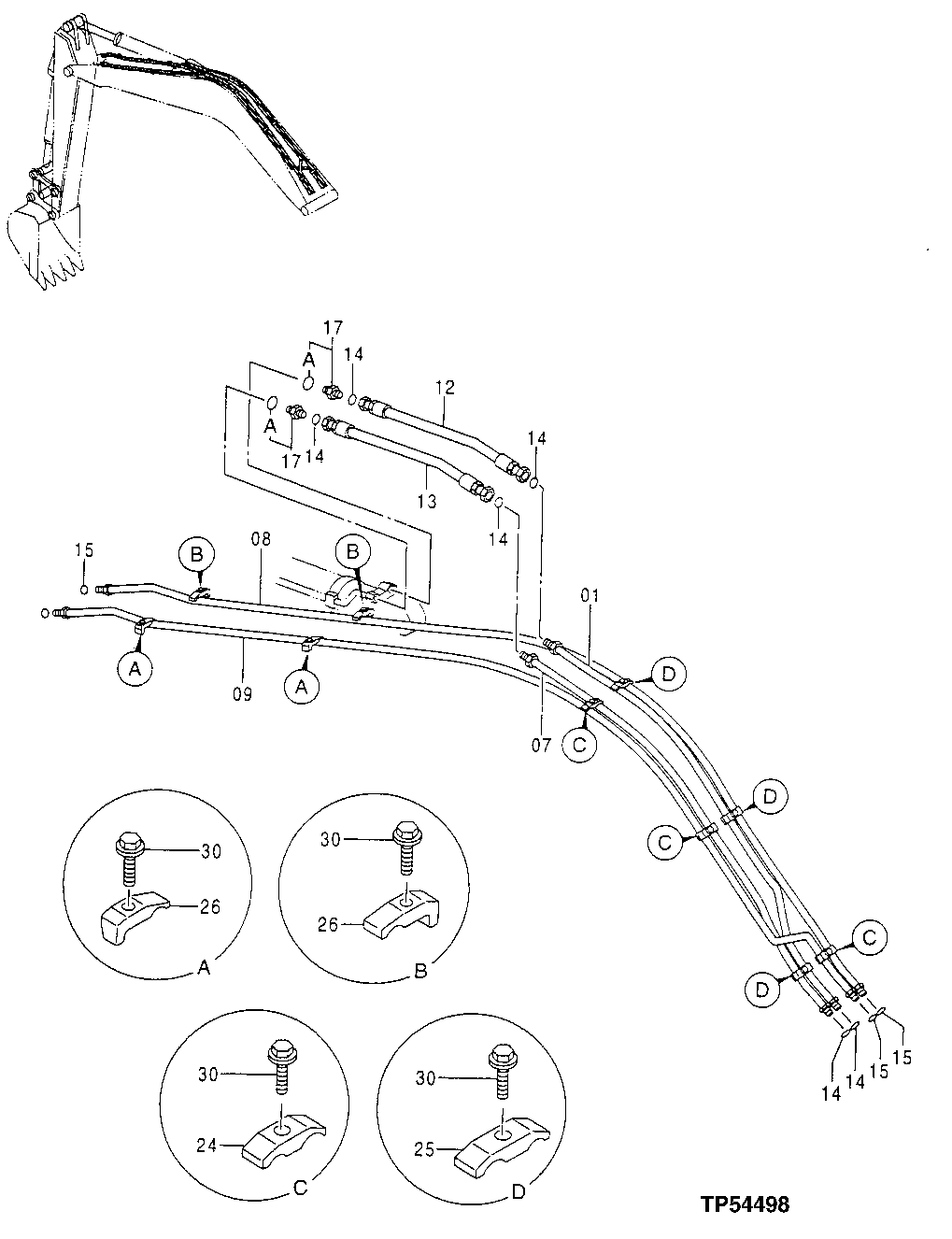

Запчасти John Deere 20 347 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

1

8061059

Line

(SUB FOR AP33529)

1шт.

7

8061058

Line

(SUB FOR AP33528)

1шт.

8

AP33519

Pipe

1шт.

9

AP33527

Pipe

1шт.

12

4260127

Hydraulic Hose

(SUB FOR AT131297)

1шт.

13

4260127

Hydraulic Hose

(SUB FOR AT131297)

1шт.

14

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

6шт.

15

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

4шт.

17

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

17A

R27149

O-Ring

23.393 X 3.531 mm (0.921" X 0.139")

1шт.

24

4189858

Clamp

(SUB FOR TH108333)

3шт.

25

4141806

Clamp

(SUB FOR TH100968)

3шт.

26

4190125

Clamp

(SUB FOR TH108960)

4шт.

30

19M7362

Cap Screw

M12 X 55

10шт.

12H301

Lock Washer

1/2"

10шт.
