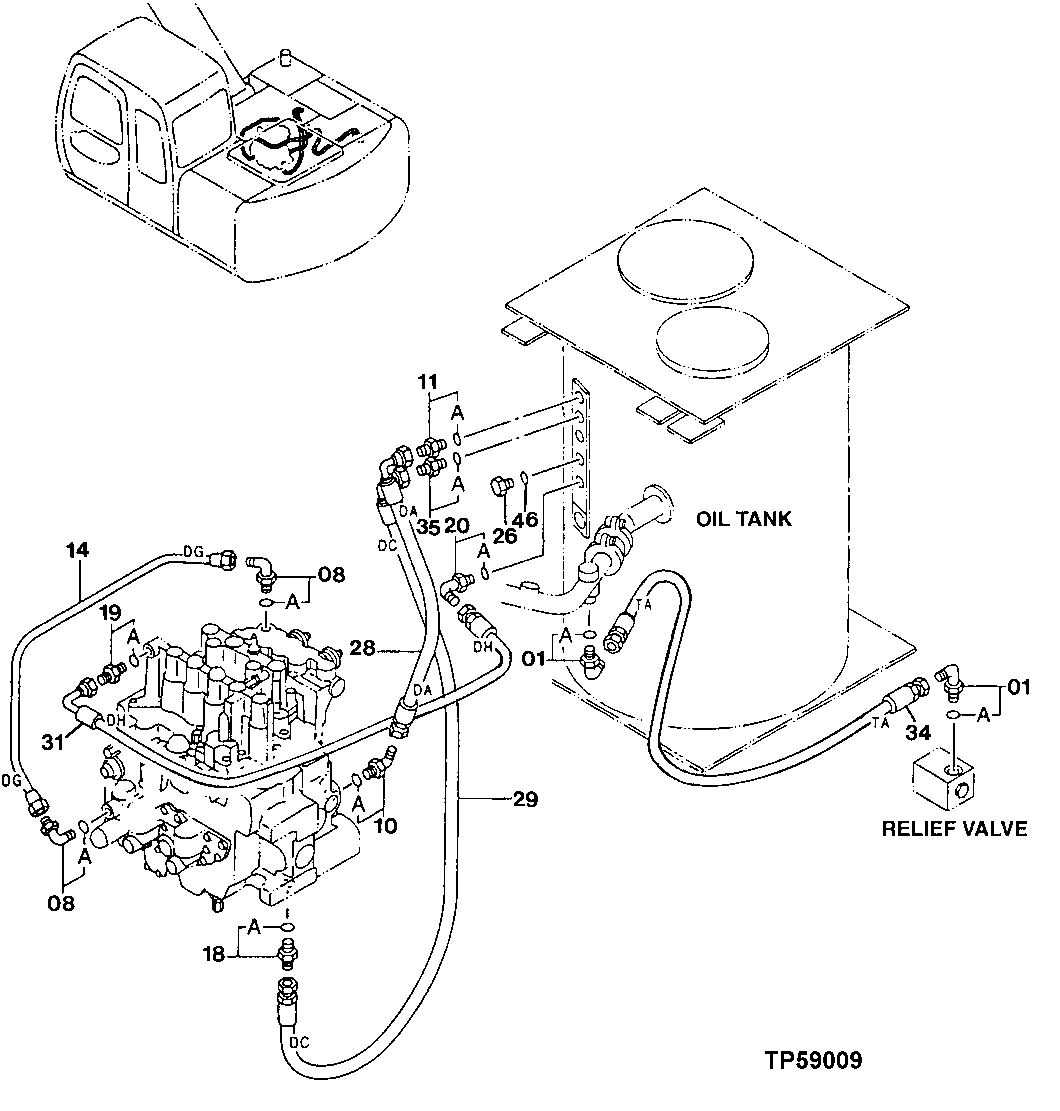

Запчасти John Deere 20 345 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

1A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

8

4293950

Fitting

(SUB FOR AT160584)

2шт.

8A

M800650

Packing

1шт.

10

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

10A

M800650

Packing

1шт.

11

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

11A

M800650

Packing

1шт.

14

P61623

Pipe

1шт.

18

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

18A

M800650

Packing

1шт.

19

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

19A

M800650

Packing

1шт.

20

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

20A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

1шт.

28

P61641

Hydraulic Hose

1шт.

29

P61642

Hydraulic Hose

1шт.

31

AP34082

Hydraulic Hose

1шт.

34

P64263

Hydraulic Hose

1шт.

35

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

35A

M800650

Packing

1шт.

46

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
