Запчасти John Deere 20 344 - PILOT PIPINGS, RIGHT JOYSTICK 3360 HYDRAULIC SYSTEM

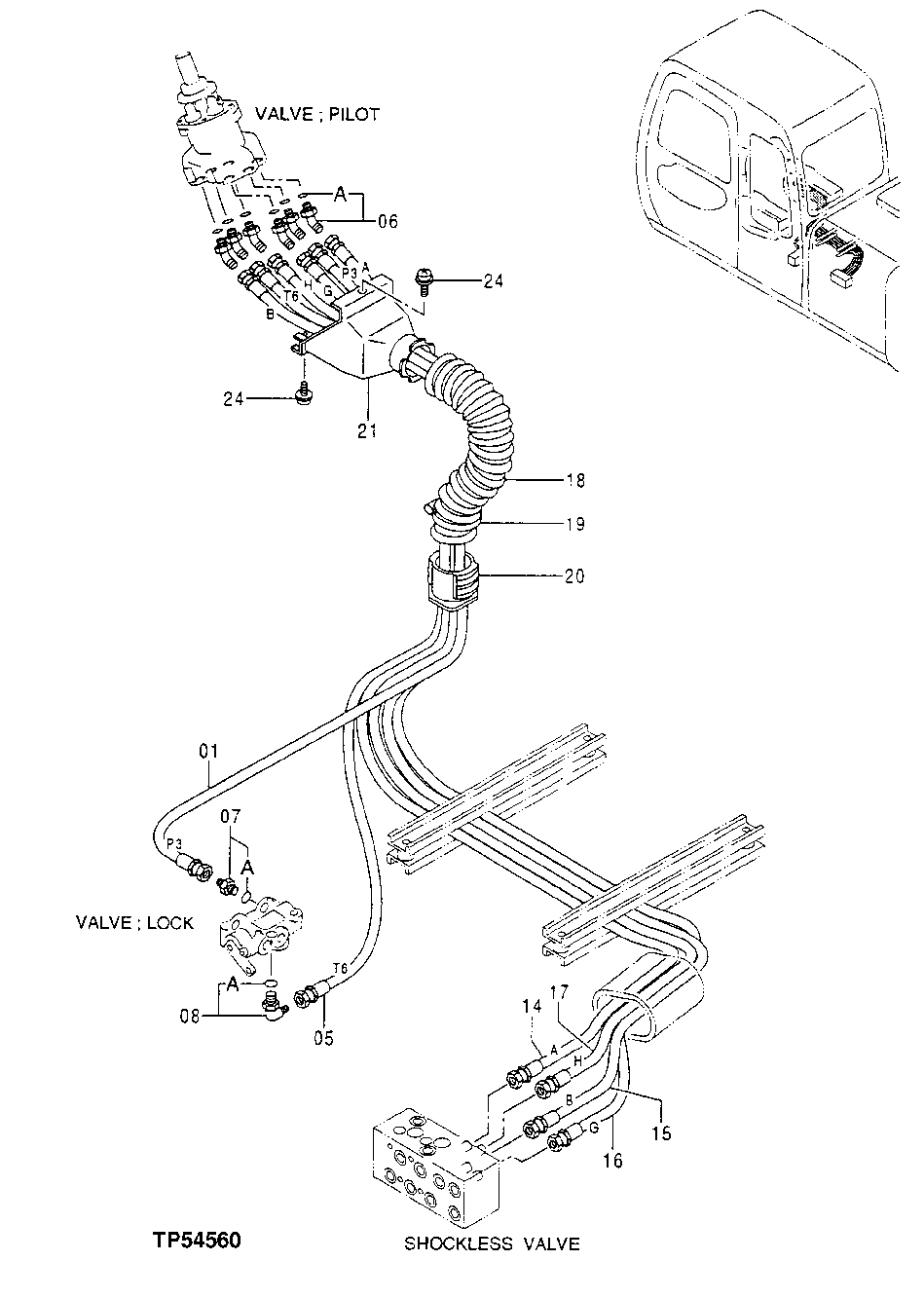

Схема запчастей John Deere 20 - 344 - PILOT PIPINGS, RIGHT JOYSTICK 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

AT215542

Hydraulic Hose

1шт.

5

AT217773

Hydraulic Hose

(SUB FOR AT215543)

1шт.

6

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

6A

M800650

Packing

1шт.

7

4367031

Filter

(SUB FOR AT214033)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

AT215544

Hydraulic Hose

1шт.

15

AT201251

Hydraulic Hose

1шт.

16

AT215524

Hydraulic Hose

1шт.

17

AT215525

Hydraulic Hose

1шт.

18

4351175

Hose

(SUB FOR AT213957)

1шт.

19

4351774

Clamp

(SUB FOR AT213962)

1шт.

20

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

21

3072745

Cover

(SUB FOR AT213784)

1шт.

24

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

Выбрано товаров: 20
