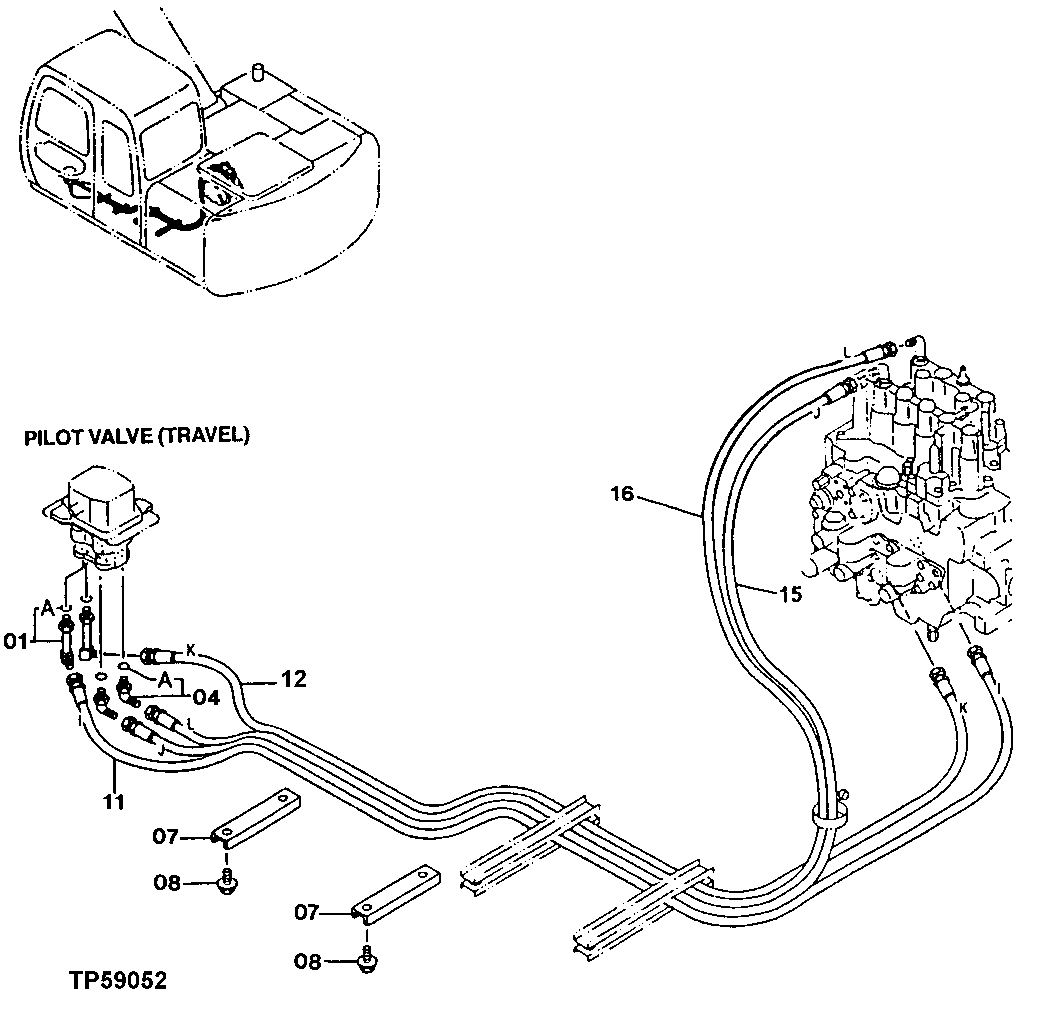

Запчасти John Deere 20 340 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR AT204940 ) (SUB FOR TH101930)

2шт.

1A

M800650

Packing

1шт.

4

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

2шт.

4A

M800650

Packing

1шт.

7

4342692

Channel

(SUB FOR AT213888)

2шт.

8

19M8324

Cap Screw

M10 X 16

4шт.

12M7066

Lock Washer

10 mm

4шт.

11

AT215923

Hydraulic Hose

1шт.

12

AT215924

Hydraulic Hose

1шт.

15

AT216551

Hydraulic Hose

(SUB FOR AT216552 AND AT218 231 ) (ALSO ORDER TH106022)

1шт.

16

AT216551

Hydraulic Hose

(SUB FOR AT218231 AND AT216 552 ) (ALSO ORDER TH106022)

1шт.
