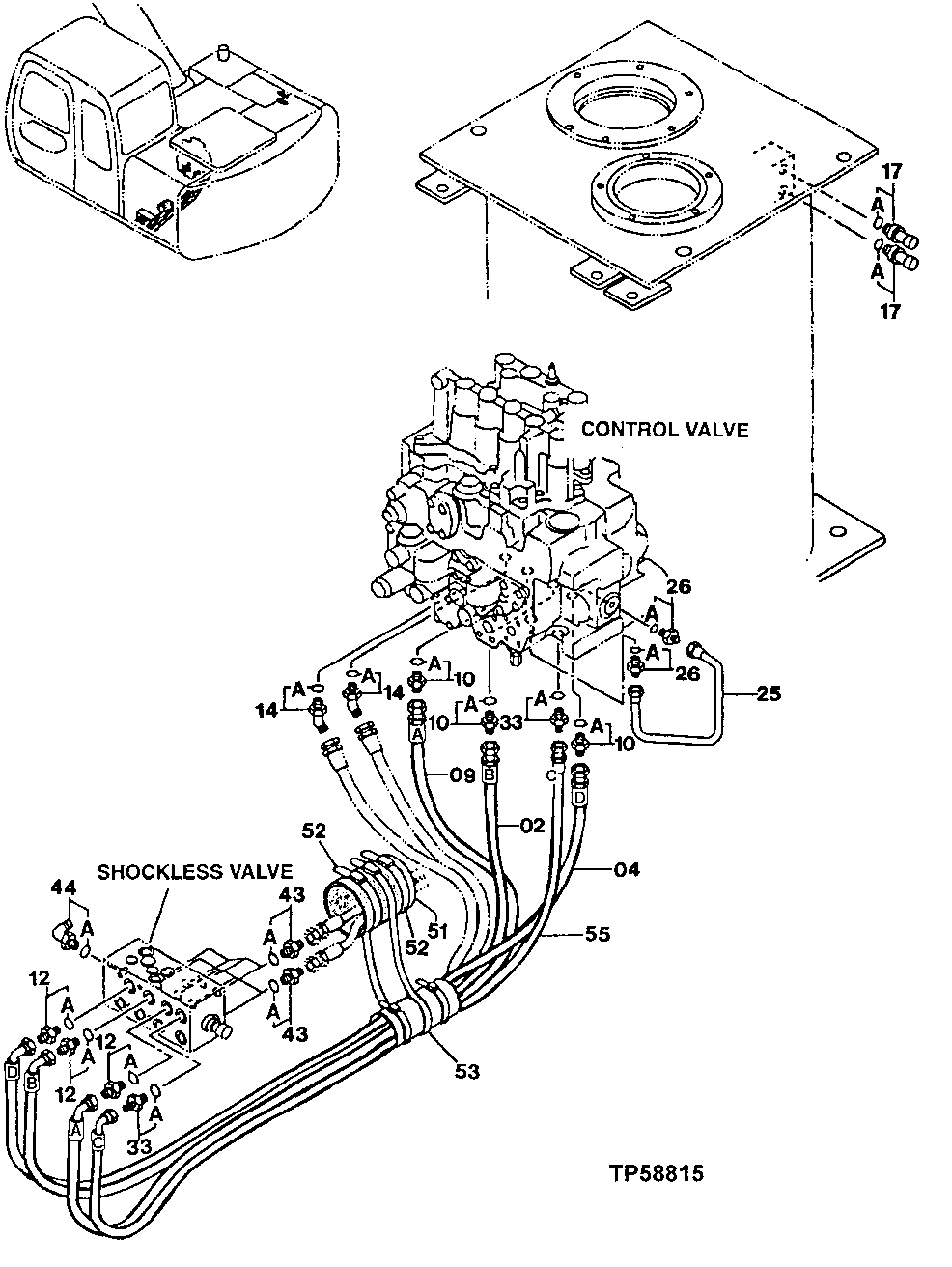

Запчасти John Deere 20 339 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

2

P61617

Hydraulic Hose

1шт.

4

P61619

Hydraulic Hose

1шт.

9

P61622

Hydraulic Hose

1шт.

10

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

4332040

Sensor

(SUB FOR AT213840)(FRONT AND REA R PUMP CONTROL PRESSURE SENSORS)

2шт.

17A

M800650

Packing

1шт.

25

P61788

Pipe

1шт.

26

4255305

Fitting

(SUB FOR AT213809)

2шт.

26A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

4200468

Adapter Fitting

(SUB FOR AT126336)

2шт.

33A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

43

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

43A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

44

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

44A

M800650

Packing

1шт.

51

P61745

Cover

1шт.

52

H77698

Tie Band

2шт.

53

M86436

Tie Band

1шт.

55

P61645

Hydraulic Hose

1шт.
