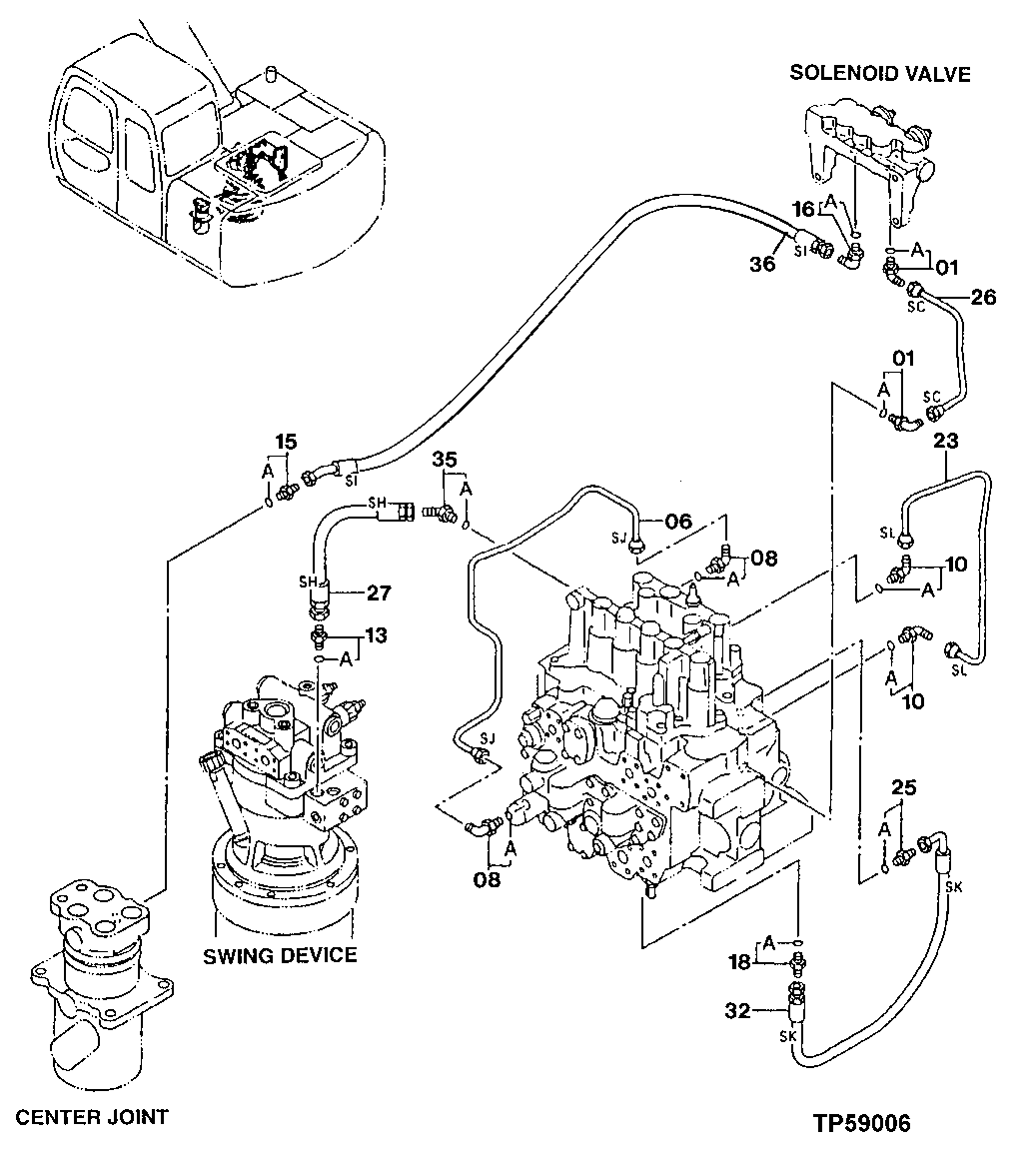

Запчасти John Deere 20 337 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4293950

Fitting

(SUB FOR AT160584)

2шт.

1A

M800650

Packing

1шт.

6

P60496

Pipe

1шт.

8

4293950

Fitting

(SUB FOR AT160584)

2шт.

8A

M800650

Packing

1шт.

10

4293950

Fitting

(SUB FOR AT160584)

2шт.

10A

M800650

Packing

1шт.

13

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

13A

M800650

Packing

1шт.

15

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

15A

M800650

Packing

1шт.

16

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

16A

M800650

Packing

1шт.

18

4200468

Adapter Fitting

(SUB FOR AT126336)

1шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

23

P61627

Pipe

1шт.

25

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

25A

M800650

Packing

1шт.

26

4348612

Line

(SUB FOR P61621)

1шт.

27

P61618

Hydraulic Hose

1шт.

32

P61828

Hydraulic Hose

1шт.

35

4193826

Elbow Fitting

(SUB FOR TH106467)

1шт.

35A

M800650

Packing

1шт.

36

AP34030

Hydraulic Hose

1шт.
