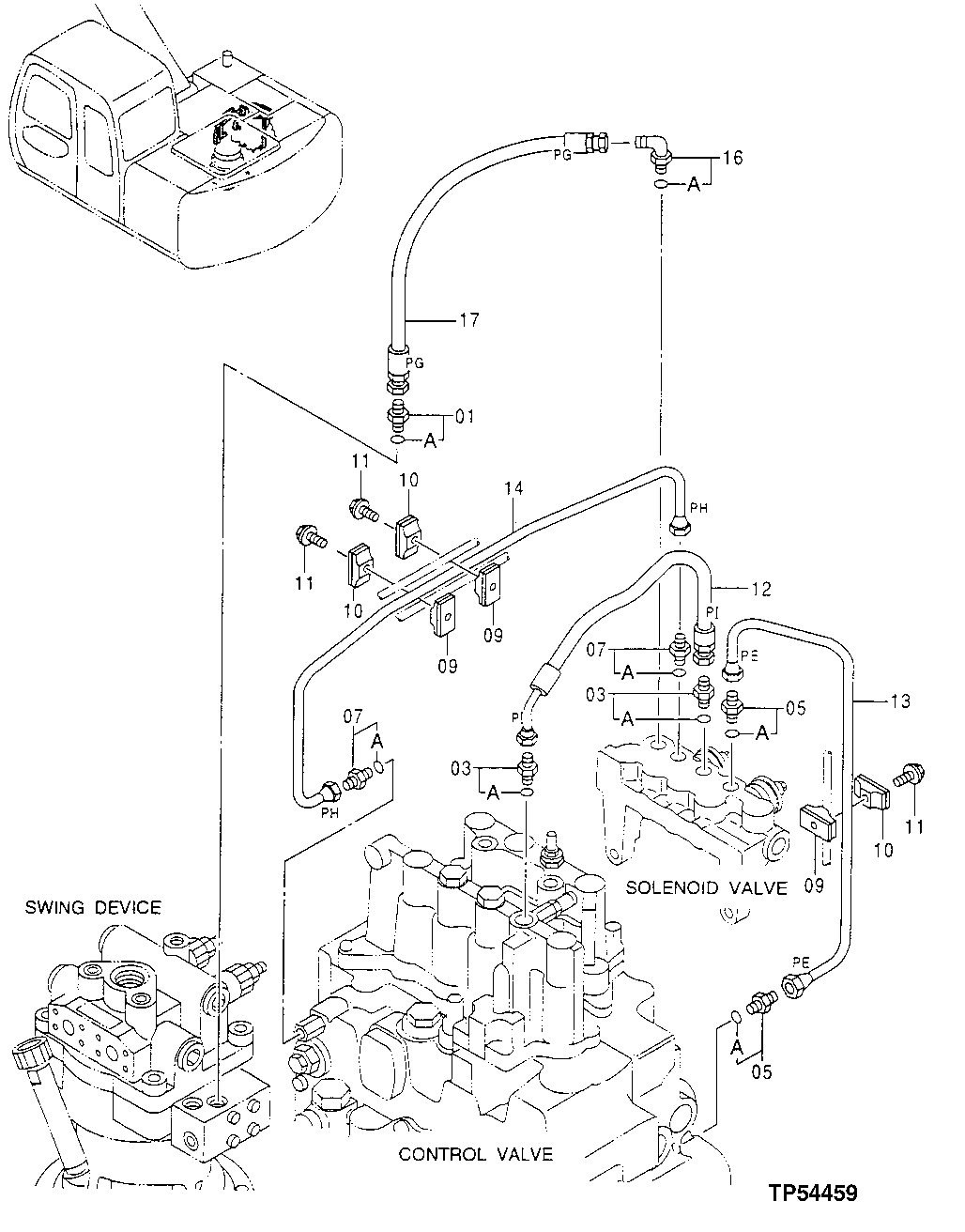

Запчасти John Deere 20 335 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4200465

Adapter Fitting

SUB FOR TH108328

1шт.

1A

M800650

Packing

1шт.

3

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

3A

M800650

Packing

1шт.

5

4255304

Fitting

SUB FOR AT155270

2шт.

5A

M800650

Packing

1шт.

7

4255304

Fitting

SUB FOR AT155270

2шт.

7A

M800650

Packing

1шт.

9

9735305

Clamp

SUB FOR AP33637

3шт.

10

9735306

Clamp

SUB FOR AP33638

3шт.

11

Washer

12M7065 NLA

3шт.

19M7407

Cap Screw

M8 X 25

3шт.

12

P63337

Hydraulic Hose

1шт.

13

P61624

Pipe

1шт.

14

P61625

Pipe

1шт.

16

4154670

Elbow Fitting

SUB FOR TH100951

1шт.

16A

M800650

Packing

1шт.

17

P61637

Hydraulic Hose

1шт.
