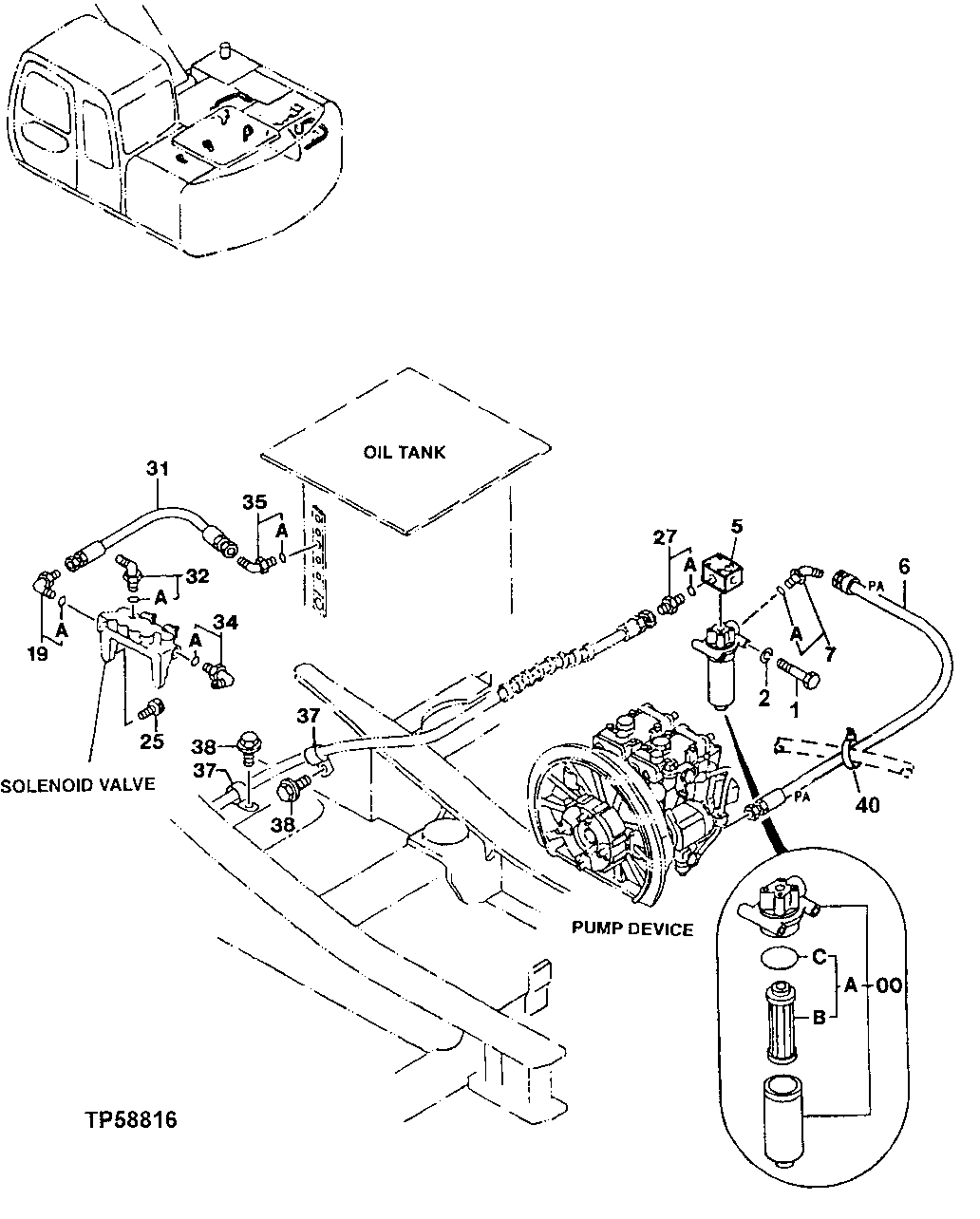

Запчасти John Deere 20 334 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4330227

Filter Head

(SUB FOR AT213834)

1шт.

0A

AT186554

Filter Element

(SUB FOR AT214263)

1шт.

0B

Filter

1шт.

0C

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

1

19M8343

Cap Screw

M10 X 120

2шт.

2

12M7066

Lock Washer

10 mm

2шт.

5

4351142

Pressure Relief Valve

(SUB FOR AT213955)

1шт.

6

P64273

Hydraulic Hose

1шт.

7

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

7A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

19

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

25

19M7576

Screw

M10 X 30 (SUB FOR AT213614 OR J781030)

2шт.

27

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

27A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

31

P61632

Hydraulic Hose

1шт.

32

4200472

Elbow Fitting

(SUB FOR TH111301)

1шт.

32A

M800650

Packing

1шт.

34

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

34A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

35

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

35A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

37

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

2шт.

38

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

40

4356526

Clamp

(SUB FOR P61811)

1шт.
