Запчасти John Deere 20 331 - Flow Control Valve 3360 HYDRAULIC SYSTEM

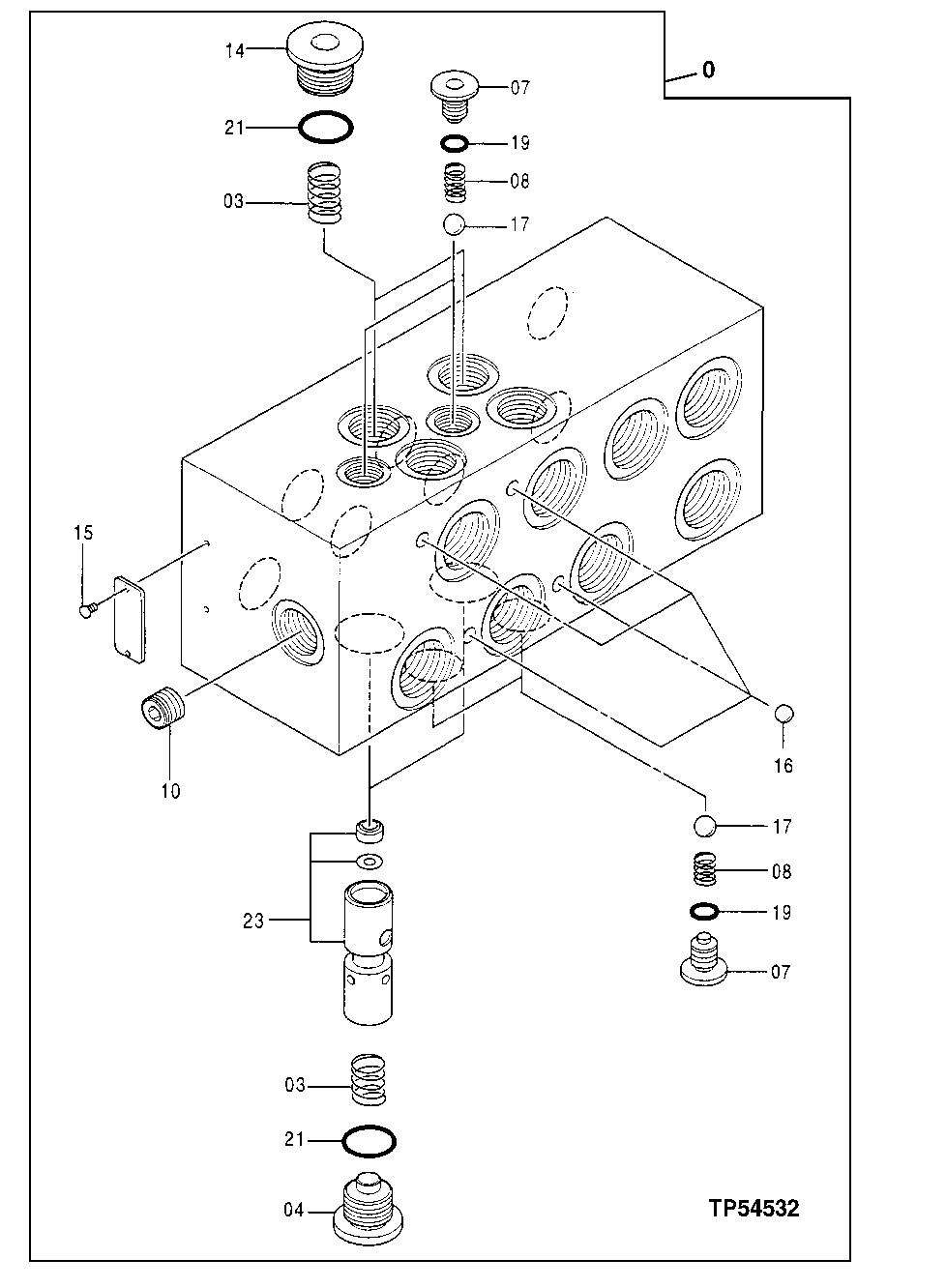

Схема запчастей John Deere 20 - 331 - Flow Control Valve 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4367131

Hyd Actuated Control Valve

FLOW (STANDARD) (SUB FOR AP34033)

1шт.

4371949

Hyd Actuated Control Valve

FLOW (WITH ANTI-RUST PREV ENTION) (SUB FOR AP35561)

1шт.

3

0309801

Spring

(SUB FOR TH109280)

4шт.

4

0309802

Pipe Plug

(SUB FOR TH109281)

2шт.

7

0614204

Fitting Plug

(SUB FOR AT204861)

4шт.

8

0614207

Compression Spring

(SUB FOR AT204788)

4шт.

10

0669201

Orifice

(SUB FOR AT213708)

1шт.

14

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

2шт.

15

0208717

Screw

(SUB FOR TH102697)

2шт.

16

L38718

Ball

6 mm (0.236")

4шт.

17

F740009D

Ball

7.137 mm (9/32") (SUB F OR AT204789 OR 0614208)

4шт.

19

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

4шт.

21

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

4шт.

23

0352401

Plunger

(SUB FOR AT132273)

2шт.

Выбрано товаров: 14
