Запчасти John Deere 20 324 - Control Valve 3360 HYDRAULIC SYSTEM

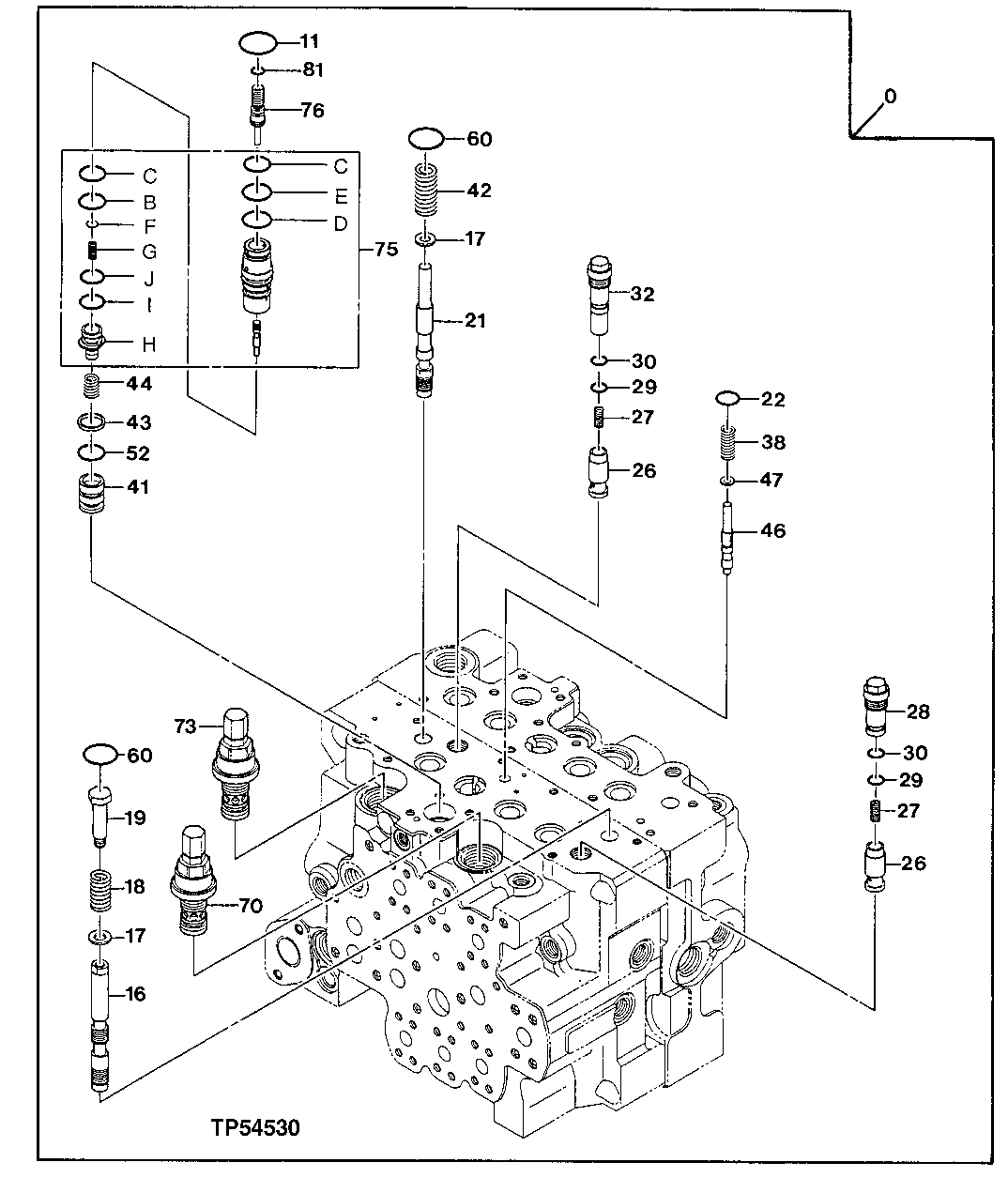

Схема запчастей John Deere 20 - 324 - Control Valve 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

9199517

Flow Control Hyd. Valve

ADDITIONAL COMPONENTS LISTED ON PREVIO US AND FOLLOWING PAGES SUB FOR AP33463

1шт.

11

0309402

O-Ring

29.700 X 2.400 mm (1.169" X 3/32") SUB FOR TH109141

1шт.

16

0670302

Spool Valve

SUB FOR AT215813

1шт.

17

0670303

Washer

SUB FOR AT215814

2шт.

18

0670304

Spring

SUB FOR AT215815

1шт.

19

0670305

Screw

SUB FOR AT215816

1шт.

21

0670306

Spool Valve

SUB FOR AT215817

1шт.

22

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

26

2046393

Check Valve

SUB FOR AT215781

2шт.

27

0309413

Spring

SUB FOR TH109152

2шт.

28

0669902

Fitting Plug

SUB FOR AT215782

1шт.

29

CH10568

Packing

2шт.

30

2046494

Back-Up Ring

SUB FOR TH109155 OR 0309416

2шт.

32

0670301

Fitting Plug

SUB FOR AT215812

1шт.

38

0670310

Spring

SUB FOR AT215821

1шт.

41

0670101

Valve

SUB FOR AT215796

1шт.

42

0670307

Spring

SUB FOR AT215818

1шт.

43

0412211

Back-Up Ring

SUB FOR AT154025

1шт.

44

0412212

Spring

SUB FOR AT154026

1шт.

46

0670308

Spool Valve

SUB FOR AT215819

1шт.

47

0670309

Washer

SUB FOR AT215820

1шт.

52

4366521

O-Ring

SUB FOR TH109041, 4153098 OR 0818008 THIS APPLICATION

1шт.

60

0393902

O-Ring

SUB FOR AT215662

2шт.

70

4372684

Pressure Relief Valve

SUB FOR AT215978, BUCKET DUMP

1шт.

73

4372683

Pressure Relief Valve

SUB FOR AT215977, BOOM UP

1шт.

75

4372678

Housing

SUB FOR AT215974

1шт.

75B

0670103

Back-Up Ring

SUB FOR AT215798

1шт.

75C

CH12329

Packing

2шт.

75D

0976602

O-Ring

SUB FOR TH103574, AT264354 OR 4S00734

1шт.

75E

0670104

Back-Up Ring

SUB FOR AT215799

1шт.

75F

0670105

Washer

SUB FOR AT215800

1шт.

75G

0670106

Spring

SUB FOR AT215801

1шт.

75H

0670107

Fitting Plug

SUB FOR AT215802

1шт.

75I

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

75J

4297661

Back-Up Ring

SUB FOR AT215881

1шт.

76

0670312

Screw

SUB FOR AT215823

1шт.

81

CH11569

Packing

1шт.

Выбрано товаров: 37
