Запчасти John Deere 20 321 - Control Valve 3360 HYDRAULIC SYSTEM

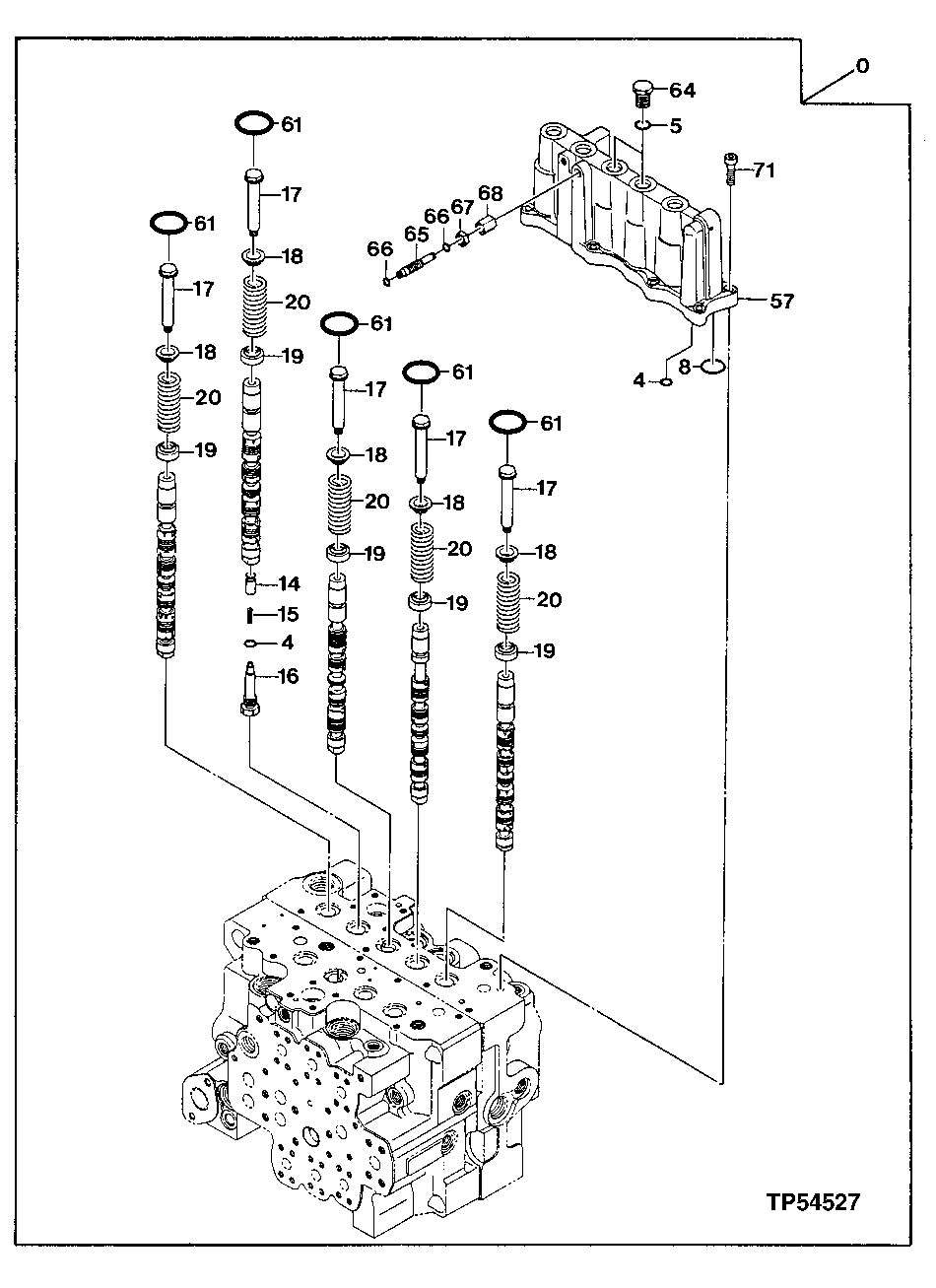

Схема запчастей John Deere 20 - 321 - Control Valve 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

9199517

Flow Control Hyd. Valve

(ADDITIONAL COMPONENTS LISTED ON PREVIOU S AND FOLLOWING PAGES) (SUB FOR AP33463)

1шт.

4

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

2шт.

5

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

8

0411901

O-Ring

23.300 X 2.400 mm (0.917" X 3/32") (SUB FOR AT153977)

1шт.

14

0412015

Valve

(SUB FOR AT154006)

1шт.

15

0412016

Spring

(SUB FOR AT154007)

1шт.

16

0670001

Fitting Plug

(SUB FOR AT215787)

1шт.

17

0670002

Screw

(SUB FOR AT215788)

5шт.

18

0670003

Valve Seat

(SUB FOR AT215789)

5шт.

19

0670004

Valve Seat

(SUB FOR AT215790)

5шт.

20

0670005

Spring

(SUB FOR AT215791)

5шт.

57

0670006

Housing

(SUB FOR AT215792)

1шт.

61

0411803

O-Ring

35.200 X 2.400 mm (1.386" X 3/32") (SUB FOR AT153963)

5шт.

64

0332914

Drain Plug

(SUB FOR TH110315)

2шт.

65

0670007

Line

(SUB FOR AT215793)

1шт.

66

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") (SUB FOR TH102655)

2шт.

67

0670008

Nut

(SUB FOR AT215794)

1шт.

68

0670009

Nut

(SUB FOR AT215795)

1шт.

71

19M8735

Screw

M8 X 30

10шт.

Выбрано товаров: 19
