Запчасти John Deere 20 320 - Control Valve 3360 HYDRAULIC SYSTEM

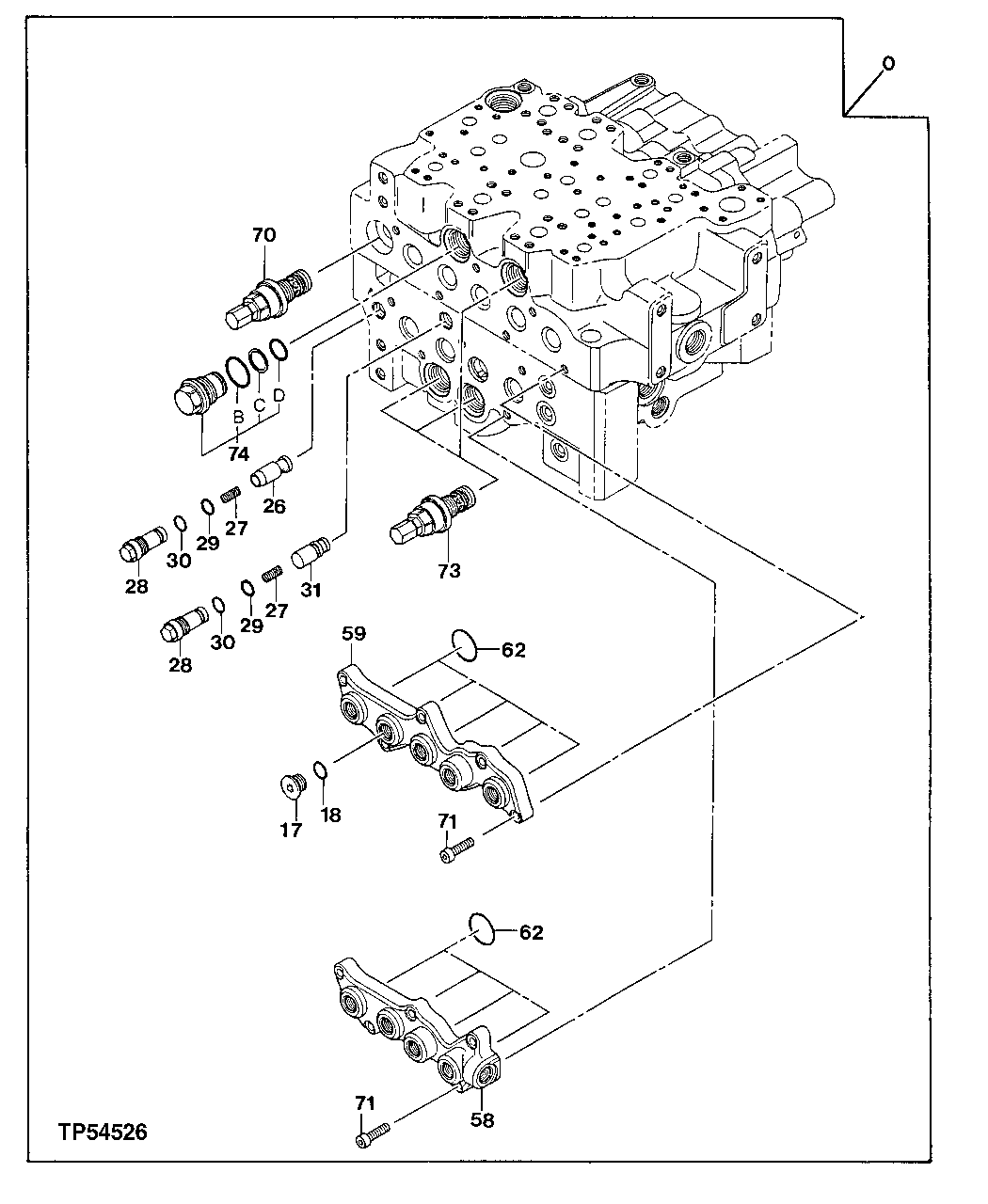

Схема запчастей John Deere 20 - 320 - Control Valve 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

9199517

Flow Control Hyd. Valve

ADDITIONAL COMPONENTS LISTED ON PREVIO US AND FOLLOWING PAGES SUB FOR AP33463

1шт.

17

0669504

Fitting Plug

SUB FOR AT215739

1шт.

18

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

2046393

Check Valve

SUB FOR AT215781

1шт.

27

0309413

Spring

SUB FOR TH109152

2шт.

28

0669902

Fitting Plug

SUB FOR AT215782

2шт.

29

CH10568

Packing

2шт.

30

2046494

Back-Up Ring

SUB FOR TH109155 OR 0309416

2шт.

31

0669903

Flow Control Hyd. Valve

SUB FOR AT215783

1шт.

58

0669904

Housing

SUB FOR AT215784

1шт.

59

0669905

Housing

SUB FOR AT215785

1шт.

62

2046491

O-Ring

SUB FOR AT215786 OR 0669906

9шт.

70

4372682

Pressure Relief Valve

SUB FOR AT215976, SYSTEM RELIEF

1шт.

71

19M8735

Screw

M8 X 30

11шт.

73

4372683

Pressure Relief Valve

SUB FOR AT215977, BUCKET CURL, ARM IN, BOOM DOWN

3шт.

74

0309461

Plug

SUB FOR TH109201

1шт.

74B

AT264347

O-Ring

SUB FOR TH100136 OR 4506428

1шт.

74C

4027959

Back-Up Ring

SUB FOR TH100771

1шт.

74D

CH12329

Packing

1шт.

Выбрано товаров: 19
