Запчасти John Deere 20 311 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

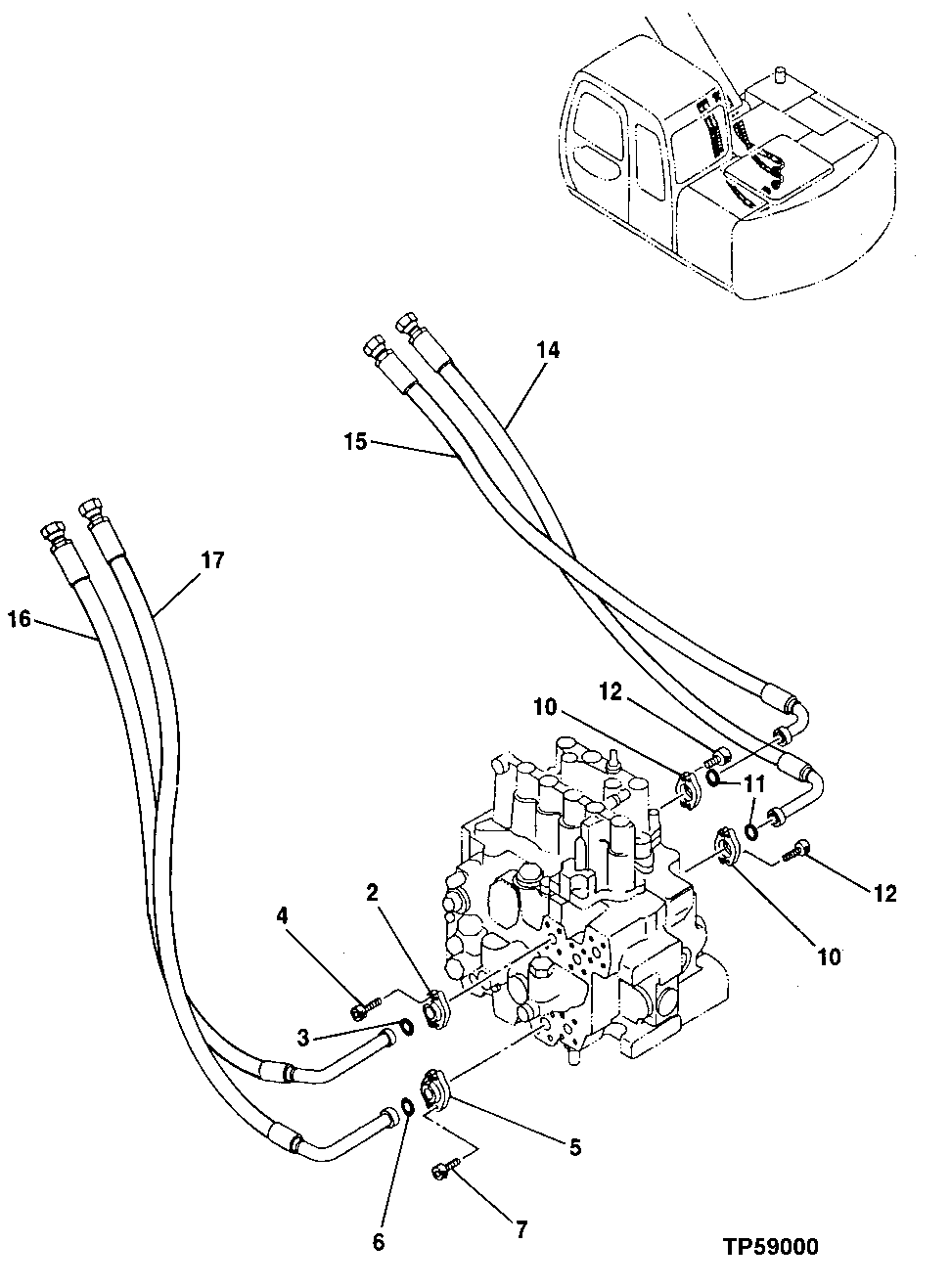

Схема запчастей John Deere 20 - 311 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

2

4510173

Fitting

(SUB FOR TH108341)

2шт.

3

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

1шт.

4

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

5

R29424

Flange Fitting

2шт.

6

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

7

19M7576

Screw

M10 X 30 (SUB FOR AT213614 OR J781030)

4шт.

10

4510173

Fitting

(SUB FOR TH108341)

4шт.

11

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

2шт.

12

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

8шт.

14

4334301

Hydraulic Hose

1шт.

15

4332830

Hydraulic Hose

9149508 NLA, ALSO ORDER (2) XHG -075 CTL (SUB FOR P61784, P61779)

1шт.

16

4332827

Hydraulic Hose

9149507 NLA, ALSO ORDER (2) XHG-075 CTL, (SUB FOR P61778)

1шт.

17

4455222

Hydraulic Hose

4357774 NLA, ALSO ORDER (2) XHG-075 CTL, SUB FOR P61635

1шт.

18

Hose Guard

4327294 NLA, MF XHG-0 75 CTL Not Illustrated

2шт.

Выбрано товаров: 14
