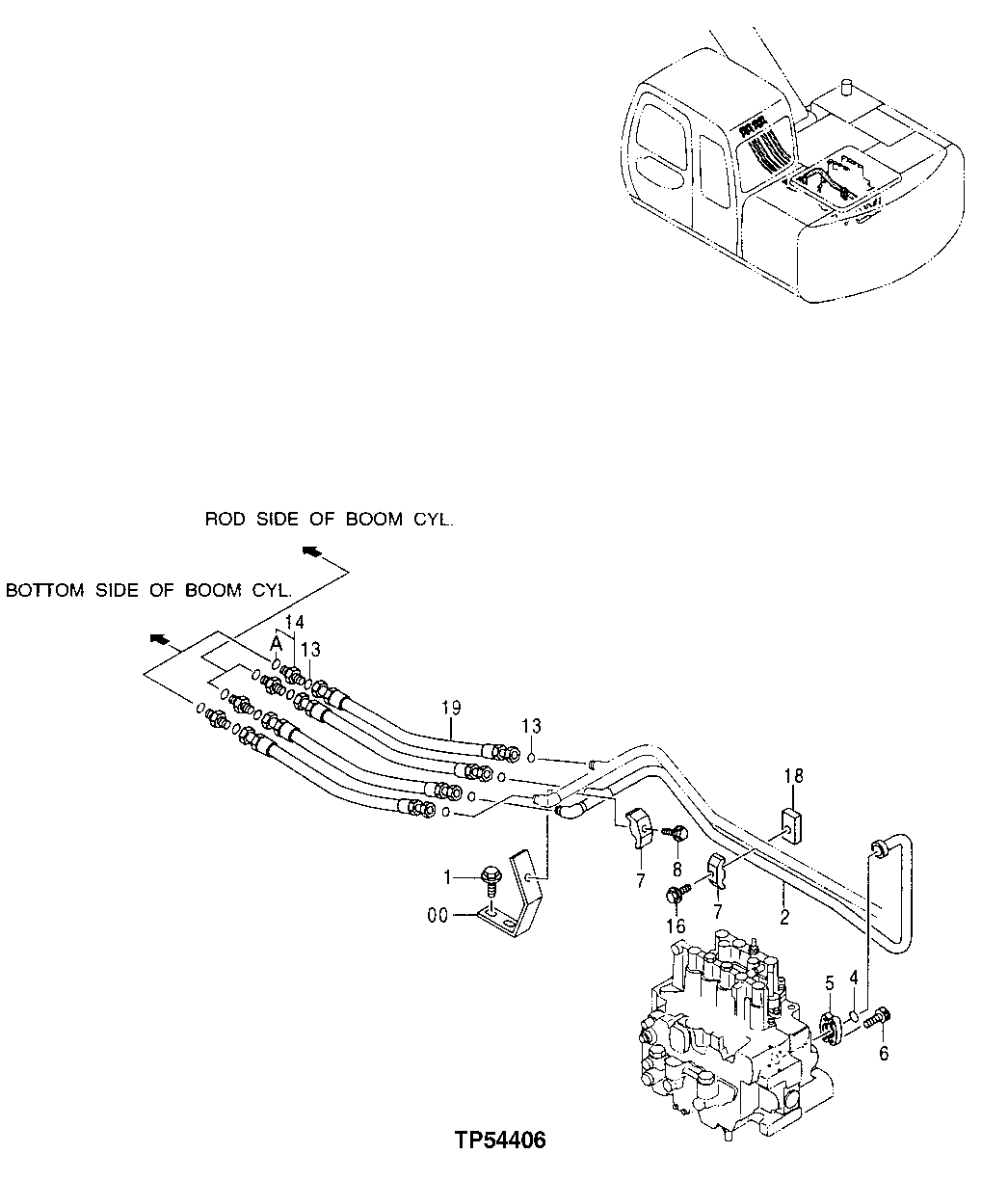

Запчасти John Deere 20 310 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

9737118

Support

(SUB FOR AT154547)

1шт.

1

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

2

8060350

Line

(SUB FOR AP33432)

1шт.

4

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

1шт.

5

4510173

Fitting

(SUB FOR TH108341)

2шт.

6

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

7

4189858

Clamp

(SUB FOR TH108333)

2шт.

8

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.

13

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

8шт.

14

4189602

Fitting

(SUB FOR TH108350)

4шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

19M7361

Cap Screw

M12 X 50

1шт.

12H301

Lock Washer

1/2"

1шт.

18

4369262

Manifold

(SUB FOR P61833)

1шт.

19

AT155624

Hydraulic Hose

4шт.
