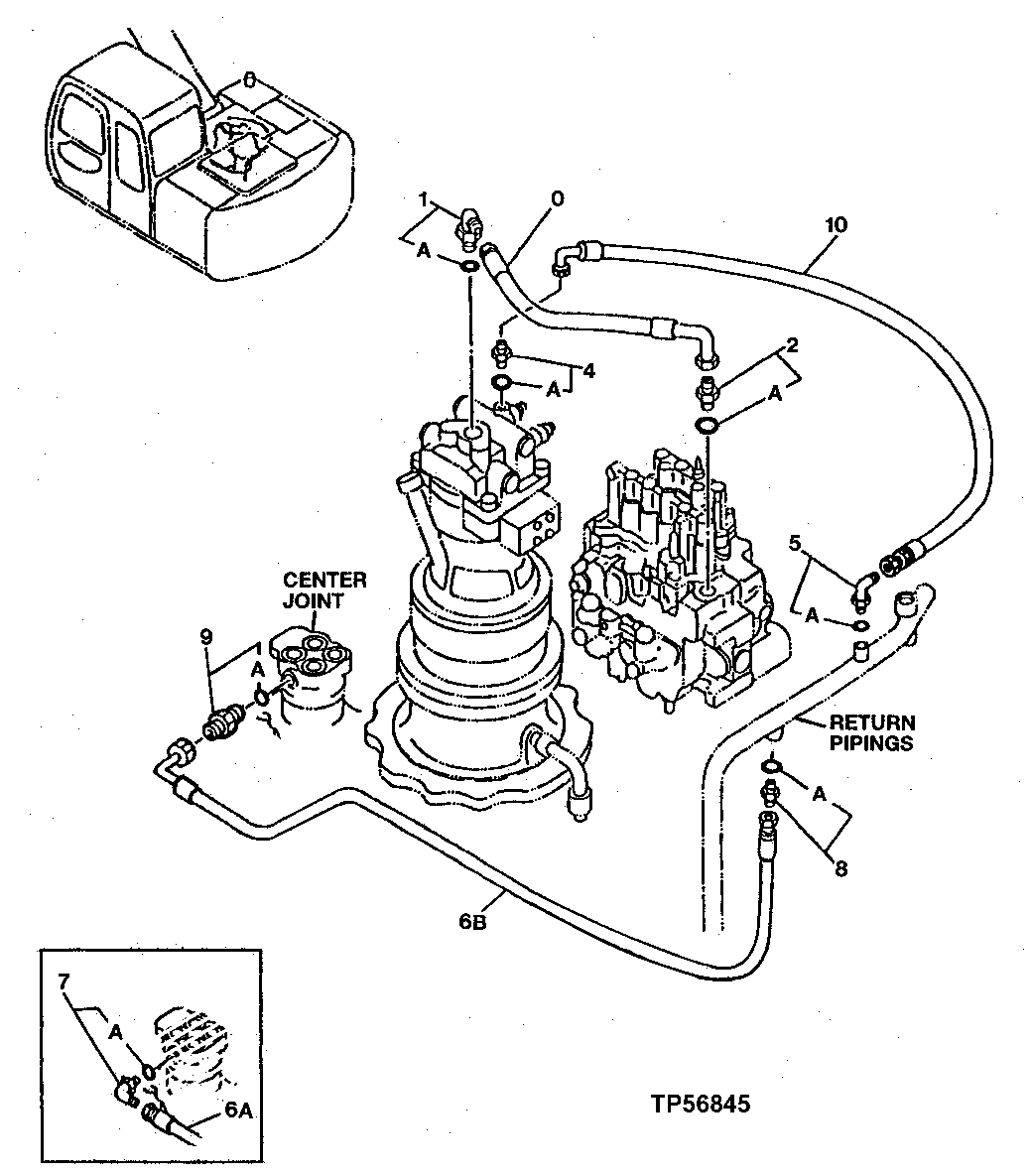

Запчасти John Deere 20 309 - DRAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

P61616

Hydraulic Hose

1шт.

1

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

2

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6A

Hydraulic Hose - Fabricate

( P61793 NO LONGER AVAILABLE ) (SUB AP35710 AND AT131902)

1шт.

6B

AP35710

Hydraulic Hose

(USE WITH AT131902)

1шт.

7

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

9

4221290

Adapter Fitting

(USE WITH AP35710 ) (SUB FOR AT131902)

1шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

P61629

Hydraulic Hose

1шт.
