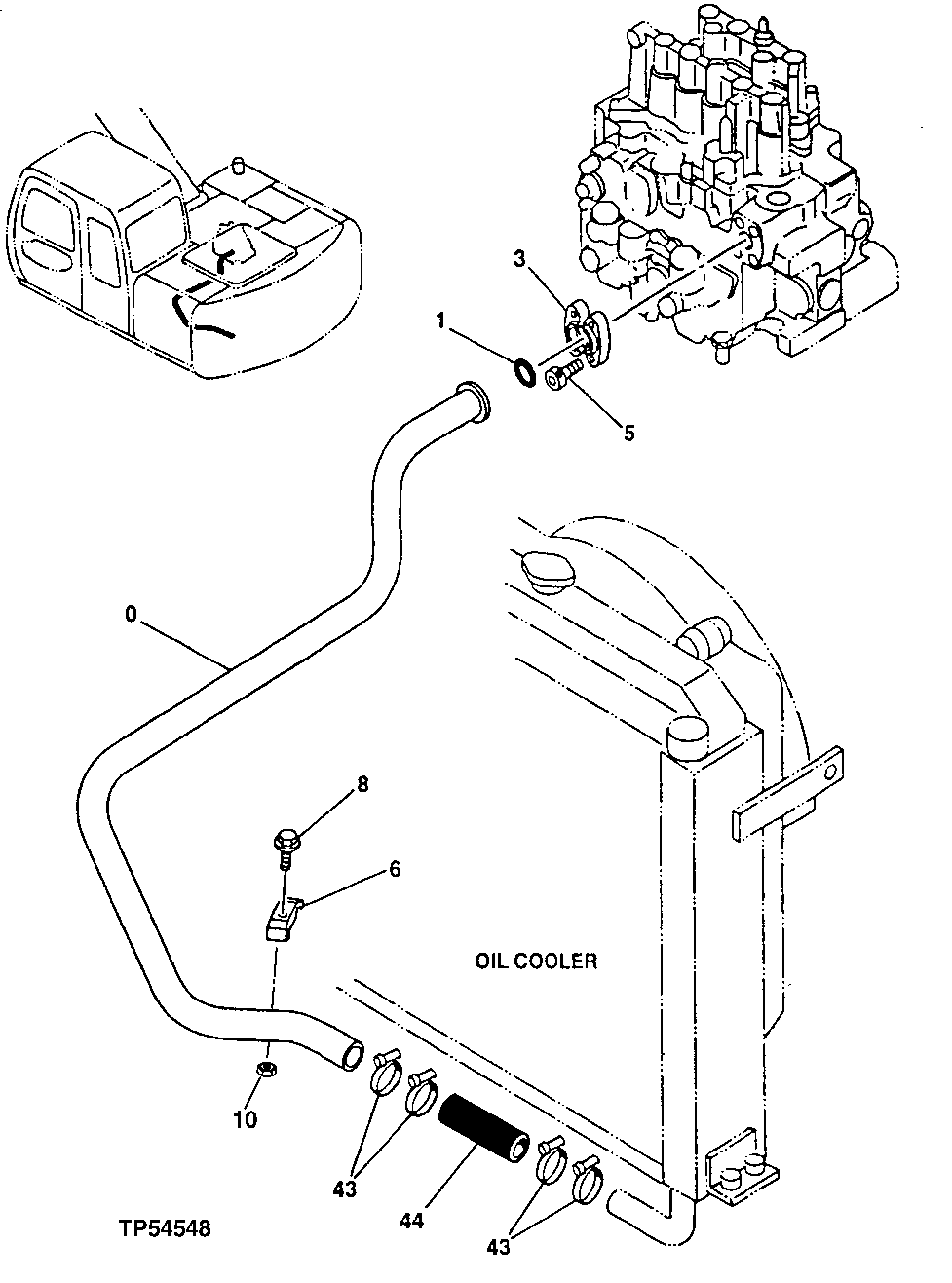

Запчасти John Deere 20 308 - RETURN PIPINGS 3360 HYDRAULIC SYSTEM

0

AP33431

Pipe

1шт.

1

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

3

H61354

Flange Fitting

2шт.

5

19M7576

Screw

M10 X 30 (SUB FOR AT213614 OR J781030)

4шт.

6

4190127

Clamp

(SUB FOR TH108313)

1шт.

8

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

10

14M7299

Flange Nut

M12 (SUB FOR 14M7443, THIS APPLICATION)

1шт.

43

AT54837

Clamp

4шт.

44

P60796

Hose

1шт.
